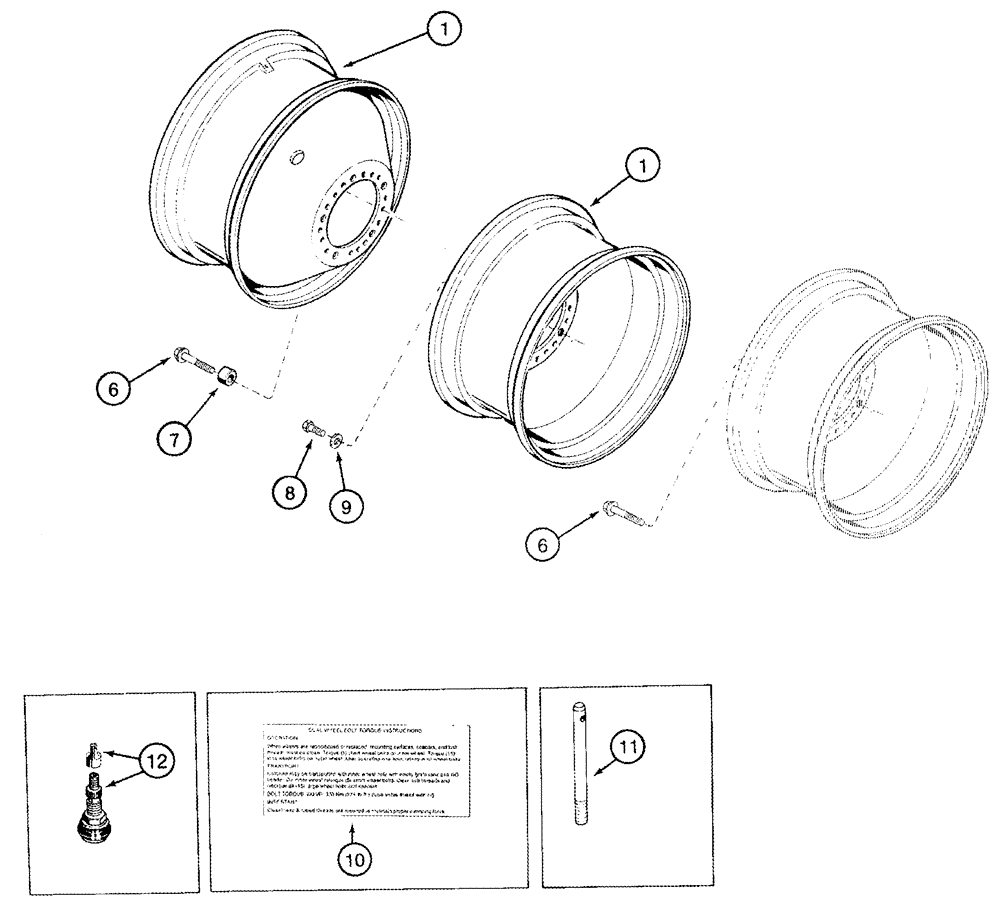

Запчасти Case IH 2388 (06-30) - WHEELS - DRIVE- DUAL (03) - POWER TRAIN

1

184352C2

WHEEL

18.4 x 38" Tire

4шт.

1

184458C2

WHEEL

18.4 x 42" Tire

4шт.

1

129948A1

WHEEL

20.8 x 38" Tire

4шт.

1

184456C2

WHEEL

20.8 x 42" Tire

4шт.

1

356461A1

WHEEL

46 x W12" Tire

4шт.

2

417194C1

PLUG

Used with Tubeless Tires, Not Illustrated

4шт.

2

383697R1

PLUG

Used with Tube Type Tires, Not Illustrated

4шт.

5

407184R1

VALVE

Core, Used with Tubeless Tires, Not Illustrated

4шт.

6

130934A1

FLANGE BOLT,Hex, M20 x 1.5 x 90mm, Cl 10.9

M20 x 90; 10.9, Serial Range: -JJC0268799

1шт.

6

130934A2

BOLT

M20 x 90; 10.9, Serial Range: JJC0270499-JJC0268800

1шт.

6

427373A1

BOLT

M20 x 85; 10.9, Start Serial: JJC0270500

1шт.

6

370293A1

BOLT

M20 x 95; 10.9, Serial Range: -JJC0268799

1шт.

6

370293A2

BOLT

M20 x 95; 10.9, Start Serial: JJC0268800

1шт.

6

429856A1

BOLT

M20 x 95, Start Serial: JJC0270500

1шт.

Used with 356461A1, Ref. 1

1шт.

7

130871A2

SPACER

, Serial Range: -JJC0268799

1шт.

7

130871A3

SPACER

, Start Serial: JJC0268800

1шт.

7

370223A1

SPACER

Axle Extension, 1-5/16" ID x 1"

2шт.

Models with Narrow Dual Wheels

1шт.

8

514-1211

BOLT,Hex, M20 x 1.5 x 45mm, Cl 10.9

No Longer Used, Order 130934A1

1шт.

8

430666A1

BOLT

M20 x 45; 10.9

1шт.

Models with Narrow Dual Wheels

1шт.

9

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

22 x 34 x 3,4 mm, If Used

1шт.

9

396-31131

WASHER,1 3/8" x 2 1/2" x 1/4", HDN

2шт.

Models with Narrow Dual Wheels

1шт.

10

135786A2

DECAL

Dual Wheel Bolt Torque, Serial Range: -JJC0270499

2шт.

10

448670A1

DECAL

Bolt Torque, Dual Wheel, See Figure 09H-25 (02), Start Serial: JJC0270500

1шт.

11

131443A1

BOLT,M20 x 1.5 x 210mm, Cl 8.8

Drive Wheel Starter

2шт.

12

179482C1

VALVE STEM

7/16" dia, Used with Tubeless Tires, If Used

2шт.
