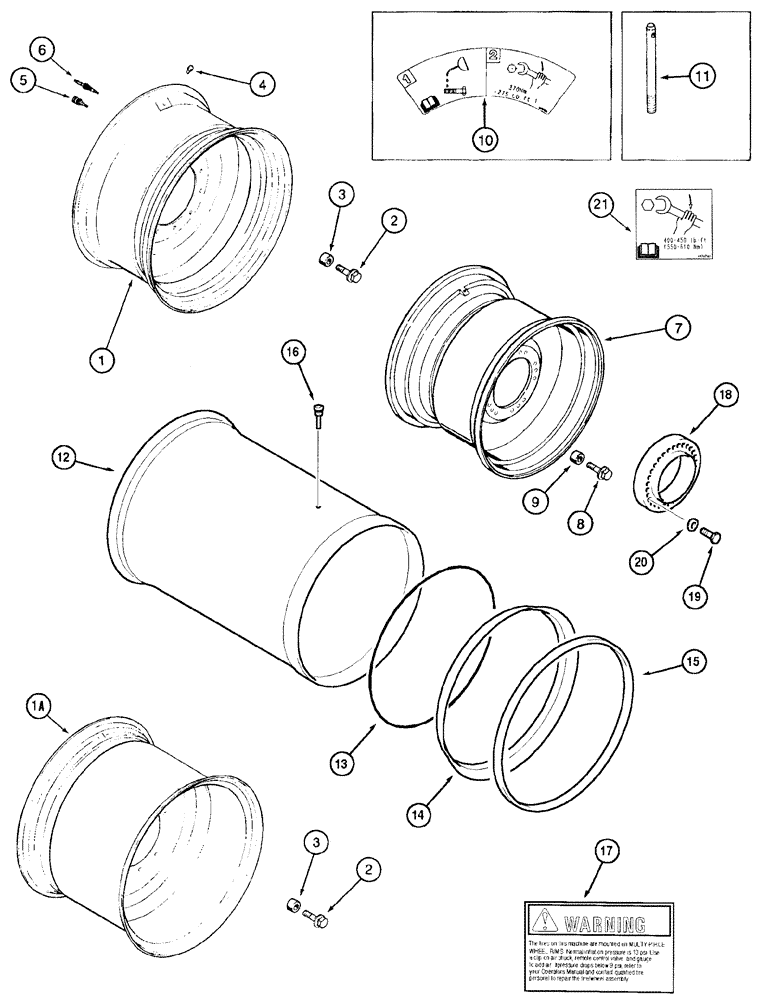

Запчасти Case IH 2388 (06-29) - WHEELS - DRIVE - SINGLE (03) - POWER TRAIN

1

184482C4

WHEEL

Used with Bias 24.5 x 32" Tire

2шт.

With 10 Bolt Mounting

1шт.

1

87411121

WHEEL

24.5 x 32" Tire

2шт.

With 10 Bolt Mounting

1шт.

1a

184480C4

WHEEL

Used with Bias 30.5L x 32" Tire

2шт.

With 10 Bolt Mounting

1шт.

1a

87406489

WHEEL

800/54- R32 Tire

2шт.

With 10 Bolt Mounting

1шт.

2

130965A1

FLANGE BOLT,Hex, M20 x 1.5 x 70mm, Cl 10.9

M20 x 70; 10.9, Wheel Mounting, Serial Range: -JJC0268799

20шт.

2

130965A2

BOLT

M20 x 70; 10.9, Wheel Mounting, Serial Range: JJC0270499-JJC026880

20шт.

2

427374A1

BOLT

Flange, M20 x 70, Start Serial: JJC0270500

20шт.

3

130871A2

SPACER

, Serial Range: -JJC0268799

20шт.

3

130871A3

SPACER

JJC0268800 to

20шт.

4

417194C1

PLUG

Used with Tubeless Tires, If Used

2шт.

4

359846A1

PLUG

Used with Tubeless Tires, If Used

2шт.

4

383697R1

PLUG

Used with Tube Type Tires

2шт.

5

179482C1

VALVE STEM

7/16" dia, Used with Tubeless Tires

2шт.

6

407184R1

VALVE

Core, Used with Tubeless Tires

2шт.

7

132694A1

RIM

WHEEL 35.5L x 32" Tube Type Tire

2шт.

8

130965A1

FLANGE BOLT,Hex, M20 x 1.5 x 70mm, Cl 10.9

M20 x 70; 10.9, Wheel Mounting, Serial Range: -JJC0268799

1шт.

8

130965A2

BOLT

M20 x 70; 10.9, Wheel Mounting, Serial Range: JJC0270499-JJC0268800

1шт.

8

427374A1

BOLT

Flange, M20 x 70, Start Serial: JJC0270500

1шт.

8

427373A1

BOLT

M20 x 85; 10.9

1шт.

8

430666A1

BOLT

M20 x 45; 10.9

1шт.

9

130871A2

SPACER

, Serial Range: -JJC0268799

1шт.

9

130871A3

SPACER

, Start Serial: JJC0268800

1шт.

10

135780A2

DECAL

Bolt Torque, Single Drive Wheel, See Figure 09H-25 (01), Serial Range: -JJC0270499

2шт.

11

131443A1

BOLT,M20 x 1.5 x 210mm, Cl 8.8

Drive Wheel Starter

2шт.

12

237825A2

WHEEL

68 x 50 in, 16pr hf3 Hi-Flotation Tire

2шт.

13

184473C1

O-RING,7mm Thk x 757mm ID, 65 Duro

2шт.

14

237824A1

BACK-UP RING

Side Wheel

2шт.

15

184472C1

RING

Lock

2шт.

16

1984006C2

VALVE STEM

Used with Tubeless Tires

2шт.

17

REF

INSTRUCTION

Decal, Warning, Multi Piece Rims, See Figure 09H-23 Ref. 15

4шт.

18

135171A1

SPACER

76 mm

2шт.

19

514-1224

BOLT,Hex, M20 x 1.5 x 125mm, Cl 10.9

20шт.

20

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

22 x 34 x 3.4 mm

20шт.

21

403425A1

DECAL

Bolt Torque, Single Drive Wheel, See Figure 09H-25 (02), Start Serial: JJC0270500

2шт.
