Запчасти Case IH 2388 (06-15) - MOTOR ASSY - HYDROSTATIC - SINGLE SPEED ASN JJC0268991 (03) - POWER TRAIN

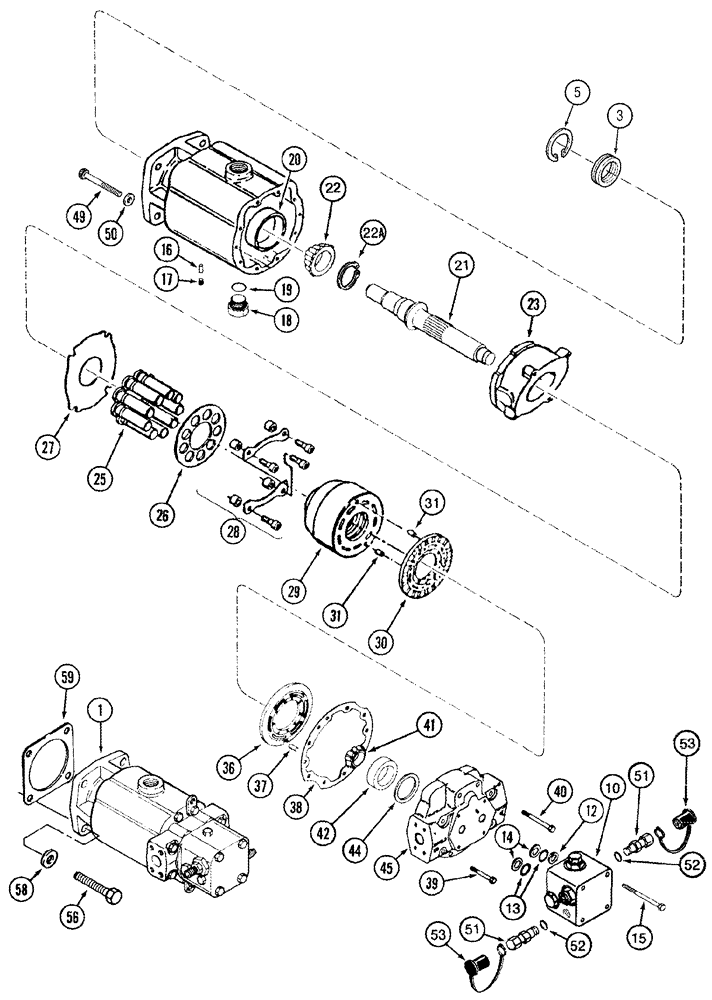

Схема запчастей Case IH 2388 - (06-15) - MOTOR ASSY - HYDROSTATIC - SINGLE SPEED ASN JJC0268991 (03) - POWER TRAIN
29
25
51
21
3
1
39
51
23
20
45
16
53
53
10
42
28
37
58
22
22a
49
52
36
52
56
41
27
26
38
13
31
5
19
18
17
15
44
30
14
50
59
12
40
31

Артикул

Название

Примечание

Количество

1

400475A2

HYDROSTATIC MOTOR,89.13CC

Includes 2 - 53, Part Number Stamped On Part

1шт.

1

400475A2R

REMAN-HYD MOTOR

Hydrostatic

1шт.

1

400475A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

403145A1

SEAL

Shaft, Includes 3, 5

1шт.

3

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

100-21250

SNAP RING,2.50", Int, #250

1шт.

10

193646A2

BLOCK

Relief Valve, See Figure 06-16

1шт.

140747C92

SEAL KIT

Seal, Valve Block, Includes 12 - 14

1шт.

12

239-5018

O-RING,Square, 0.062" Thk x 0.75" ID, -18, Cl 5, 75 Duro

1шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

14

631458C1

RING

2шт.

15

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

16

37-1516

DOWEL,5/16" x 1"

1шт.

17

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

18

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

ST863

BEARING CUP,93.22mm OD x 23.81mm W

1шт.

21

403147A1

SHAFT

Includes 22, 22A

1шт.

22

NSS

NOT SOLD SEPARAT

Bearing, Cone

1шт.

22a

NSS

NOT SOLD SEPARAT

No. 200, Ring, Retaining

1шт.

23

NSS

NOT SOLD SEPARAT

Plate

1шт.

25

NSS

NOT SOLD SEPARAT

Piston

9шт.

26

NSS

NOT SOLD SEPARAT

Plate

1шт.

27

NSS

NOT SOLD SEPARAT

Plate

1шт.

28

NSS

NOT SOLD SEPARAT

Kit

1шт.

29

NSS

NOT SOLD SEPARAT

Barrel

1шт.

30

NSS

NOT SOLD SEPARAT

Plate

1шт.

31

37-1510

DOWEL,5/16" x 5/8"

2шт.

36

NSS

NOT SOLD SEPARAT

Plate, Valve

1шт.

37

37-1510

DOWEL,5/16" x 5/8"

3шт.

38

1980140C1

GASKET,0.38mm Thk

1шт.

39

326-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

2шт.

40

326-748

BOLT,Hex, 7/16" - 14 x 3", Gr 8

6шт.

41

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

1-3/16" ID

1шт.

42

530741R1

BEARING CUP

2-17/32" OD

1шт.

142398C91

SHIM KIT

Includes 44

1шт.

44

NSS

NOT SOLD SEPARAT

.003", Shim

1шт.

44

NSS

NOT SOLD SEPARAT

.005", Shim

1шт.

44

NSS

NOT SOLD SEPARAT

.010", Shim

1шт.

44

NSS

NOT SOLD SEPARAT

.015", Shim

1шт.

44

NSS

NOT SOLD SEPARAT

.020", Shim

1шт.

44

NSS

NOT SOLD SEPARAT

.030", Shim

1шт.

45

NSS

NOT SOLD SEPARAT

Cover

1шт.

49

61-33148

HEX SOC SCREW,5/16"-18 x 3"

2шт.

50

92734C1

SEALING WASHER

2шт.

51

R55912

NIPPLE

2шт.

52

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

53

H434163

DUST CAP

2шт.

56

628-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

58

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

59

166506C1

GASKET,0.81mm Thk

1шт.

Выбрано товаров: 51
