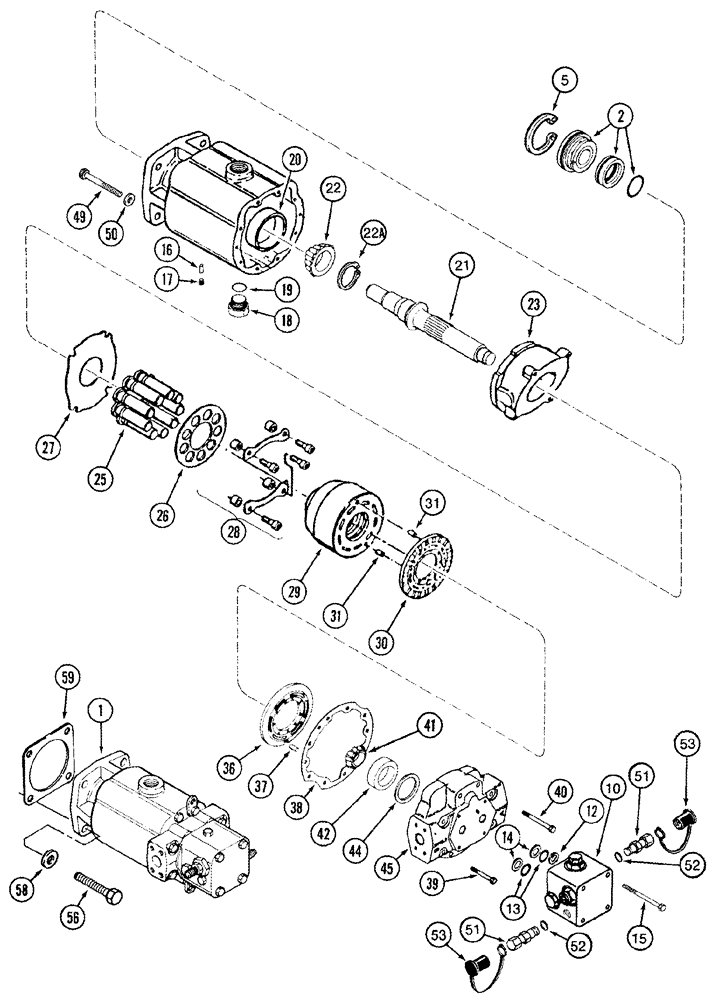

Запчасти Case IH 2388 (06-14) - MOTOR ASSY - HYDROSTATIC - SINGLE SPEED BSN JJC0268990 (03) - POWER TRAIN

1

183296A2

MOTOR, HYDRAULIC

Includes 2 - 53, Part Number Stamped On Part

1шт.

1

183296A2R

REMAN-HYD MOTOR

2388 CASE IH AXIAL-FLOW COMBINE (NA) BSN JJC0276540, BSN JJC0268990 (1/98-8/04)

1шт.

1

183296A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

1346205C1

SEAL KIT

Seal, Shaft, Four-Piece, Includes 238-5145, 238-5131

1шт.

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

1шт.

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1шт.

5

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

1шт.

10

193646A2

BLOCK

Relief Valve, See Figure 06-16

1шт.

140747C92

SEAL KIT

Seal, Valve Block, Includes 12 - 14

1шт.

12

239-5018

O-RING,Square, 0.062" Thk x 0.75" ID, -18, Cl 5, 75 Duro

1шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

14

631458C1

RING

2шт.

15

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

16

37-1516

DOWEL,5/16" x 1"

1шт.

17

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

18

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

ST863

BEARING CUP,93.22mm OD x 23.81mm W

1шт.

21

1980137C1

SHAFT

Includes 22, 22A

1шт.

22

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

1шт.

22a

101-11200

SNAP RING,#200, 1.880", Ext

1шт.

23

NSS

NOT SOLD SEPARAT

Plate

1шт.

1980138C1

KIT

Rotating Cylinder, Includes 25 - 31

1шт.

25

NSS

NOT SOLD SEPARAT

Piston

9шт.

26

NSS

NOT SOLD SEPARAT

Plate

1шт.

27

NSS

NOT SOLD SEPARAT

Plate

1шт.

28

NSS

NOT SOLD SEPARAT

Kit

1шт.

29

NSS

NOT SOLD SEPARAT

Barrel

1шт.

30

NSS

NOT SOLD SEPARAT

Plate

1шт.

31

37-1510

DOWEL,5/16" x 5/8"

2шт.

36

1980139C1

PLATE

1шт.

37

37-1510

DOWEL,5/16" x 5/8"

3шт.

38

1980140C1

GASKET,0.38mm Thk

1шт.

39

326-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

2шт.

40

24855R1

BOLT,Hex, 7/16" - 14 x 3", Gr 8

6шт.

41

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

1-3/16" ID

1шт.

42

530741R1

BEARING CUP

2-17/32" OD

1шт.

142398C91

SHIM KIT

Includes 44

1шт.

44

NSS

NOT SOLD SEPARAT

.003", Shim

1шт.

44

NSS

NOT SOLD SEPARAT

.005", Shim

1шт.

44

NSS

NOT SOLD SEPARAT

.010", Shim

1шт.

44

NSS

NOT SOLD SEPARAT

.015", Shim

1шт.

44

NSS

NOT SOLD SEPARAT

.020", Shim

1шт.

44

NSS

NOT SOLD SEPARAT

.030", Shim

1шт.

45

NSS

NOT SOLD SEPARAT

Cover

1шт.

49

61-33148

HEX SOC SCREW,5/16"-18 x 3"

2шт.

50

92734C1

SEALING WASHER

2шт.

51

R55912

NIPPLE

2шт.

52

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

53

H434163

DUST CAP

2шт.

56

628-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

58

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

59

166506C1

GASKET,0.81mm Thk

1шт.
