Запчасти Case IH 2388 (06-10) - PUMP ASSY - HYDROSTATIC, CORN AND GRAIN COMBINE ASN JJC0268956, RICE COMBINE ASN JJC0269250 (03) - POWER TRAIN

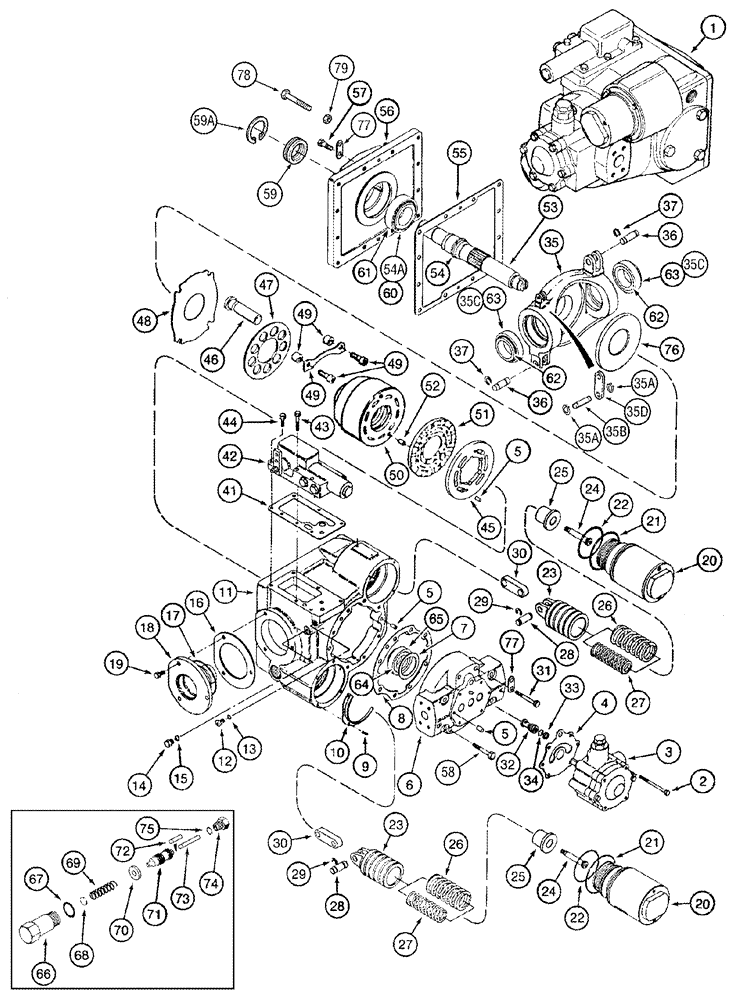

Схема запчастей Case IH 2388 - (06-10) - PUMP ASSY - HYDROSTATIC, CORN AND GRAIN COMBINE ASN JJC0268956, RICE COMBINE ASN JJC0269250 (03) - POWER TRAIN
54
36
77
49
23
63
20
57
71
15
74
78
50
24
37
13
35c
29
28
51
7
10
54a
47
27
69
36
35c
25
61
5
5
42
26
4
27
3
68
5
21
76
33
20
26
16
9
79
70
73
66
43
49
58
48
11
35a
28
77
22
6
53
64
49
62
75
35a
32
1
56
17
37
25
31
8
44
21
45
52
12
60
46
65
62
35
59
14
67
30
30
18
72
34
41
22
35d
24
55
2
29
35b
23
59a
63

Артикул

Название

Примечание

Количество

1

400478A1

HYDROSTATIC PUMP

Hydrostatic, 105.4 cc, Includes 2 - 79, Includes Figure(s) 06-03, 06-04

1шт.

Corn and Grain Combine

1шт.

1

87637528R

REMAN-HYDROSTAT PUMP

Corn and Grain Combine

1шт.

1

87637528C

CORE-HYDROSTAT PUMP

Return Part Number

1шт.

1

400479A1

HYDROSTATIC PUMP

Hydrostatic, 105.4 cc, Includes 2 - 79, Includes Figure 06-04

1шт.

Rice Combine

1шт.

1

87637529R

REMAN-HYDROSTAT PUMP

Rice Combine

1шт.

1

87637529C

CORE-HYDROSTAT PUMP

Return Part Number

1шт.

2

413-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

1шт.

Corn and Grain Combine

1шт.

2

413-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

4шт.

Rice Combine

1шт.

3

92740C2

PUMP

Charge, See Figure(s) 06-10, 06-12

1шт.

Corn and Grain Combine

1шт.

3

107593A2

PUMP

Charge, See Figure(s) 06-10, 06-13

1шт.

Rice Combine

1шт.

4

133760C2

GASKET

1шт.

5

37-1510

DOWEL,5/16" x 5/8"

5шт.

6

NSS

NOT SOLD SEPARAT

Cover, End Cover

1шт.

142398C91

SHIM KIT

End Cover, Includes 7

1шт.

7

NSS

NOT SOLD SEPARAT

.003", Shim

1шт.

7

NSS

NOT SOLD SEPARAT

.005", Shim

1шт.

7

NSS

NOT SOLD SEPARAT

.010", Shim

1шт.

7

NSS

NOT SOLD SEPARAT

.015", Shim

1шт.

7

NSS

NOT SOLD SEPARAT

.020", Shim

1шт.

7

NSS

NOT SOLD SEPARAT

.030", Shim

1шт.

8

92741C2

GASKET,0.38mm Thk

1шт.

9

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

6шт.

10

142408C1

RETAINER

Servo Piston

2шт.

11

NSS

NOT SOLD SEPARAT

Housing, Pump

1шт.

12

278548

PLUG,Hex, 7/16"-20 ORB

Incl 13

1шт.

13

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

14

9672438

PLUG,7/16" - 20 ORB

Incl. 15

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

142386C91

SHIM KIT

Trunnion Bearing, Includes 16

1шт.

16

NSS

NOT SOLD SEPARAT

.002", Shim

6шт.

16

NSS

NOT SOLD SEPARAT

.005", Shim

4шт.

16

NSS

NOT SOLD SEPARAT

.010", Shim

4шт.

16

NSS

NOT SOLD SEPARAT

.015", Shim

4шт.

16

NSS

NOT SOLD SEPARAT

.025", Shim

4шт.

17

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

18

NSS

NOT SOLD SEPARAT

Trunnion, Pump

2шт.

19

413-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

6шт.

20

NSS

NOT SOLD SEPARAT

Sleeve Assy, Servo

2шт.

21

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

2шт.

22

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

23

NSS

NOT SOLD SEPARAT

Piston Assy, Servo

2шт.

24

NSS

NOT SOLD SEPARAT

Screw

1шт.

25

NSS

NOT SOLD SEPARAT

Retainer

1шт.

26

NSS

NOT SOLD SEPARAT

Spring

1шт.

27

NSS

NOT SOLD SEPARAT

Spring

1шт.

28

NSS

NOT SOLD SEPARAT

Pin

1шт.

29

100-1375

SNAP RING,#75, Ext

2шт.

30

NSS

NOT SOLD SEPARAT

Link

1шт.

31

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

6шт.

32

140769C1

CHECK VALVE

Includes 33, 34

2шт.

33

140770C1

RING

1шт.

34

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

35

NSS

NOT SOLD SEPARAT

Plate, Swash

1шт.

35a

100-1125

SNAP RING,#25, Ext

2шт.

35b

140765C1

PIN

1шт.

35c

NSS

NOT SOLD SEPARAT

Bearing, Cup

2шт.

35d

NSS

NOT SOLD SEPARAT

Link

1шт.

36

140766C1

PIN,14.22mm OD x 39.12mm L

2шт.

37

100-1356

SNAP RING,#56, Ext

4шт.

41

133756C1

GASKET

1шт.

42

191065A1

CONTROL VALVE

See Figure 06-11

1шт.

43

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

44

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

45

NSS

NOT SOLD SEPARAT

Plate, Valve

1шт.

46

NSS

NOT SOLD SEPARAT

Piston

9шт.

47

NSS

NOT SOLD SEPARAT

Plate

1шт.

48

NSS

NOT SOLD SEPARAT

Plate

1шт.

49

NSS

NOT SOLD SEPARAT

Kit

1шт.

50

NSS

NOT SOLD SEPARAT

Barrel

1шт.

51

NSS

NOT SOLD SEPARAT

Plate

1шт.

52

37-1510

DOWEL,5/16" x 5/8"

7шт.

53

403149A1

SHAFT

Includes 54, 54A

1шт.

54

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

54a

NSS

NOT SOLD SEPARAT

Bearing, Cone

1шт.

55

142399C1

GASKET

1шт.

56

NSS

NOT SOLD SEPARAT

Flange, Mounting

1шт.

57

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

12шт.

58

426-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

2шт.

59

403145A1

SEAL

Shaft

1шт.

59a

100-21250

SNAP RING,2.50", Int, #250

1шт.

60

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

1шт.

61

ST863

BEARING CUP,93.22mm OD x 23.81mm W

1шт.

62

NSS

NOT SOLD SEPARAT

Bearing, Cone

2шт.

63

NSS

NOT SOLD SEPARAT

Bearing, Cup

2шт.

64

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

1-3/16" ID

1шт.

65

530741R1

BEARING CUP

2-17/32" OD

1шт.

1986739C1

REPAIR KIT

Spool Repair, Internal Pressure Override, Includes 66 - 75

1шт.

Rice Combine

1шт.

66

NSS

NOT SOLD SEPARAT

Body

1шт.

67

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

68

235419A1

SHIM KIT

1шт.

69

NSS

NOT SOLD SEPARAT

Spring

1шт.

70

NSS

NOT SOLD SEPARAT

Spacer

1шт.

71

NSS

NOT SOLD SEPARAT

Spool

1шт.

72

NSS

NOT SOLD SEPARAT

Roller

1шт.

73

NSS

NOT SOLD SEPARAT

Roller

1шт.

74

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

Includes 75

1шт.

75

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

76

NSS

NOT SOLD SEPARAT

Plate, Thrust

1шт.

77

NSS

NOT SOLD SEPARAT

Strap, Shipping, Shown For Reference Only

2шт.

78

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

79

329-288

FLANGE NUT,Flg, 1/2"-13, G8

4шт.

Выбрано товаров: 108
