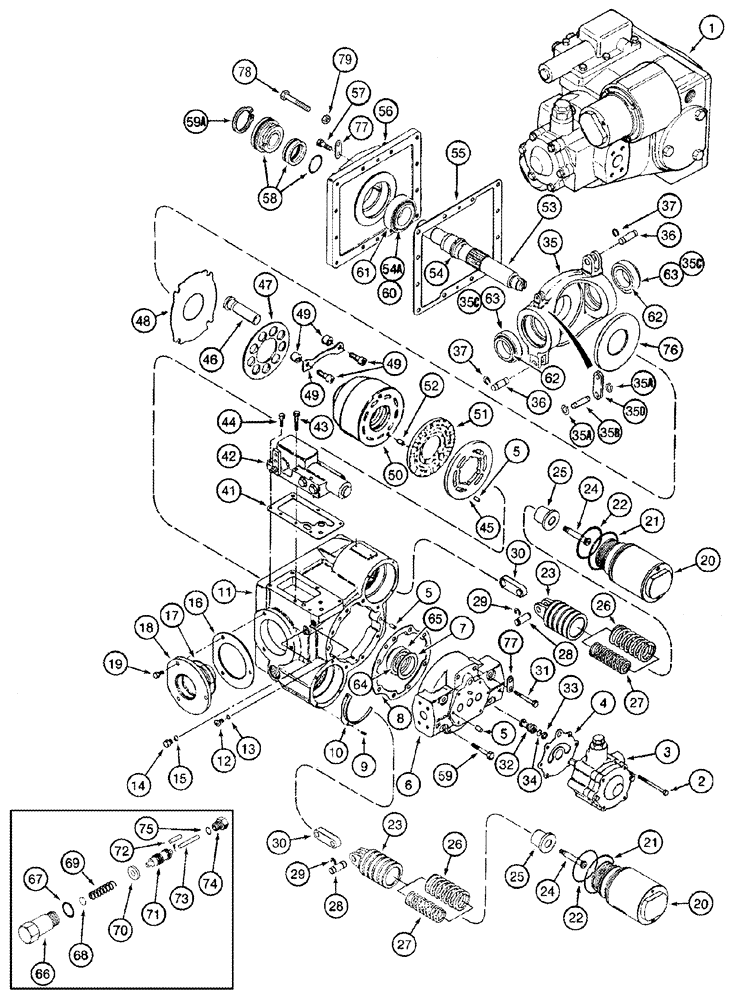

Запчасти Case IH 2388 (06-09) - PUMP ASSY - HYDROSTATIC, CORN AND GRAIN COMBINE BSN JJC0268955, RICE COMBINE BSN JJC0269249 (03) - POWER TRAIN

1

1343716C4

PUMP, HYDROSTATIC

HYDROSTATIC PUMP Includes 2 - 79, Includes Figure(s) 06-03, 06-04

1шт.

Corn and Grain Combine

1шт.

1

87637528R

REMAN-HYDROSTAT PUMP

Corn and Grain Combine

1шт.

1

87637528C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1

108113A3

PUMP, HYDROSTATIC

HYDROSTATIC PUMP Includes 2 - 79, Includes Figure 06-04

1шт.

Rice Combine

1шт.

1

87637529R

REMAN-HYDROSTAT PUMP

Rice Combine

1шт.

1

87637529C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

4шт.

3

92740C2

PUMP

Charge, See Figure(s) 06-10, 06-12

1шт.

Corn and Grain Combine

1шт.

3

107593A2

PUMP

Charge, See Figure(s) 06-10, 06-13

1шт.

Rice Combine

1шт.

4

133760C2

GASKET

Charge Pump

1шт.

5

140754C1

PIN

5/16" x 5/8"

5шт.

6

NSS

NOT SOLD SEPARAT

Cover, End Cover

1шт.

142398C91

SHIM KIT

End Cover, Includes 7

1шт.

7

NSS

NOT SOLD SEPARAT

.003", Shim

1шт.

7

NSS

NOT SOLD SEPARAT

.005", Shim

1шт.

7

NSS

NOT SOLD SEPARAT

.010", Shim

1шт.

7

NSS

NOT SOLD SEPARAT

.015", Shim

1шт.

7

NSS

NOT SOLD SEPARAT

.020", Shim

1шт.

7

NSS

NOT SOLD SEPARAT

.030", Shim

1шт.

8

92741C2

GASKET,0.38mm Thk

1шт.

9

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

6шт.

10

142408C1

RETAINER

Servo Piston

2шт.

11

NSS

NOT SOLD SEPARAT

Housing, Pump

1шт.

12

278548

PLUG,Hex, 7/16"-20 ORB

Incl 13

1шт.

13

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

14

9672438

PLUG,7/16" - 20 ORB

Incl. 15

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

142386C91

SHIM KIT

Trunnion Bearing, Includes 16

1шт.

16

NSS

NOT SOLD SEPARAT

.002", Shim

6шт.

16

NSS

NOT SOLD SEPARAT

.005", Shim

4шт.

16

NSS

NOT SOLD SEPARAT

.010", Shim

4шт.

16

NSS

NOT SOLD SEPARAT

.015", Shim

4шт.

16

NSS

NOT SOLD SEPARAT

.025", Shim

4шт.

17

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

18

NSS

NOT SOLD SEPARAT

Trunnion, Pump

2шт.

19

413-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

6шт.

20

142407C2

KIT

Servo, Includes 21, 22

2шт.

21

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

1шт.

22

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

23

224669C91

PISTON

Servo, Includes 24 - 30

2шт.

24

NSS

NOT SOLD SEPARAT

Screw

1шт.

25

NSS

NOT SOLD SEPARAT

Retainer

1шт.

26

NSS

NOT SOLD SEPARAT

Spring

1шт.

27

NSS

NOT SOLD SEPARAT

Spring

1шт.

28

NSS

NOT SOLD SEPARAT

Pin

1шт.

29

100-1375

SNAP RING,#75, Ext

2шт.

30

NSS

NOT SOLD SEPARAT

Link

1шт.

31

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

6шт.

32

140769C1

CHECK VALVE

Includes 33, 34

2шт.

33

140770C1

RING

1шт.

34

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

35

1980171C1

HOUSING

Includes 35A - 35C

1шт.

35a

100-1125

SNAP RING,#25, Ext

2шт.

35b

140765C1

PIN

1шт.

35c

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

2-7/8" OD

2шт.

35d

NSS

NOT SOLD SEPARAT

Link

1шт.

36

140766C1

PIN,14.22mm OD x 39.12mm L

2шт.

37

100-1356

SNAP RING,#56, Ext

4шт.

41

133756C1

GASKET

1шт.

42

191065A1

CONTROL VALVE

See Figure 06-11

1шт.

43

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

44

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

45

1346255C1

PLATE

Valve

1шт.

1346254C1

KIT

Includes 46 - 52

1шт.

46

NSS

NOT SOLD SEPARAT

Piston

9шт.

47

NSS

NOT SOLD SEPARAT

Plate

1шт.

48

NSS

NOT SOLD SEPARAT

Plate

1шт.

49

NSS

NOT SOLD SEPARAT

Kit

1шт.

50

NSS

NOT SOLD SEPARAT

Barrel

1шт.

51

NSS

NOT SOLD SEPARAT

Plate

1шт.

52

37-1510

DOWEL,5/16" x 5/8"

7шт.

53

1980169C1

SHAFT

Includes 54, 54A

1шт.

54

101-11200

SNAP RING,#200, 1.880", Ext

1шт.

54a

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

1шт.

55

142399C1

GASKET

1шт.

56

NSS

NOT SOLD SEPARAT

Flange, Mounting

1шт.

57

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

12шт.

58

1346205C1

SEAL KIT

Seal, Shaft, Four-Piece, Includes 238-5145, 238-5131

1шт.

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

1шт.

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1шт.

59

426-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

2шт.

59a

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

1шт.

60

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

1шт.

61

ST863

BEARING CUP,93.22mm OD x 23.81mm W

1шт.

62

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

1-25/32" ID

2шт.

63

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

2-7/8" OD

2шт.

64

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

1-3/16" ID

1шт.

65

530741R1

BEARING CUP

2-17/32" OD

1шт.

1986739C1

REPAIR KIT

Spool Repair, Internal Pressure Override, Includes 66 - 75

1шт.

Rice Combine

1шт.

66

NSS

NOT SOLD SEPARAT

Body

1шт.

67

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

68

NSS

NOT SOLD SEPARAT

Kit

1шт.

69

NSS

NOT SOLD SEPARAT

Spring

1шт.

70

NSS

NOT SOLD SEPARAT

Spacer

1шт.

71

NSS

NOT SOLD SEPARAT

Spool

1шт.

72

NSS

NOT SOLD SEPARAT

Roller

1шт.

73

NSS

NOT SOLD SEPARAT

Roller

1шт.

74

NSS

NOT SOLD SEPARAT

Plug, Includes 75

1шт.

75

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

76

80369C1

PLATE

1шт.

77

NSS

NOT SOLD SEPARAT

Strap, Shipping, Shown For Reference Only

2шт.

78

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

79

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2", 8

4шт.
