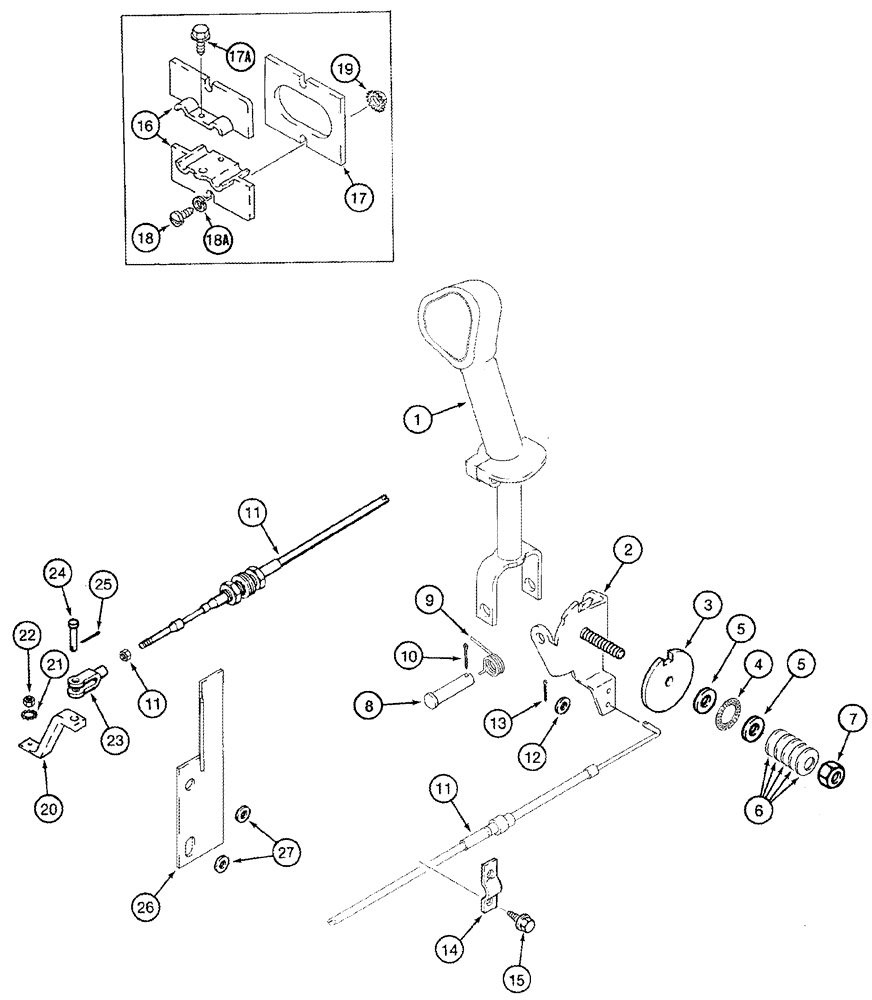

Запчасти Case IH 2388 (06-08) - CONTROLS - PROPULSION (03) - POWER TRAIN

1

113314A2

CONTROL LEVER

Propulsion, See Figure 04-07

1шт.

2

113318A2

SUPPORT

1шт.

3

251090A1

THRUST WASHER

Wear

1шт.

4

159688R91

THRUST BEARING

1шт.

5

496-81010

WASHER

15/32" x 1" x 7/64"

2шт.

6

1994980C1

BELLEVILLE WASHER

6шт.

7

231-1447

NUT,7/16"-14, GB

1шт.

8

27-8343

CLEVIS PIN,12.7mm OD x 87.33mm L

1шт.

9

128593A1

SPRING

1шт.

10

432-816

COTTER PIN,1/8" x 1"

1шт.

11

115396A1

CABLE

Throttle and Propulsion

1шт.

12

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

13

432-48

COTTER PIN,1/16" x 1/2"

1шт.

14

A75815

CLAMP

1шт.

15

841-4410

SCREW,HWH, M4 x 10mm, Cl 4.8

2шт.

16

119314A1

CLAMP

Throttle and Propulsion, Serial Range: Cables-Cab

2шт.

17

119328A1

GASKET,5mm Thk

1шт.

17a

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

18

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

2шт.

18a

492-11010

LOCK WASHER,#10

2шт.

19

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

20

184433A1

LEVER

Control, Hydrostatic Pump

1шт.

21

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

22

425-105

NUT,5/16"-18, G5

1шт.

23

213-123

ADJUSTABLE CLEVIS,#10-32 x 1 9/16"

1шт.

24

427-3058

CLEVIS PIN,3/16" x .580"

1шт.

25

432-48

COTTER PIN,1/16" x 1/2"

1шт.

26

138479A2

SUPPORT

, Serial Range: Cable-Pump

1шт.

27

495-81009

WASHER,.469" x 1" x .120"

2шт.
