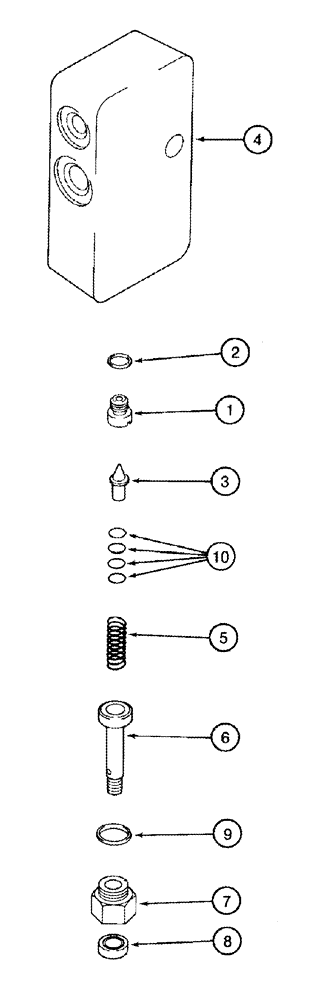

Запчасти Case IH 2388 (06-07) - VALVE ASSY - FOOT-N-INCH (03) - POWER TRAIN

123974A4

VALVE

Foot-N-Inch, 6000 psi, Includes 1 - 10

1шт.

Corn and Grain Combine

1шт.

296786A2

VALVE

Foot-N-Inch, 6500 psi, Includes 1 - 10

1шт.

Rice Combine

1шт.

1

123595A2

SEAT, VALVE

1шт.

2

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

3

398710R1

VALVE POPPET

1шт.

4

NSS

NOT SOLD SEPARAT

Housing

1шт.

5

539751R2

SPRING

1шт.

6

398708R1

STOP

1шт.

7

398707R1

GUIDE

1шт.

8

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

530575R91

SHIM KIT

Includes 10

1шт.

10

NSS

NOT SOLD SEPARAT

.005", Shim

4шт.

10

NSS

NOT SOLD SEPARAT

.007", Shim

4шт.

10

NSS

NOT SOLD SEPARAT

.020", Shim

2шт.

10

NSS

NOT SOLD SEPARAT

.042", Shim

1шт.
