Запчасти Case IH 2377 (06-02) - HYDROSTATICS - PUMP AND MOTOR - SINGLE SPEED MOTOR (03) - POWER TRAIN

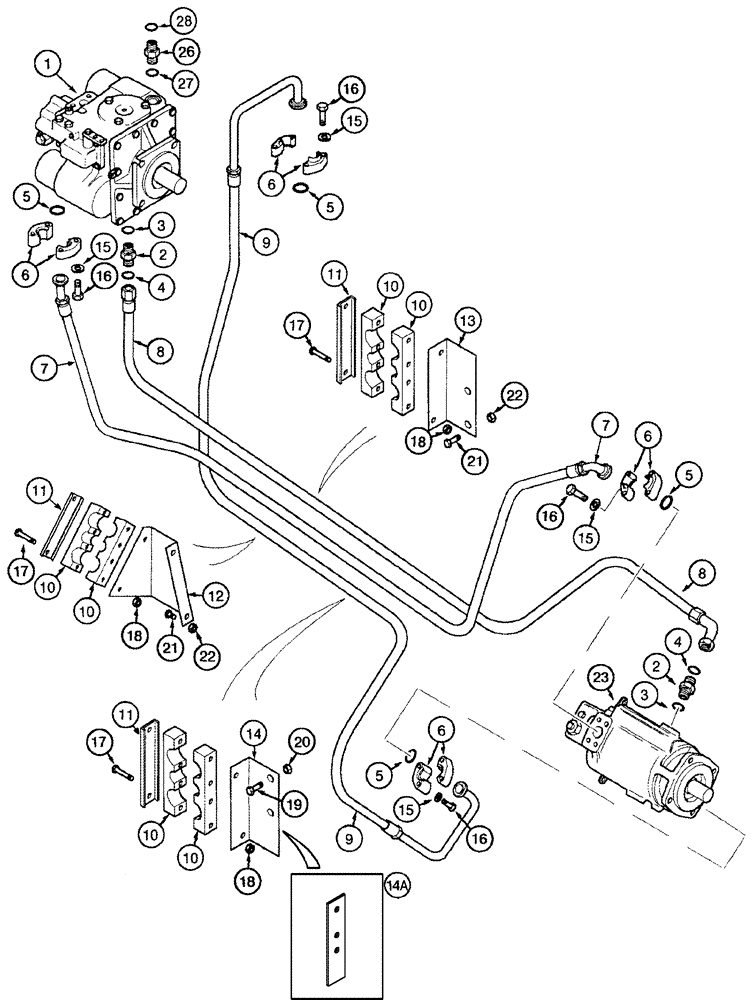

Схема запчастей Case IH 2377 - (06-02) - HYDROSTATICS - PUMP AND MOTOR - SINGLE SPEED MOTOR (03) - POWER TRAIN
6
15
10
17
17
5
11
2
6
22
6
11
16
5
8
10
3
15
5
8
14
26
10
21
14a
7
2
27
19
7
10
13
4
1
16
18
15
10
16
11
28
22
20
18
16
21
6
9
18
17
23
15
5
12
3
9
4
10

Артикул

Название

Примечание

Количество

1

400478A1

HYDROSTATIC PUMP

Hydrostatic

1шт.

See Figure 06-09

1шт.

1

87637528R

REMAN-HYDROSTAT PUMP

2377 (11/04-), Reman for New P/N 400478A1

1шт.

1

87637528C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Incl 3, 4

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

5

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

6

S97224

CLAMP

1 in, Split Flange

8шт.

7

443578A1

HOSE,25.4mm ID x 3505mm L

3505 mm (138 in), Forward

1шт.

8

443581A1

HOSE

3902 mm (163-5/8 in), Drain

1шт.

9

443579A1

HOSE,25.4mm ID x 4110mm L

4110 mm (161-7/8 in), Reverse

1шт.

10

221145A1

CLAMP

Two Piece

3шт.

11

224303A1

GUIDE

1-5/16 ID x 1/8 in wide, Clamp Backup

3шт.

12

1979941C1

SUPPORT

Hydrostatic Tube, Rear

1шт.

13

224302A2

SUPPORT

Hose Clamp, Middle

1шт.

14

224301A2

SUPPORT

Hose Clamp, Front

1шт.

14a

427273A1

SUPPORT

Hose Clamp

1шт.

15

492-11044

LOCK WASHER,7/16"

16шт.

16

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

16шт.

17

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

6шт.

18

231-4146

NUT,3/8"-16, GB

6шт.

19

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

21

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

22

231-5146

FLANGE NUT,3/8"-16

6шт.

23

400475A2

HYDROSTATIC MOTOR,89.13CC

1шт.

See Figure 06-13

1шт.

23

400475A2R

REMAN-HYD MOTOR

Reman For New PN 400475A2

1шт.

23

400475A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

24

515-23333

CLAMP,1 5/16", Insul, 3/8" Bolt

P-Type, Not Illustrated

1шт.

Used to Separate Reverse Hydrostatic and Case Drain Hoses

1шт.

25

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-Type, Not Illustrated, Serial Range: -HAJ0295001

1шт.

Used to Separate Reverse Hydrostatic and Case Drain Hoses

1шт.

25

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

, Start Serial: HAJ0295001

1шт.

26

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Incl 27, 28

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

28

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Выбрано товаров: 38
