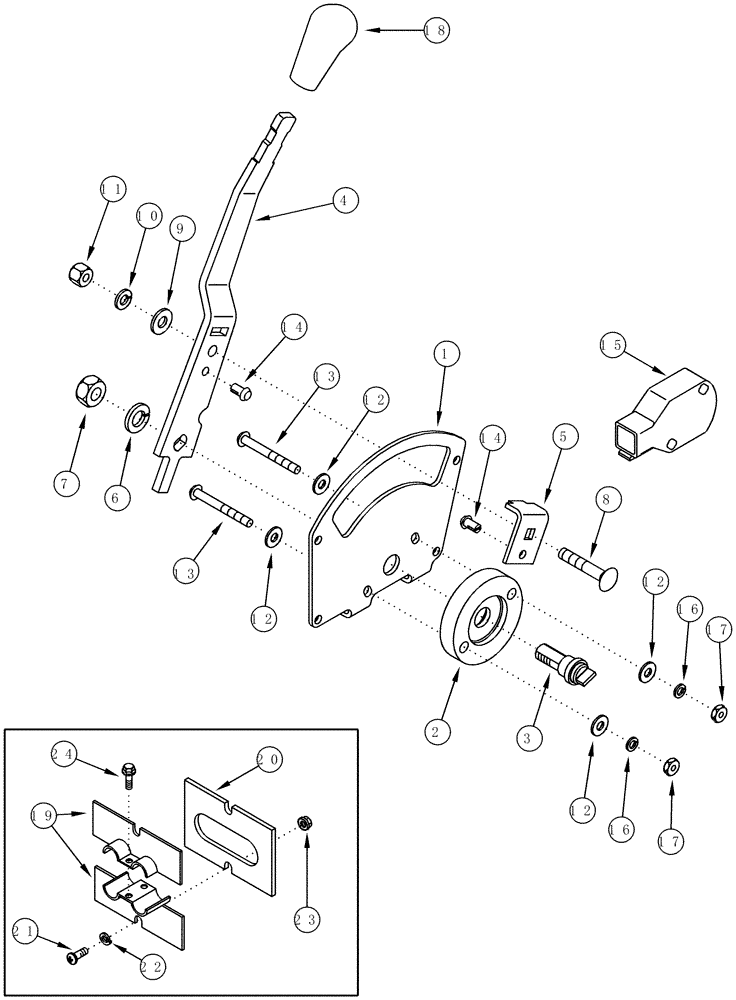

Запчасти Case IH 2377 (03-15) - THROTTLE CONTROL - ASN HAJ0295001 (02) - FUEL SYSTEM

1

344988A1

PLATE

Throttle Control

1шт.

2

302688A1

SPACER

Potentiometer

1шт.

3

344990A1

PIN

Drive

1шт.

4

344989A1

LEVER

Throttle

1шт.

5

344991A1

BRACKET

1шт.

6

892-11010

LOCK WASHER,M10

1шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

8

411-424

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1 1/2", Gr 2

1/4 x 1-1/2

1шт.

9

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

1шт.

10

492-11025

LOCK WASHER,1/4"

1шт.

11

231-1444

NUT,1/4"-20, GB

1шт.

12

495-31022

WASHER,#10

4шт.

13

440-11028

SCREW,Cross Pan Hd, #10-24 x 1 3/4"

No. 10 x 1-3/4

2шт.

14

259040A1

INSERT

2шт.

15

231426A1

POTENTIOMETER,2500 Ohm

1шт.

16

492-11010

LOCK WASHER,#10

2шт.

17

225-14110

NUT,#10-24

2шт.

18

134071A1

KNOB

1шт.

19

119314A1

CLAMP

2шт.

20

119328A1

GASKET,5mm Thk

1шт.

21

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

2шт.

22

492-11010

LOCK WASHER,#10

2шт.

23

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

24

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.
