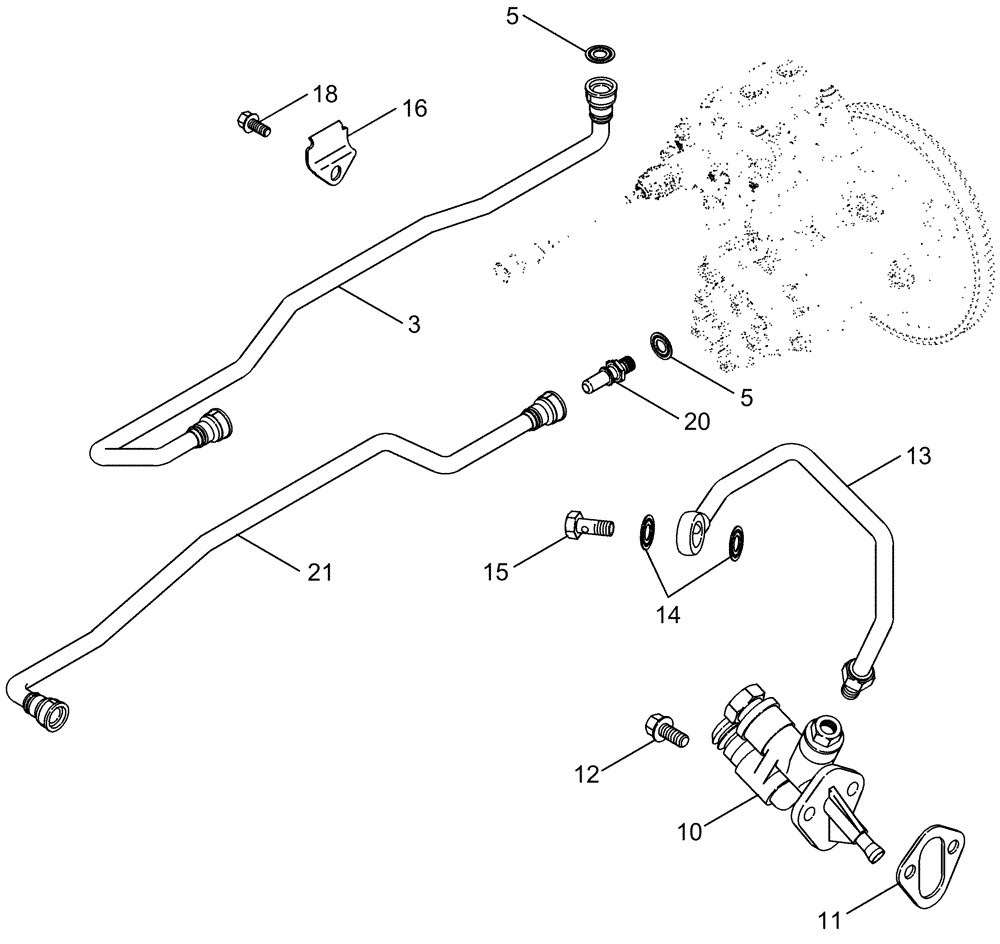

Запчасти Case IH 2377 (03-05) - FUEL FILTER - PUMP, TRANSFER - ASN HAJ0295001 (02) - FUEL SYSTEM

3

87349485

FUEL TUBE,0.63" OD

Fuel Supply

1шт.

5

87346600

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

2шт.

10

J936316

FUEL PUMP

1шт.

11

J939258

GASKET,1.21mm Thk

1шт.

12

J909310

SCREW,Hex Flg, M8 x 1.25 x 25mm, Cl 10.9

2шт.

13

J918539

FUEL TUBE,8 mm OD x 320.7 mm L

1шт.

14

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 mm

3шт.

15

J916361

BANJO BOLT

M12 x 24

1шт.

16

87339057

BRACKET

1шт.

18

J925883

FLANGE BOLT,Hex, M8 x 16mm, Cl 10.9

M8 x 16; 10.9

1шт.

20

87349484

ADAPTER

2шт.

21

87349483

FUEL TUBE,0.63" OD

Fuel Supply

1шт.
