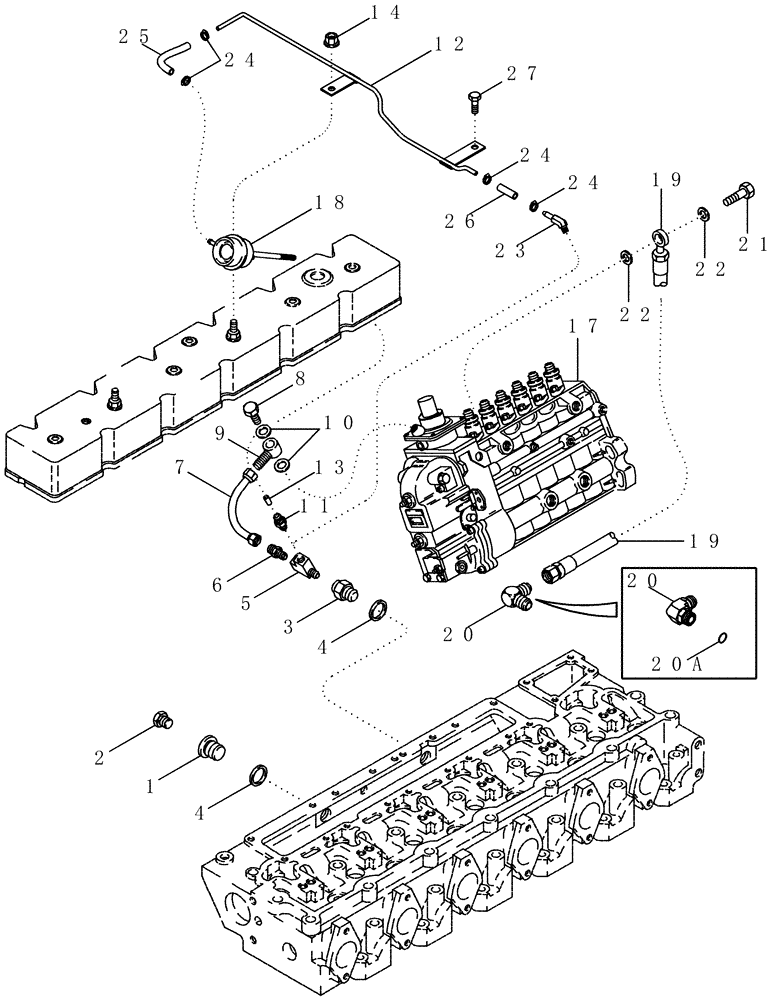

Запчасти Case IH 2377 (03-03) - ANEROID AND WASTEGATE SYSTEM (02) - FUEL SYSTEM

1

J924148

PLUG,M22 x 1.5

M22

1шт.

2

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

3

J921594

PLUG

1шт.

4

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

5

J930789

TEE

1/8 x 1/8 x 1/8

1шт.

6

222-21

FITTING,7/16"-24 x 1/8" NPTF

1шт.

7

J991512

TUBE,6.35 mm OD x 120 mm L

1шт.

8

J903035

BANJO BOLT

M12 x 24

1шт.

9

J990881

CONNECTION

1шт.

10

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 mm

2шт.

11

A77796

CONNECTOR, ELEC

CONNECTOR

1шт.

12

J935612

TUBE,6.35 mm OD x 430.2, 141.4 mm L

1шт.

13

222-102

SLEEVE,1/4" Tube

1шт.

14

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

17

87402490

PUMP, FUEL INJECTION

PUMP, INJECTION

1шт.

See Figure 03-04

1шт.

18

REF

INSTRUCTION

Actuator

1шт.

See Figure 02-16

1шт.

19

J930690

HOSE,420.00 mm

1шт.

20

J945212

ELBOW

1шт.

20a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

21

J918002

BANJO BOLT

1шт.

22

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

10 x 15,5 x 1 mm

2шт.

23

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

Stem, Barb

1шт.

24

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

4шт.

25

J938056

HOSE,6.35 mm ID x 51.00 mm

Cut From J991038

1шт.

26

J938057

HOSE,6.35 mm ID x 182.00 mm

Cut From J991038

1шт.

27

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.
