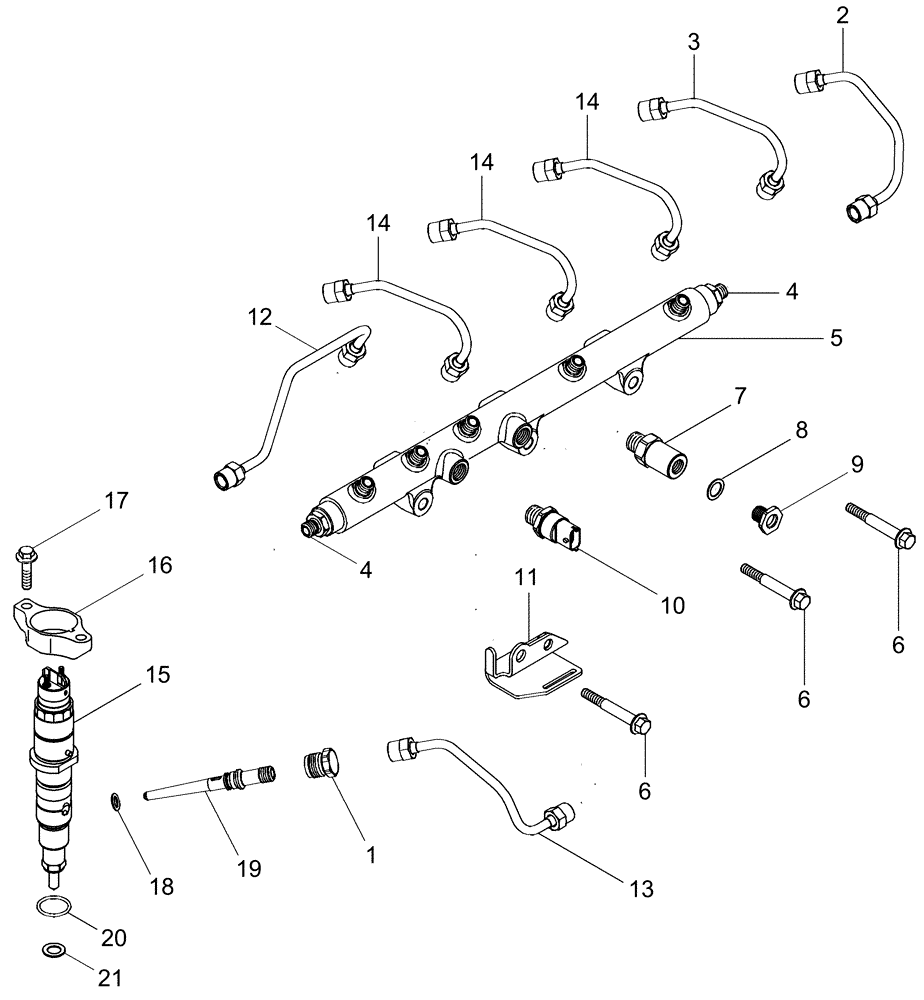

Запчасти Case IH 2377 (03-02) - FUEL INJECTION SYSTEM - ASN HAJ0295001 (02) - FUEL SYSTEM

1

87347221

RETAINER

6шт.

2

87348184

FUEL TUBE,3 mm ID x 8 mm OD x 217.70 mm L

1шт.

3

87348175

TUBE,3 mm ID x 8 mm OD x 217.50 mm L

1шт.

4

87348150

FITTING

High Pressure Fuel

2шт.

5

87347257

KIT

Manifold

1шт.

Inc. 2 Decals, See Figure 09H-19 REF 22

1шт.

6

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

3шт.

7

87347275

VALVE PRESSURE RELIE

1шт.

8

87348161

SEALING WASHER

1шт.

9

87348154

ADAPTER

1шт.

10

87347273

SENSOR

1шт.

11

87348302

BRACKET

BRACE, Tube

1шт.

12

87348190

FUEL TUBE,3 mm ID x 8 mm OD x 394.10 mm L

1шт.

13

87348171

FUEL TUBE,3 mm ID x 8 mm OD x 217.60 mm L

1шт.

14

87348283

FUEL TUBE,3 mm ID x 8 mm OD x 217.50 mm L

3шт.

15

87351060

FUEL SYSTEM INJECTOR

6шт.

15

84346812R

REMAN-FUEL INJECTOR

2377 ASN HAJ0295001, 2388 ASN HAJ0295001, Replaces P/N 87351060

6шт.

15

84346812C

CORE-FUEL INJECTOR

Return Number

6шт.

16

87343005

CLAMP

6шт.

17

87343006

BOLT

12шт.

18

87348322

SEAL,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

6шт.

19

87348301

FITTING

Inc. 18

6шт.

20

NSS

NOT SOLD SEPARAT

Seal

6шт.

21

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

6шт.
