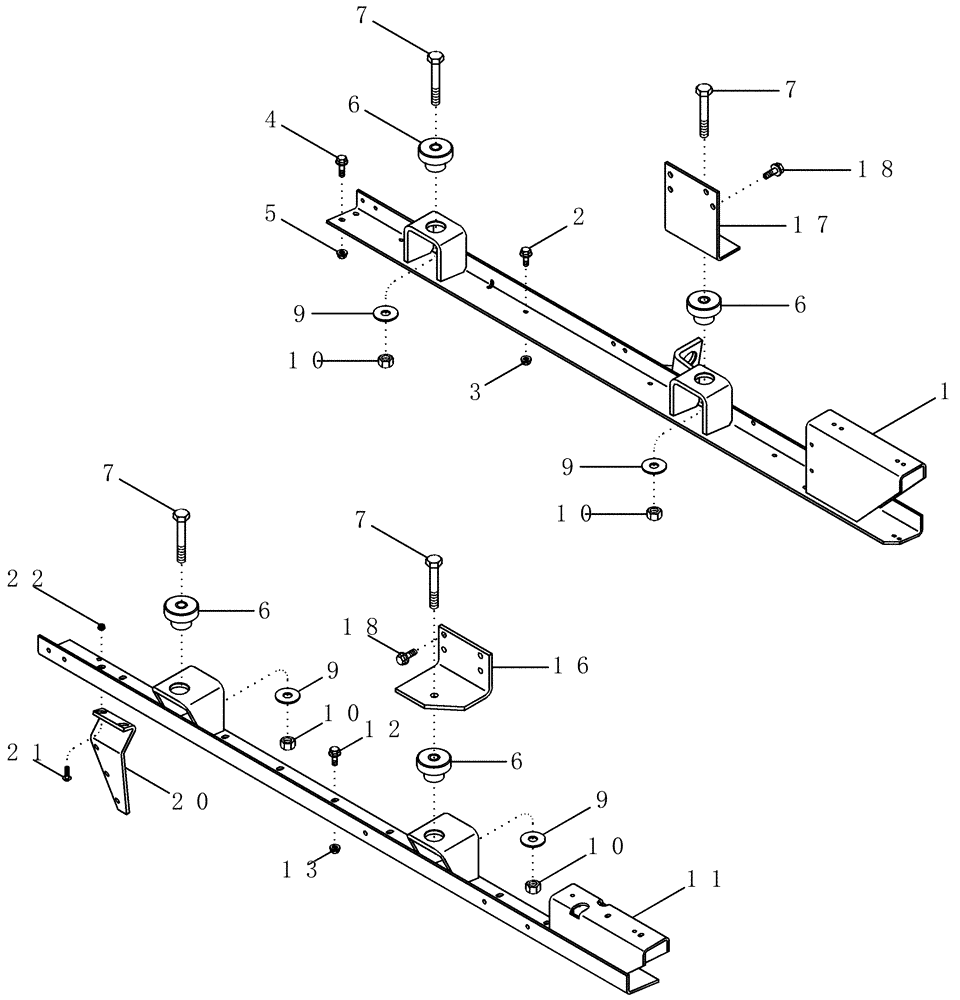

Запчасти Case IH 2377 (02-45) - MOUNTING, ENGINE - BSN HAJ0295001 (01) - ENGINE

1

87404493

ENGINE MOUNT

LH

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

6

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

4шт.

7

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 x 3-1/4

4шт.

9

107813R1

WASHER

21/32 x 2-1/2 x 11/64

4шт.

10

231-41110

LOCK NUT,5/8"-11, GB

4шт.

11

87427481

HANDRAIL

Right Hand

1шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

9шт.

13

231-5146

FLANGE NUT,3/8"-16

9шт.

14

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

15

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

16

400752A1

BRACKET

RH Front

1шт.

17

400753A1

BRACKET

LH Front

1шт.

18

857-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

8шт.

19

1330098C2

SUPPORT

Left Hand

1шт.

20

87416055

SUPPORT

RH

1шт.

21

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

2шт.

21

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

2шт.

22

231-5146

FLANGE NUT,3/8"-16

4шт.
