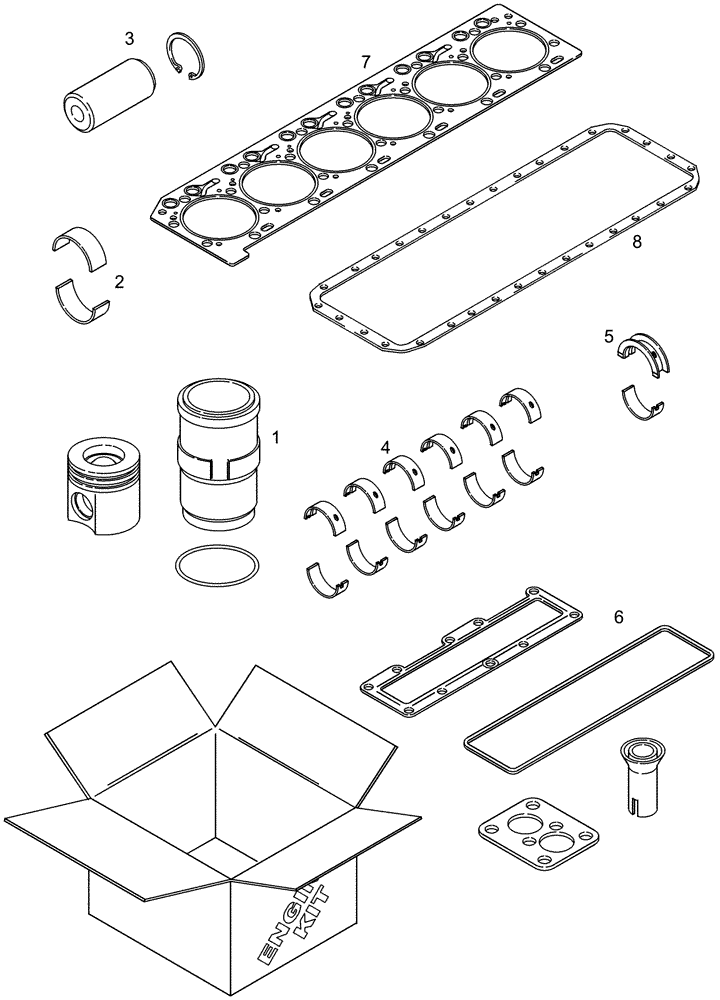

Запчасти Case IH 2377 (02-43) - KIT ENGINE OVERHAUL (01) - ENGINE

A78039

ENGINE OVERHAUL KIT

Incl 1 - 5, 7 - 8, Serial Range: -HAJ0295001

1шт.

87348859

ENGINE OVERHAUL KIT

Incl 1 - 5, 7 - 8, Start Serial: HAJ0295001

1шт.

1

A78038

KIT

And Sleeve, Serial Range: -HAJ0295001

6шт.

See Figure 02-35

1шт.

1

87343262

KIT

, Start Serial: HAJ0295001

6шт.

See Figure 02-35

1шт.

2

87443389

BEARING LINER

Connecting Rod, Standard

6шт.

See Figure 02-35

1шт.

3

J934046

PISTON PIN,45mm OD x 91mm L

Piston, Serial Range: -HAJ0295001

6шт.

See Figure 02-35

1шт.

3

87342670

PISTON PIN

, Start Serial: HAJ0295001

6шт.

See Figure 02-35

1шт.

4

J945930

BEARING SET

Main, Standard

6шт.

See Figure 02-34

1шт.

5

J945929

THRUST BEARING

Thrust, Standard

1шт.

See Figure 02-34

1шт.

6

A78042

KIT

Valve Grind, Serial Range: -HAJ0295001

1шт.

See Figure 02-40

1шт.

6

87348974

GASKET KIT

Valve Grind, Start Serial: HAJ0295001

1шт.

See Figure 02-41

1шт.

7

J943366

CYLINDER HEAD GASKET,2.11mm Thk

, Serial Range: -HAJ0295001

1шт.

See Figure 02-24

1шт.

7

87344132

CYLINDER HEAD GASKET

, Start Serial: HAJ0295001

1шт.

See Figure 02-24

1шт.

8

J938160

OIL PAN GASKET SET

Oil Pan, Serial Range: -HAJ0295001

1шт.

See Figure 02-23

1шт.

8

87308050

GASKET,0.95mm Thk

Oil Pan, Start Serial: HAJ0295001

1шт.

See Figure 02-23

1шт.
