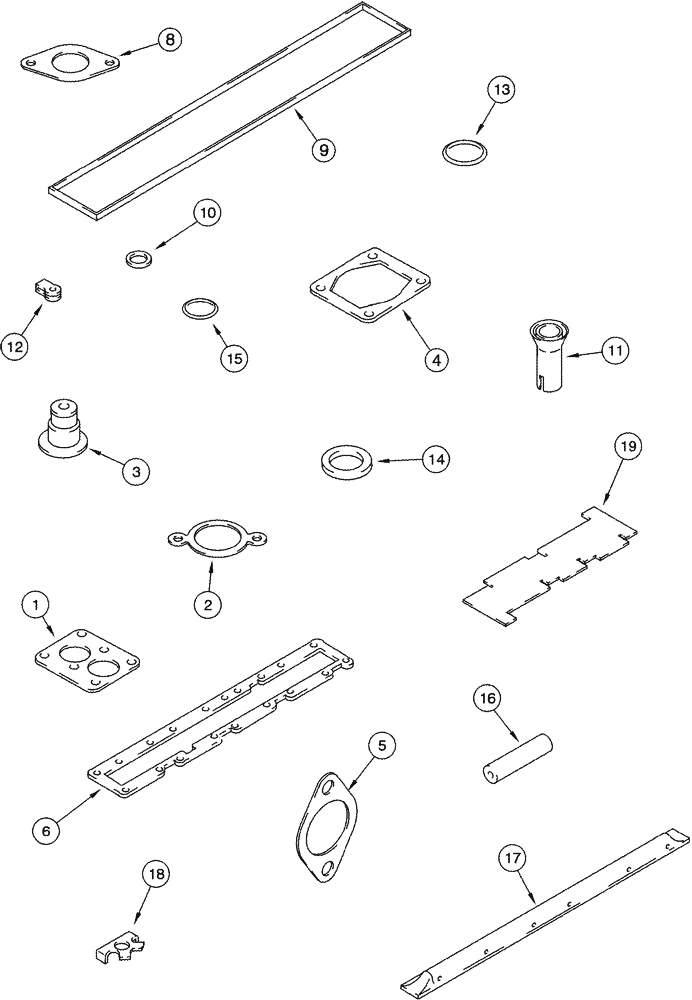

Запчасти Case IH 2377 (02-40) - GASKET KIT - VALVE GRIND - BSN HAJ0295001 (01) - ENGINE

A78042

KIT

Valve Grind, Inc. 1, 2, 3 - 6, 8 - 20

1шт.

1

J914310

GASKET,0.8mm Thk

Thermostat Housing

1шт.

2

J918779

GASKET,1.19mm Thk

Water Outlet

1шт.

3

J927642

SEAL

Valve Stem, Exhaust

12шт.

4

J911941

GASKET

1шт.

4

J755843

GASKET,0.5mm Thk

Turbo Mount

1шт.

5

J932063

MANIFOLD GASKET,1.78mm Thk

1шт.

6

J936993

MANIFOLD GASKET,0.76mm Thk

Intake

1шт.

8

J937706

GASKET,0.79mm Thk

Oil Drain

1шт.

9

J905449

SEAL,7.179mm W x 2090mm L

Valve Cover

1шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Valve Cover Bolts

6шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

Injector

6шт.

12

J903380

SEAL

Banjo Connector

7шт.

13

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

14

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

1,5 mm

6шт.

14

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

Injector Tip, 2,5 mm

6шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Water Filter Shut-off

1шт.

16

J930827

HOSE,51.00 mm

Not Used In This Application

1шт.

17

J919677

TUBE

1шт.

18

J914708

LOCKING PLATE

Exhaust Manifold Bolts

12шт.

19

87404692

GAUGE

Cylinder Head Bolt Length

1шт.

20

J929012

GASKET,0.5mm Thk

Exhaust Manifold, Not Illustrated

6шт.
