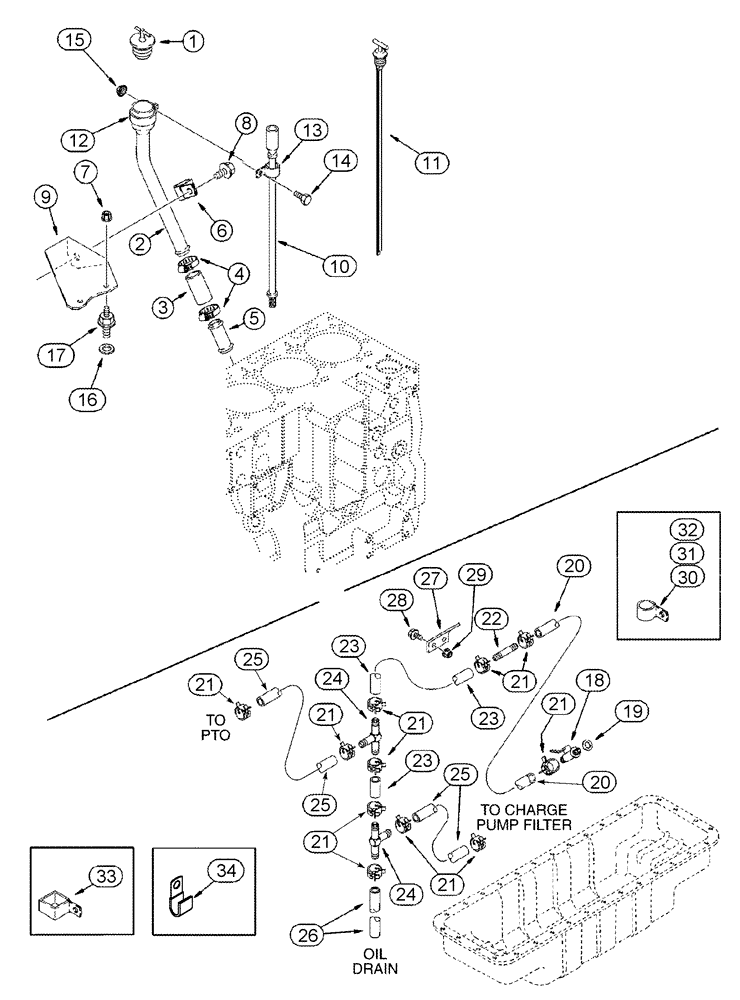

Запчасти Case IH 2377 (02-37) - OIL SYSTEM ENGINE - OIL FILL TUBE - OIL DRAIN SYSTEM - BSN HAJ0295001 (01) - ENGINE

1

A77424

FILLER CAP

Cap

1шт.

2

J914019

TUBE,34.92 mm OD x 59, 25 mm L

1шт.

3

A77661

HOSE

1шт.

4

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

5

J914163

TUBE,35.23 mm OD x 90 mm L

1шт.

6

J914022

CLAMP

1шт.

7

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

8

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

9

J914020

BRACKET

1шт.

10

86993181

TUBE,9.52 mm ID x 809 mm L

1шт.

11

86993180

DIPSTICK

1шт.

12

118788A1

CLAMP

1шт.

13

A77508

CLAMP

7/16" ID

1шт.

14

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

15

825-1408

NUT,M8, Cl 8

1шт.

16

J918189

SEALING WASHER

2шт.

17

J931061

FLANGE BOLT,Hex, M6 x 1 - M8 x 1.25 x 48.50mm

2шт.

18

1330429C1

DRAIN VALVE

Includes 20

1шт.

19

J920773

SEALING WASHER

1шт.

20

1329978C3

HOSE

430 mm (17")

1шт.

21

1954736C1

HOSE CLAMP,#24

10шт.

22

1301342C1

FITTING

1шт.

23

1329977C2

HOSE,15.75 mm ID x 840.00 mm

840 mm (33 in), Cut From 1977295CX, Oil Drain Upper, Oil Drain Intermediate

2шт.

24

1977169C1

TEE

2шт.

25

394244A1

HOSE

270 mm (10-5/8 in), Cut From1977295CX, Oil Drain Pto

1шт.

26

293339A1

RADIATOR HOSE,22.35mm ID x 1100mm L

Cut From 1977295CX, Oil Drain Lower

1шт.

27

1977212C1

BRACKET

1шт.

28

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

29

231-5146

FLANGE NUT,3/8"-16

2шт.

30

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

31

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

1шт.

32

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

3шт.

33

1301387C2

CLIP

2 in ID Square

2шт.

34

97249C1

CLIP

1шт.
