Запчасти Case IH 2377 (02-32) - OIL FILTER AND COOLER (01) - ENGINE

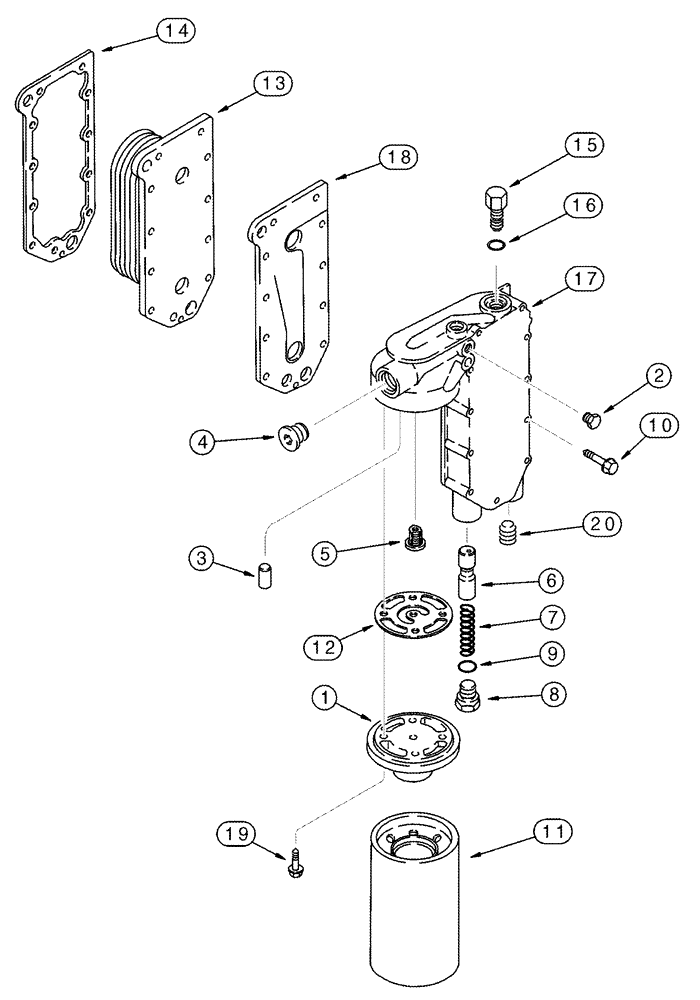

Схема запчастей Case IH 2377 - (02-32) - OIL FILTER AND COOLER (01) - ENGINE
14
13
19
10
1
7
11
6
8
9
4
15
20
5
3
12
16
17
2
18

Артикул

Название

Примечание

Количество

J934159

COVER

Head Assy., Inc. 1, 3, 5, 12, 17, 19, Serial Range: -HAJ0295001

1шт.

1

J918334

FILTER HEAD

, Serial Range: -HAJ0295001

1шт.

1

87340627

FILTER HEAD

, Start Serial: HAJ0295001

1шт.

2

J906619

PLUG,1/8" - 27

1/8 PT

2шт.

3

A77722

PIN,7.95mm OD x 12.83mm L

1шт.

4

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

5

J936365

VALVE PRESSURE RELIE

1шт.

6

J945967

PLUNGER

1шт.

7

A77541

SPRING

, Serial Range: -HAJ0295001

1шт.

7

87340755

SPRING

, Start Serial: HAJ0295001

1шт.

8

J931084

PLUG

24 mm, Includes 9

1шт.

9

J930911

O-RING,0.07" Thk x 0.8" ID

3/4" ID x 1/16"

1шт.

10

87421315

FLANGE BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

M8 x 65; 10.9, Serial Range: -HAJ0295001

9-11шт.

10

87421315

FLANGE BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

M8 x 65; 10.9, Start Serial: HAJ0295001

8шт.

10

87409553

BOLT

With Stud, M8, Serial Range: -HAJ0295001

2шт.

10

87409553

BOLT

With Stud, M8, Start Serial: HAJ0295001

1шт.

11

J919562

ENGINE OIL FILTER

, Serial Range: -HAJ0295001

1шт.

11

366700A1

ENGINE OIL FILTER

, Start Serial: HAJ0295001

1шт.

12

J921605

GASKET

, Serial Range: -HAJ0295001

1шт.

12

87447957

GASKET,1.2mm Thk

, Start Serial: HAJ0295001

1шт.

13

J918175

CORE, RADIATOR

, Serial Range: -HAJ0295001

1шт.

13

87452245

CORE-OIL COOLER

, Start Serial: HAJ0295001

1шт.

14

J918174

GASKET,0.71mm Thk

1шт.

15

J934410

BY-PASS VALVE

Includes 16

1шт.

16

A77724

O-RING,3.05mm Thk x 23.62mm ID

1шт.

17

J931077

COVER

, Serial Range: -HAJ0295001

1шт.

17

87314031

COVER

, Start Serial: HAJ0295001

1шт.

18

J4063496

GASKET,0.8mm Thk

, Serial Range: -HAJ0295001

1шт.

18

J929011

GASKET,1.19mm Thk

, Start Serial: HAJ0295001

1шт.

19

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

4шт.

20

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

, Serial Range: -HAJ0295001

1шт.

20

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

, Start Serial: HAJ0295001

1шт.

Выбрано товаров: 32
