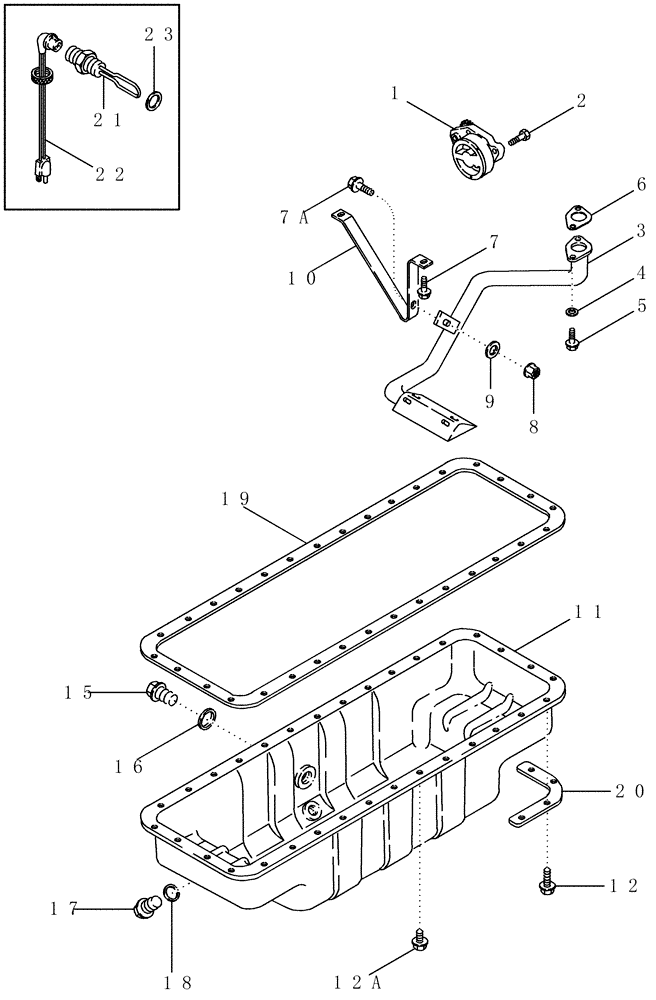

Запчасти Case IH 2377 (02-23) - OIL PUMP, PAN - OIL PAN HEATER KIT (01) - ENGINE

1

J948072

ENGINE OIL PUMP

, Serial Range: -HAJ0295001

1шт.

JR948072

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. Only, Serial Range: -HAJ0295001

1шт.

JC948072

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only, Serial Range: -HAJ0295001

1шт.

1

J991123

ENGINE OIL PUMP

, Start Serial: HAJ0295001

1шт.

JR991123

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only, Start Serial: HAJ0295001

1шт.

JC991123

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only, Start Serial: HAJ0295001

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J921719

TUBE

1шт.

4

J926865

SPACER,6.9mm ID x 12.7mm OD x 14mm L

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

6

J914302

GASKET

, Serial Range: -HAJ0295001

1шт.

6

87447959

GASKET,1.2mm Thk

, Start Serial: HAJ0295001

1шт.

7

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

7a

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

8

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

9

J910960

WASHER

1шт.

10

J927611

BRACKET

1шт.

11

J914015

ENGINE OIL PAN

, Serial Range: -HAJ0295001

1шт.

11

87351053

ENGINE OIL PAN

, Start Serial: HAJ0295001

1шт.

12

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25, Serial Range: -HAJ0295001

16шт.

12a

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

M8 x 21, Serial Range: -HAJ0295001

16шт.

12a

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

M8 x 21, Start Serial: HAJ0295001

32шт.

15

J924148

PLUG,M22 x 1.5

M22

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

17

J924147

PLUG,M18 x 1.5

M18

1шт.

18

J920773

SEALING WASHER

1шт.

19

J938160

OIL PAN GASKET SET

Pan, Serial Range: -HAJ0295001

1шт.

19

87308050

GASKET,0.95mm Thk

Pan

1шт.

20

87414461

SUPPORT

Pan, Serial Range: -HAJ0295001

4шт.

A77580

SERVICE KIT

120V, Heater, Includes 21, 22, Also Order J902425, Ref. 16

1шт.

21

NSS

NOT SOLD SEPARAT

Element

1шт.

22

196466A1

ELECTRIC CABLE

1829 mm (72")

1шт.

A77666

SERVICE KIT

240V Heater, Includes 21, 22, Also Order J902425, Ref. 16

1шт.

21

NSS

NOT SOLD SEPARAT

Element

1шт.

22

J905114

ELECTRIC CABLE

1829 mm (72")

1шт.
