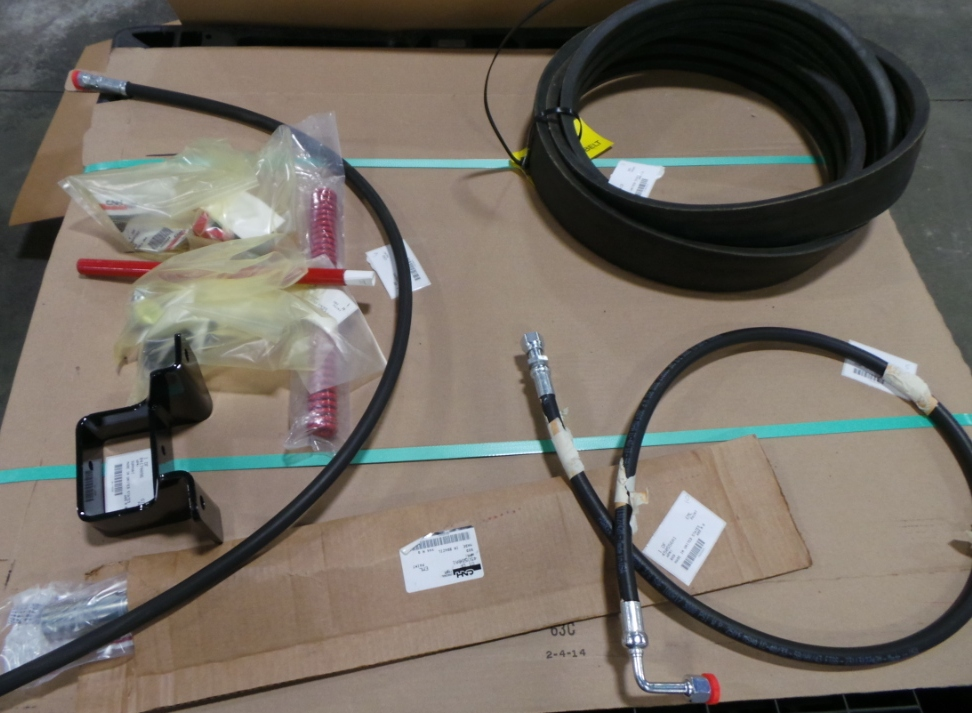

Запчасти Case IH 2377 (88.040.16) - KIT FEEDER DRIVE W/ ROCK TRAP (88) - ACCESSORIES

1

417870A2

PACKAGE

Incl 2 - 16

1шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

3

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

4

470375C1

CLAMP,1", Insul, 3/8" Bolt

1шт.

5

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

6

131391A3

FLEXIBLE HOSE

1шт.

7

434296A1

FLEXIBLE HOSE

1шт.

8

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

9

425-1010

NUT,5/8"-11, G5

2шт.

10

450554A1

PIVOT

1шт.

11

194528C2

BELT,22.225 mm W x 3641.50 mm L, 3, Ribs

1шт.

12

84170096

SUPPORT

1шт.

13

450553A2

CLIP

1шт.

14

450551A1

SPACER

1шт.

15

450555A1

SPRING

1шт.

16

450556A1

ROD

1шт.
