Запчасти Case IH 2377 (88.040.12[01]) - KIT THIRD LIFT CYLINDER 60 IN (88) - ACCESSORIES

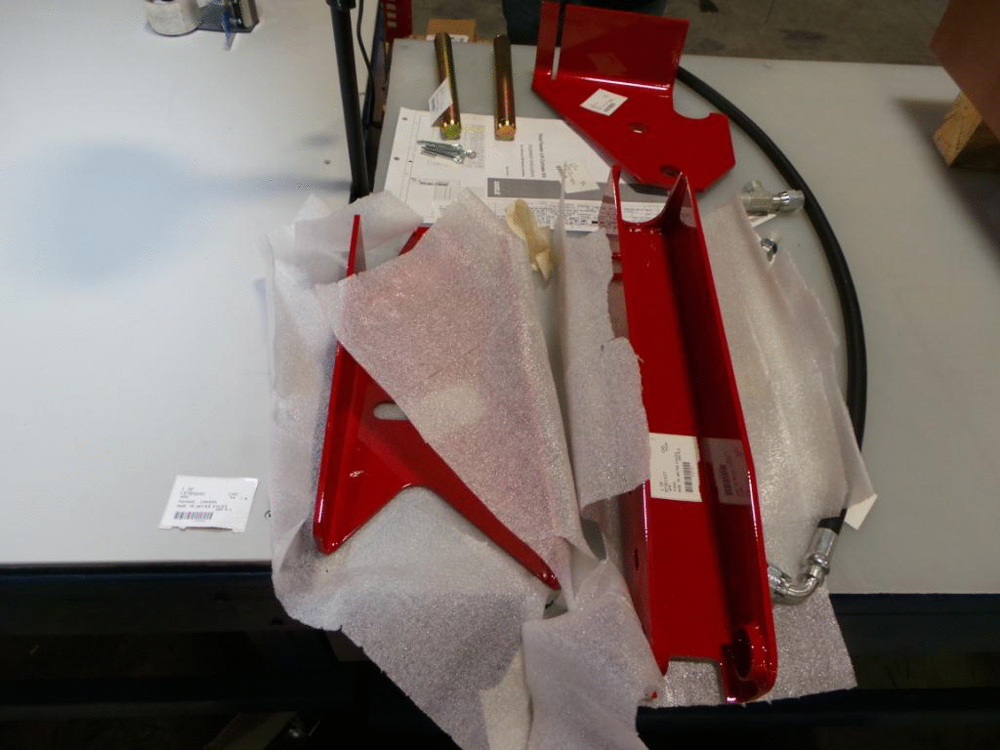

Схема запчастей Case IH 2377 - (88.040.12[01]) - KIT THIRD LIFT CYLINDER 60 IN (88) - ACCESSORIES

Артикул

Название

Примечание

Количество

1

137856A2

CONVERSION PACKAGE

Incl 2 - 14

1шт.

2

6-10151

INSTRUCTION

1шт.

3

201-348

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

1шт.

4

128028A1

FLEXIBLE HOSE,12.7mm ID x 1140mm L

1шт.

5

86624133

TEE,1"-14 ORFS x 1"-14 Sw Run

1шт.

6

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

9

87301427

STAND

1шт.

10

87617973

PIN,31.75mm OD x 288mm L

Feeder Lift LH Long

2шт.

11

403774A1

ANGLE

1шт.

12

403925A1

BRACKET

1шт.

13

88182

COTTER PIN,1/4" OD x 2" L

4шт.

14

87385882

CYLINDER ASSY.,63mm Rod, 582.5mm Stroke

1шт.

Выбрано товаров: 14
