Запчасти Case IH 2377 (02-21) - CYLINDER BLOCK - ENGINE BLOCK HEATERS - BSN HAJ0295001 (01) - ENGINE

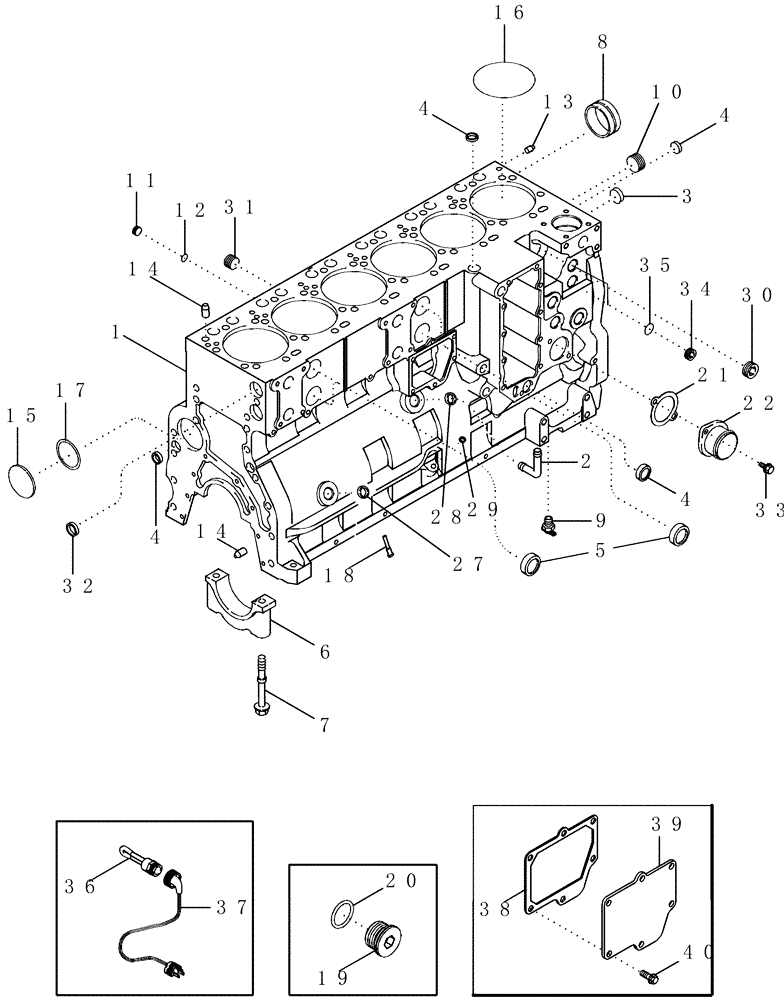

Схема запчастей Case IH 2377 - (02-21) - CYLINDER BLOCK - ENGINE BLOCK HEATERS - BSN HAJ0295001 (01) - ENGINE
4
21
32
38
5
4
30
4
13
10
20
28
22
14
6
16
37
8
4
11
3
33
14
2
27
17
29
39
34
15
7
35
40
36
9
12
1
19
18
31

Артикул

Название

Примечание

Количество

450560A1

BASIC ENGINE

Service, 6TAA-830 Tier 2

1шт.

Note: Less, Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injector Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler

1шт.

Note: Basic engines and reman engines are generic engines. The engines are complete internally; however, externally all parts are not supplied with the engines. Check the configuration of the engine being removed, with the configuration of the engine being installed. For any external components not supplied with the engine being installed, reuse those parts from the engine that has just been removed. Do not return the old engine, until the unit is reassembled.

1шт.

450560A1R

REMAN-BASIC ENGINE

BSN HAJ0295001. Less, Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injector Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler

1шт.

450560A1C

CORE-BASIC ENGINE

Return Number

1шт.

47466033R

REMAN-BASIC ENGINE

ASN HAJ0295001. Less, Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injector Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler

1шт.

47466033C

CORE-BASIC ENGINE

Return Part Number

1шт.

87411285

BLOCK

Short Block

1шт.

87411285R

REMAN-SHORT ENGINE

2377 BTW HAJ292001&HAJ300000, BSN HAJ0295001 (11/04-)

1шт.

87411285C

CORE-ENGINE

Return Part Number

1шт.

A78041

CYLINDER BLOCK

Short, Inc. 1 - 8

1шт.

Stripped Short Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings

1шт.

1

J939313

BASIC BLOCK

Stripped, Inc. 3 - 8, Also Order 449019A1

1шт.

2

J931973

TUBE,0.875" OD

Turbo Drain

1шт.

3

A77586

PLUG

28.9 mm

2шт.

4

A77506

PLUG

21 mm

4шт.

5

J905401

PLUG

35 mm

4шт.

6

J936058

BEARING CAP

7шт.

7

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

14шт.

8

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

7шт.

449019A1

PACKAGE,SERVICE

Includes 9 - 20

1шт.

9

217-103

COCK, DRAIN

1/4" PT

1шт.

10

86625135

PLUG,1" - 11-1/2 NPT

1шт.

11

J678923

PLUG,M10 x 1

10 mm, Inc. 12

6шт.

12

86625087

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

8.1 ID x 1.6 mm

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J901846

PIN,12.01mm OD x 24mm L

4шт.

15

41-3044

PLUG,Exp, 2 3/4"

(70 mm)

1шт.

16

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

6шт.

17

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

66 mm ID

1шт.

18

J928031

NOZZLE,8.5mm OD x 30mm L

12шт.

19

J678921

PLUG

14 mm, Inc. 20

2шт.

20

J678912

O-RING,2.2mm Thk x 11.3mm ID

2шт.

21

J945603

GASKET,1.65mm Thk

Water Inlet

1шт.

22

J913030

FITTING

Water Inlet

1шт.

27

A77530

PLUG

1-13/64 OD

2шт.

28

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

29

J943808

PLUG

13 mm

2шт.

30

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

3шт.

31

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

5шт.

32

J920443

PLUG

30 mm

2шт.

33

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

34

313244A1

PLUG

Hex Socket, 22 mm, Includes 35

2шт.

35

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 ID x 2,2 mm

1шт.

310493A1

KIT

Engine Block Heater, 120 Volt, Inc. 36 - 37

1шт.

36

196466A1

ELECTRIC CABLE

1829 mm (72")

1шт.

37

NSS

NOT SOLD SEPARAT

Element

1шт.

310494A1

KIT

Coolant Heater, 240V, Inc. 36 - 37

1шт.

36

J913112

WIRE HARNESS

305 mm (12")

1шт.

37

NSS

NOT SOLD SEPARAT

Element

1шт.

38

87436828

GASKET

1шт.

39

87413814

COVER

Used Without Side Crankcase Breather

1шт.

40

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

6шт.

A78039

ENGINE OVERHAUL KIT

Not Illustrated

1шт.

See Figure 02-43

1шт.

Выбрано товаров: 55
