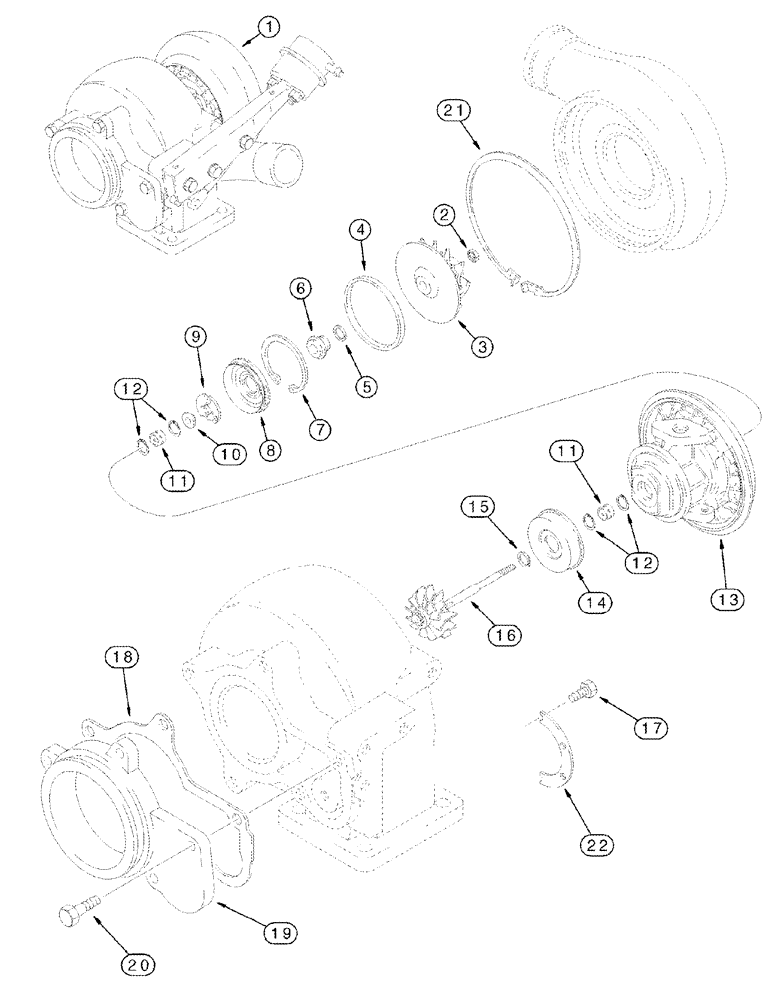

Запчасти Case IH 2377 (02-19) - TURBOCHARGER ASSY (01) - ENGINE

87410624

Reman-Turbocharger, Inc. J937706, J755843, Not Illustrated, Serial Range: -HAJ0295001

1шт.

87410627

Core Return Number, Turbocharger, Serial Range: -HAJ0295001

1шт.

87410622

TURBOCHARGER

Includes J937706, J755843, Serial Range: -HAJ0295001

1шт.

87410622R

REMAN-TURBOCHARGER

2377 BSN HAJ0295001, (11/04)

1шт.

87410622C

CORE-TURBOCHARGER

Return Number

1шт.

87351239

TURBOCHARGER

TURBOCHARGER, Start Serial: HAJ0295001

1шт.

87351239R

REMAN-TURBOCHARGER

Reman for New PN 87351239

1шт.

87351239C

CORE-TURBOCHARGER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Turbocharger, Inc. 2 - 22; Also Inc. 1 -12

1шт.

See Figure 02-17

1шт.

J538379

HOUSING

Includes 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Nut

1шт.

3

NSS

NOT SOLD SEPARAT

Impeller

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Slinger

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Baffle

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

10

NSS

NOT SOLD SEPARAT

Collar

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing, Journal

2шт.

12

NSS

NOT SOLD SEPARAT

Ring

4шт.

13

NSS

NOT SOLD SEPARAT

Housing

1шт.

14

NSS

NOT SOLD SEPARAT

Shield

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Rotor and Shaft

1шт.

17

J759917

SET SCREW

6шт.

18

J535243

GASKET,0.25mm Thk

1шт.

19

J528010

ADAPTER

1шт.

20

J503533

BOLT

M8 x 20

5шт.

21

J533163

SNAP RING

1шт.

22

J534309

PLATE

2шт.

J575169

REPAIR KIT

Overhaul, Inc. 2, 4, 5, 7, 8, 9, 11, 12, 15, 17

1шт.
