Запчасти Case IH 2377 (09F-03) - STRAW SPREADER - SHIELDS (19) - STRAW SPREADER & CHOPPER

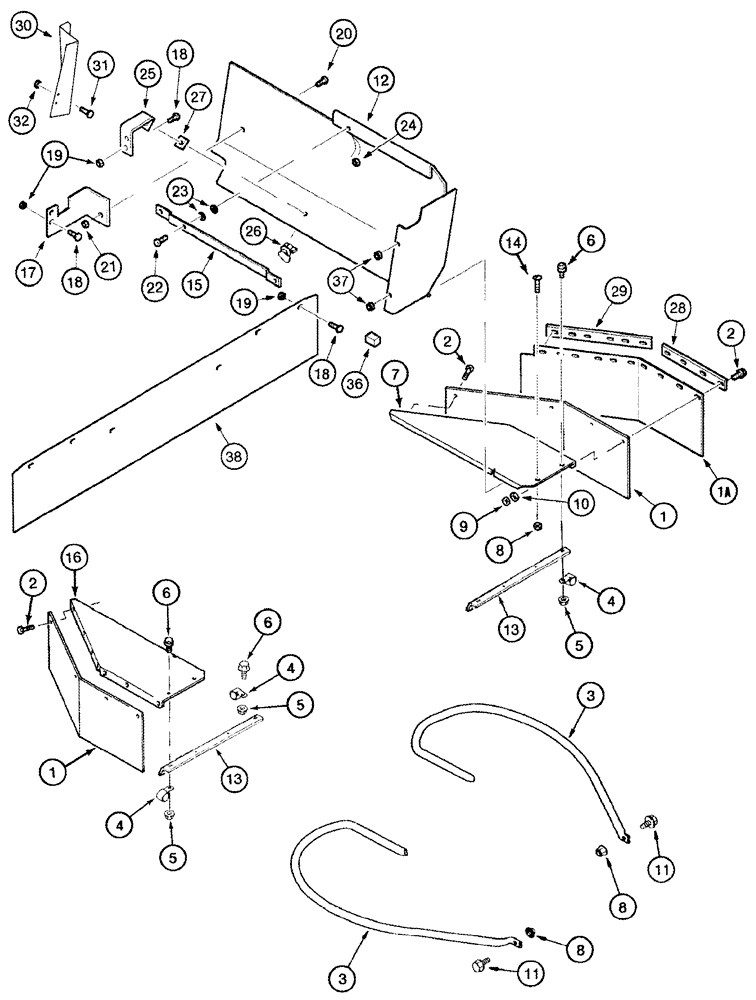

Схема запчастей Case IH 2377 - (09F-03) - STRAW SPREADER - SHIELDS (19) - STRAW SPREADER & CHOPPER
19
25
2
18
11
19
12
3
36
8
8
9
38
6
23
5
11
17
7
32
16
24
1
8
13
31
2
4
29
30
6
18
1
13
26
37
1a
27
28
14
10
15
5
3
5
20
18
4
2
21
4
22
6

Артикул

Название

Примечание

Количество

1

1308916C2

SHIELD

Straw Spreader

2шт.

1a

103211A2

SHIELD

Straw and Chaff Spreader

2шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

3

1308912C3

PIPE

2шт.

4

515-28175

CLAMP,17.5mm ID, 10.3mm Bolt Hole, P Type

6шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

6

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

7

183958A2

SUPPORT

Straw Spreader, Right Hand

1шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

9

231-4115

NUT,5/16"-18, GB

14шт.

10

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

11/32 x 1 x 3/64, Used With 1

8шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

12

441749A1

GUARD

1шт.

13

1308913C1

SUPPORT

2шт.

231-5146

FLANGE NUT,3/8"-16

4шт.

14

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

3шт.

15

186697A1

SUPPORT

Upper

1шт.

16

1308914C4

SUPPORT

Straw Spreader, Left Hand

1шт.

17

237965A1

SUPPORT

Front

1шт.

18

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

7шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

20

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

22

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

3шт.

23

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

6шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

25

257526A2

BRACKET

Lower

1шт.

26

182925A1

LOCK

1шт.

27

191030A1

STRIP

1шт.

28

140286A1

STRIP

Straw and Chaff Spreader, Front

2шт.

29

140287A1

STRIP

Straw and Chaff Spreader, Rear

2шт.

30

230413A2

GUARD

Right Hand Rear

1шт.

31

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

36

187884C1

SEALING STRIP,50mm L

51 mm (2"), Cut from 187885C1

1шт.

37

1321640C1

GROMMET

2шт.

38

140277A1

GUARD

Rubber

1шт.

Выбрано товаров: 37
