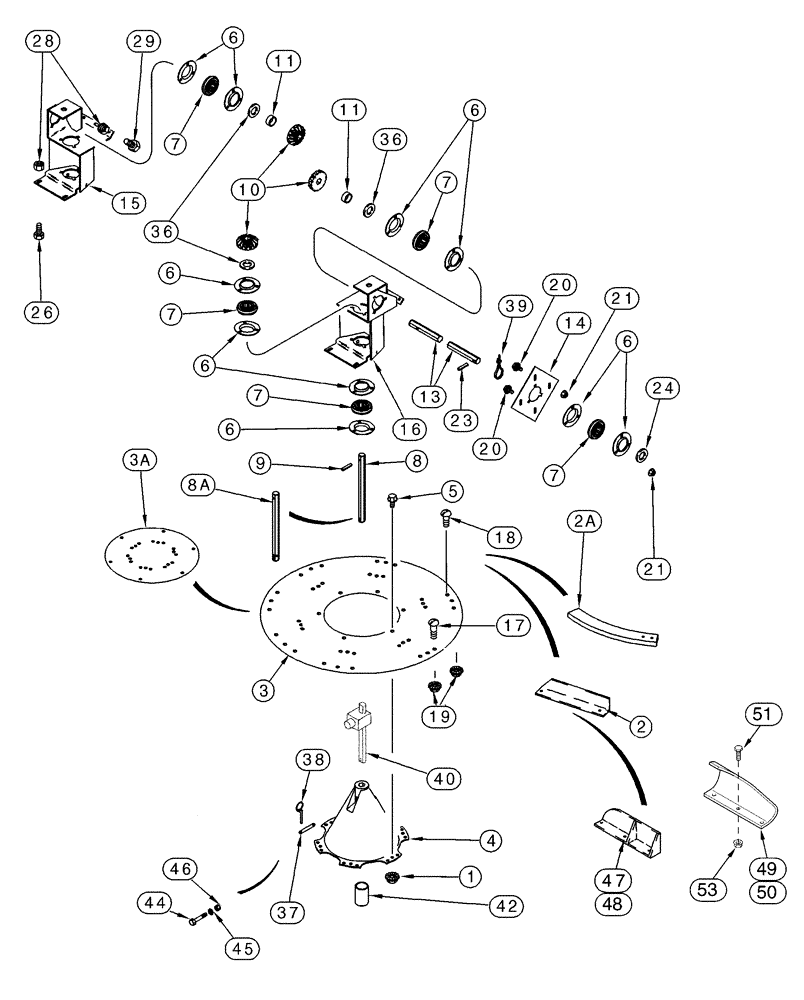

Запчасти Case IH 2377 (09F-01) - STRAW SPREADER (19) - STRAW SPREADER & CHOPPER

1

231-5315

FLANGE NUT,Flg, 5/16"-18

Used with 2, 2B, 3, 3B

24шт.

2

103170A2

BAT

12шт.

With Straw and Chaff Spreader

1шт.

2a

1302790C1

STRIP

Rice

12шт.

With Straw Spreader

1шт.

3

140189A1

DISC

2шт.

With Straw and Chaff Spreader

1шт.

3a

1302791C1

RETAINER

Rice

2шт.

With Straw Spreader

1шт.

4

188218C6

CONE,Spreader Support

2шт.

5

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

5/16 x 1-1/4, Used With 2A, 3A

1шт.

5

409-7524

BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl

5/16 x 1-1/2, Used With 2A, 3A

12шт.

6

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

14шт.

7

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

7шт.

8

128440A1

SHAFT

12 in, Grain, Rice

2шт.

With Straw Spreader

1шт.

8a

109485A1

SHAFT

12 in

2шт.

With Straw and Chaff Spreader

1шт.

9

438-11624

ROLL PIN,6.35mm OD x 38.1mm L

1/4" x 1 1/2", Slotted

2шт.

10

194194C1

GEAR

14T

4шт.

11

87036414

SPACER,26.21mm ID x 31.75mm OD x 15.88mm L

2шт.

13

427270A1

SHAFT

1шт.

14

186506C1

SUPPORT

1шт.

15

109487A2

SUPPORT

Left Hand

1шт.

16

109488A2

SUPPORT

Right Hand

1шт.

17

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1, Used With 2, 3

6шт.

18

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

Used with 2, 3

18шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Used with 2, 3

24шт.

20

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

28шт.

20

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

29шт.

23

87040620

LOCK PIN,9.53mm OD x 38.1mm L, Slotted

1шт.

24

495-81068

WASHER,1 1/32" x 1 1/2" x .030"

1-1/32 x 1-1/2 x 1/32

1шт.

26

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

29

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

4шт.

36

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

1-1/32 x 1-1/2 x 1/16

6шт.

37

120270A2

PIN,9.52mm OD x 78mm L

2шт.

With Straw Spreader

1шт.

38

A33497

LINCH PIN,4.76mm OD Pin

4шт.

With Straw Spreader

1шт.

39

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

6шт.

40

429194A1

COUPLING

2шт.

42

432330A1

TUBE

110 mm (4.33 in)

2шт.

43

140432A1

BOOT

2шт.

With Straw and Chaff Spreader

1шт.

44

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

With Straw and Chaff Spreader

1шт.

45

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

With Straw and Chaff Spreader

1шт.

46

231-1446

NUT,3/8" - 16, Gr 5

2шт.

With Straw and Chaff Spreader

1шт.

47

321372A1

BAT

Right Hand, Tall

3шт.

With Straw and Chaff Spreader

1шт.

48

321373A1

BAT

Left Hand, Tall, Not Illustrated

3шт.

With Straw and Chaff Spreader

1шт.

49

371055A1

BAT

Right Hand, Curved, Service Option Only, Shown

3шт.

50

371056A1

BAT

Left Hand, Curved, Service Option Only, Not Illustrated

3шт.

51

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

18шт.

52

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

2шт.

53

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

18шт.

54

231-5146

FLANGE NUT,3/8"-16

2шт.

400505A1

KIT

Inc. 49 - 54, Service Option Only

1шт.
