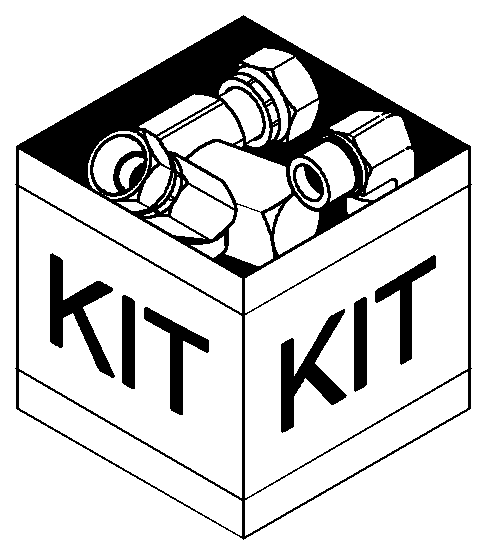

Запчасти Case IH 2377 (09E-25) - KIT AUGER HORZ. EXTENDED WEAR (17) - GRAIN TANK & UNLOADER

1

B96429

KIT

Incl 2 - 18

1шт.

2

1277949C1

SPACER

4шт.

3

1317859C1

SUPPORT

1шт.

4

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

1шт.

5

87379141

AUGER

1шт.

6

47577191

BALL BEARING

1шт.

7

220040A2

SHAFT

1шт.

8

247780

SERRATED NUT,Flg, USR, 3/8"-16

12шт.

9

282176A2

AUGER

1шт.

10

360936R1

RING

1шт.

11

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

12

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

9шт.

13

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

3шт.

14

9635082

NUT,5/16" - 18, Gr 5

2шт.

15

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

16

10516674

LOCK WASHER,M8

2шт.

17

50591

FLANGE,52mm

2шт.

18

47508394

COLLAR

1шт.
