Запчасти Case IH 2377 (09E-11) - UNLOADER - TUBE, UPPER (17) - GRAIN TANK & UNLOADER

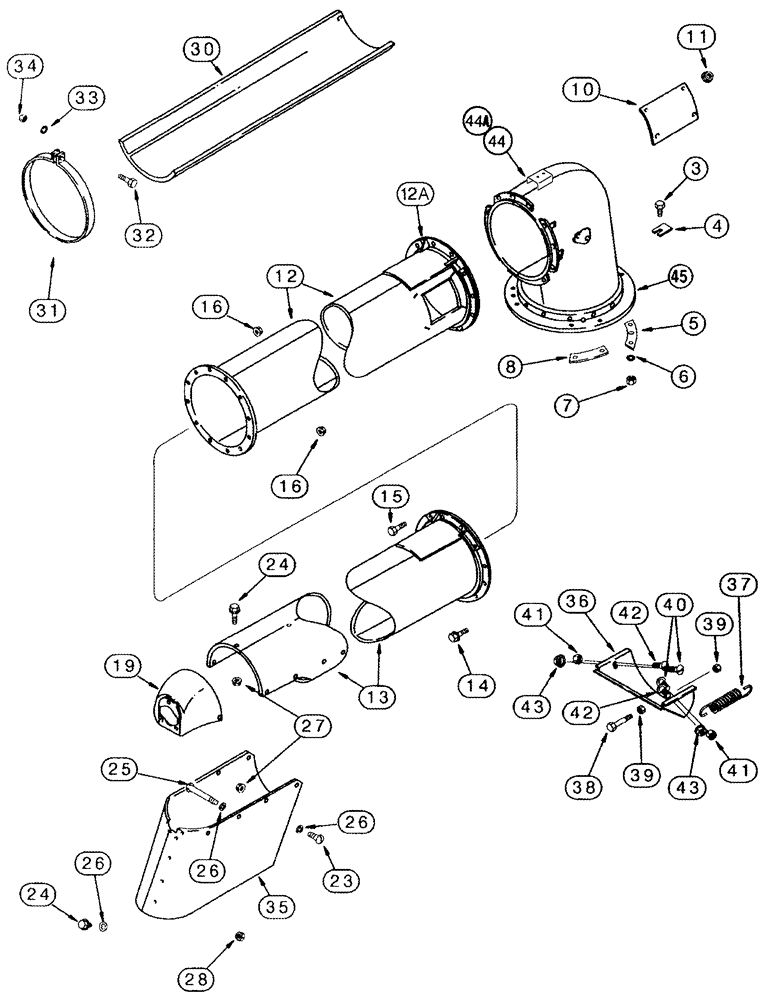

Схема запчастей Case IH 2377 - (09E-11) - UNLOADER - TUBE, UPPER (17) - GRAIN TANK & UNLOADER
3
27
44
16
26
39
33
6
10
26
30
28
25
41
12
14
13
12a
43
4
38
16
5
37
43
42
8
26
36
11
40
45
35
34
7
24
24
32
41
39
19
44a
31
23
15
42

Артикул

Название

Примечание

Количество

3

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

4

151670C1

SHIM

0,036 in

1шт.

5

186657C3

SUPPORT

1шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

8

193472C2

PLATE

1шт.

10

178158C1

PLATE

1шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

12

1317738C1

TUBE,2285 mm Length

Plain, Front, 89.96 in Auger, Inc. 12A

1шт.

12

1317873C1

UNLOADING TUBE,2285 mm Length

Perforated, Front, 89.96 in Auger, Inc 12A

1шт.

12a

178155C1

FLANGE

Flange

2шт.

13

1317783C5

TUBE,2084.01 mm Length

82.47 in Auger, Rear

1шт.

13

1317899C4

TUBE,2998 mm Length

118.031 in Auger, Rear

1шт.

14

409-7612

BOLT,3/8"-16 x 1.09" OAL

18шт.

15

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

16

231-5146

FLANGE NUT,3/8"-16

24шт.

19

182837C2

CAP

Support

1шт.

23

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4-6шт.

24

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

7шт.

25

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

6шт.

26

495-81121

WASHER,.344" x 1 1/2" x .060"

11/32 x 1-1/2 x 1/16

22шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

17шт.

28

231-4115

NUT,5/16"-18, GB

4шт.

30

178165C2

COVER

Perforated

1шт.

31

178166C1

CLAMP

Perforated

4шт.

32

185856C1

ADJUSTMENT SCREW

5/16 x 2

4шт.

33

492-11031

LOCK WASHER,5/16"

4шт.

34

425-105

NUT,5/16"-18, G5

4шт.

35

113488A1

SPOUT, DISCHARGE

SPOUT Down

1шт.

36

115867A1

DOOR

Grain Saver

1шт.

37

1338869C2

SPRING,162mm Free Length

2шт.

38

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

1шт.

39

231-5146

FLANGE NUT,3/8"-16

2шт.

40

477-82516

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1"

1/4 x 1; 8

2шт.

41

425-104

NUT,1/4"-20, Cl 5

4шт.

42

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

2шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

44

248308A2

ELBOW

Inc. 45 - 47, Standard Wear

1шт.

44a

291131A2

ELBOW

Inc. 45 - 47, Extended Wear

1шт.

45

237007A2

RING

1шт.

46

49-516

RIVET,Tr Hd, 5/16" x 1"

5/16 x 1, Not Illustrated

20шт.

47

275-14712

SELF-TAP SCREW,Hex Hd, 1/4" x 3/4"

1/4 x 3/4, Not Illustrated

3шт.

Выбрано товаров: 42
