Запчасти Case IH 2377 (09E-02) - GRAIN TANK - SUPPORTS, UPPER (17) - GRAIN TANK & UNLOADER

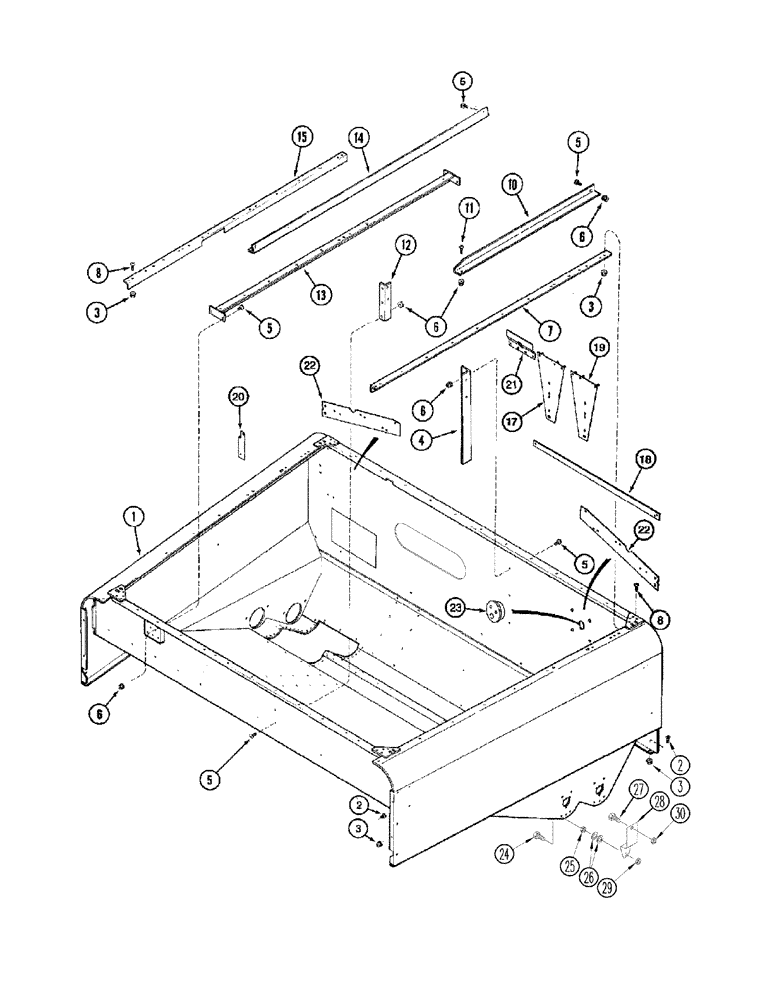

Схема запчастей Case IH 2377 - (09E-02) - GRAIN TANK - SUPPORTS, UPPER (17) - GRAIN TANK & UNLOADER
22
2
6
2
6
3
24
3
21
3
13
5
30
5
12
26
17
7
5
15
27
8
28
6
18
10
1
19
3
22
29
14
4
3
6
5
20
23
8
11
25

Артикул

Название

Примечание

Количество

1

87371346

TANK

Assy, Grain

1шт.

See Figure 09E-01

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

1шт.

2

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

5/16 x 1-1/4

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

4

192765C1

SUPPORT

Front

1шт.

5

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

1шт.

6

231-5146

FLANGE NUT,3/8"-16

1шт.

7

195398C3

SUPPORT

Upper Right Hand

1шт.

8

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

10

188414C6

ANGLE

1шт.

11

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

12

181682C2

SUPPORT

Rear

1шт.

13

192855C1

SUPPORT

1шт.

14

192767C8

SUPPORT

1шт.

15

195397C4

SUPPORT

Upper Left Hand

1шт.

17

255265A3

PLATE

Left Hand Front, Inc. 17A, 17B

1шт.

17a

255267A3

PLATE

1шт.

17b

51-13816

STUD

3шт.

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

3шт.

231-5146

FLANGE NUT,3/8"-16

6шт.

18

255684A1

STRAP

Right Hand Front

1шт.

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

231-5146

FLANGE NUT,3/8"-16

2шт.

19

255269A3

PLATE

Right Hand, Inc. 17A, 17B

1шт.

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

3шт.

231-5146

FLANGE NUT,3/8"-16

6шт.

20

255724A1

SUPPORT

Tool

1шт.

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

21

255448A1

PLATE

Front

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

7шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

22

259235A3

SUPPORT

2шт.

23

258336A1

GROMMET

1шт.

24

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

2шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

26

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

6шт.

27

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

2шт.

28

431114A1

BRACKET

2шт.

29

231-1445

NUT,5/16"-18, GB

2шт.

30

86625057

NUT,#10-24, GB

2шт.

31

129-419

WING NUT,5/16"-18

Not Illustrated

2шт.

32

492-11031

LOCK WASHER,5/16"

Not Illustrated

2шт.

Выбрано товаров: 44
