Запчасти Case IH 2377 (09D-15) - TAILINGS - ELEVATOR DRIVE (16) - GRAIN ELEVATORS & AUGERS

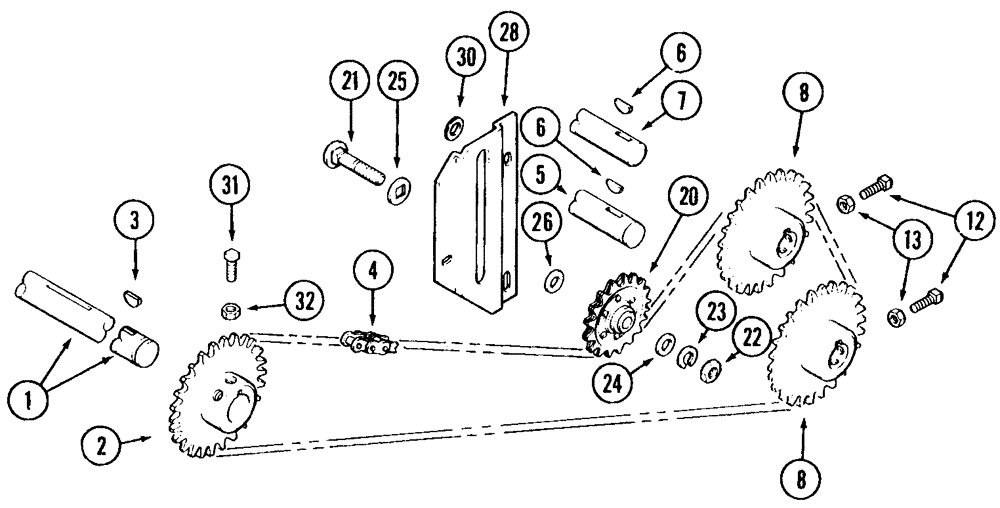

Схема запчастей Case IH 2377 - (09D-15) - TAILINGS - ELEVATOR DRIVE (16) - GRAIN ELEVATORS & AUGERS
8
4
21
6
24
2
8
23
30
20
7
3
26
1
32
6
12
22
5
25
28
13
31

Артикул

Название

Примечание

Количество

1

1319247C1

SHAFT

1шт.

2

296022A1

SPROCKET

27T, Drive

1шт.

3

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

4

1302671C92

CHAIN,#50, 156 Links x 15.88mm = 2476.5mm

Order 1791D (155), 241-1315 (1), Tailings Drive

1шт.

5

192563C1

AUGER

Delivery

1шт.

See Figure 09D-08

1шт.

6

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

7

191785C1

SHAFT

1шт.

8

1345472C1

SPROCKET

27T

2шт.

12

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

2шт.

13

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

20

103244

SPROCKET

17T

1шт.

21

433-1048

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3", Gr 5

5/8 x 3 in

1шт.

22

425-1010

NUT,5/8"-11, G5

1шт.

23

492-11062

BEARING WASHER,5/8"

1шт.

24

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

4шт.

25

498-81010

SQ HOLE WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

Square Hole, 21/32 x 1-1/2 x 3/32

2шт.

26

495-81182

WASHER,21/32" x 1 1/4" x .060"

21/32 x 1-1/4 x 3/64

2шт.

28

1302069C2

SUPPORT

1шт.

30

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

3шт.

31

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

2шт.

32

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

Выбрано товаров: 22
