Запчасти Case IH 2377 (09D-13) - TAILINGS - ELEVATOR HOUSING AND CONVEYOR (16) - GRAIN ELEVATORS & AUGERS

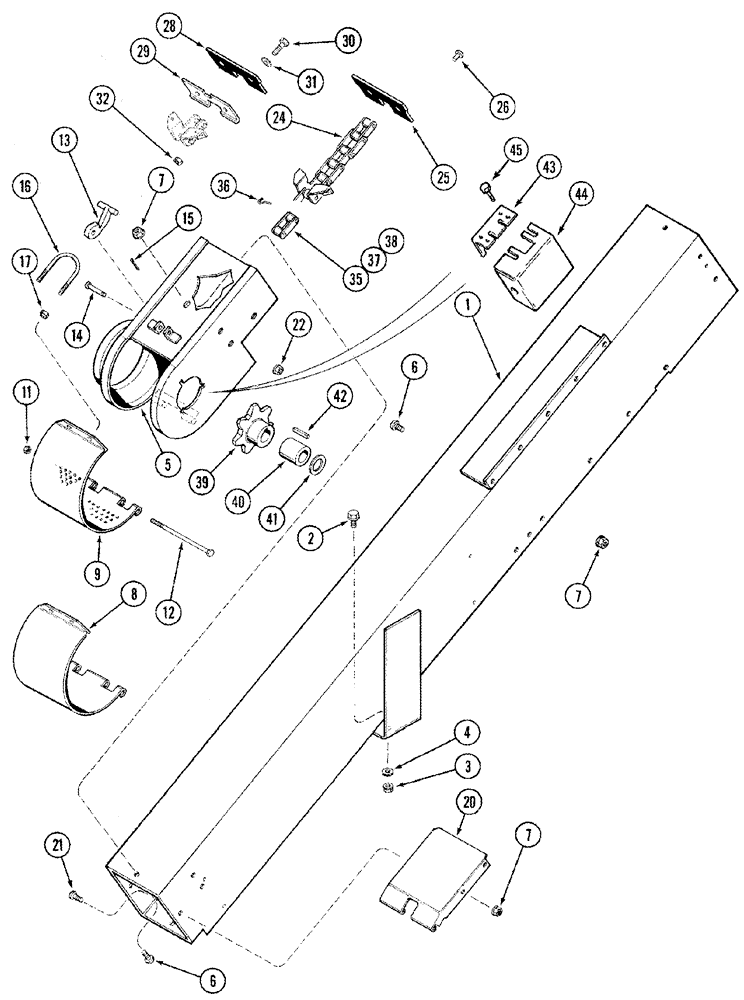

Схема запчастей Case IH 2377 - (09D-13) - TAILINGS - ELEVATOR HOUSING AND CONVEYOR (16) - GRAIN ELEVATORS & AUGERS
24
6
43
1
28
37
7
9
31
39
35
2
8
4
7
32
16
11
30
41
21
36
25
40
15
17
38
26
22
6
45
20
13
42
14
44
3
5
7
29
12

Артикул

Название

Примечание

Количество

1

192430C3

TUBE

1шт.

2

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

3

231-5146

FLANGE NUT,3/8"-16

2шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

8шт.

5

222814A2

BASE

1шт.

6

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

8шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

8

156910C1

DOOR

Non-perforated

1шт.

9

174193C1

DOOR

Perforated

1шт.

11

231-4115

NUT,5/16"-18, GB

1шт.

12

413-5104

BOLT,Hex, 5/16" - 18 x 6-1/2", Gr 5

5/16 x 6-1/2

1шт.

13

155909C1

LATCH

1шт.

14

439-1420

HEADED PIN,1/4" x 1 1/4"

1/4 x 1-1/4; 2

1шт.

15

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

16

664360R1

BOLT,U, 1/4" - 20 x 69.65"

1шт.

17

231-1444

NUT,1/4"-20, GB

2шт.

20

191790C2

END

1шт.

21

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

21

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

2шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

1303114C91

ELEVATOR CHAIN,C550, 112 Links x 41.4mm = 4636.8mm

Conveyor, Inc. 24, 25 (27), 26 (54), 27 (27)

1шт.

24

NSS

NOT SOLD SEPARAT

Chain, Tailings Elevator Conveyor Assy, Inc. 35 - 38

1шт.

1303123C91

ELEVATOR CHAIN

Flight, Inc. 25 - 27

27шт.

25

1303116C1

RUBBER FLIGHT

1шт.

26

185315C1

RIVET

3/8 x 5/8

2шт.

27

185330C91

LINK

Attaching

1шт.

1303124C92

RUBBER FLIGHT

/Steel Assy, Inc. 28 - 32

1шт.

28

1303116C1

RUBBER FLIGHT

1шт.

29

1303125C1

STEEL FLIGHT

1шт.

30

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

31

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

32

232-4115

LOCK NUT,5/16"-18, GC

2шт.

35

241-15113

LINK,41.4mm Pitch

No. C550, 1-5/8 P

1шт.

36

23442R1

PIN,2.36mm OD

S Type, No. 550

1шт.

37

241-18113

LINK,41.4mm Pitch

Offset, No. C550, 1-5/8 P

1шт.

38

241-12113

LINK,Chain, 41.4mm Pitch

No. C550, 1-5/8 P

1шт.

39

144031A1

SPROCKET

7T

1шт.

40

144038A1

SPACER

1-1/4 x 1-3/8

1шт.

41

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

1-9/32 x 1-3/4 x 1/16

1шт.

42

Q1443

KEY,5/16" Sq x 1 1/2", Par

1шт.

43

183869C3

SUPPORT

Australia Only

1шт.

44

177449A2

COVER

Australia Only

1шт.

45

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

1/4 x 1/2

2шт.

Выбрано товаров: 43
