Запчасти Case IH 2377 (09D-12) - CLEANING SHOE DOOR - SHIELD - MODELS WITH STRAW AND CHAFF SPREADER (16) - GRAIN ELEVATORS & AUGERS

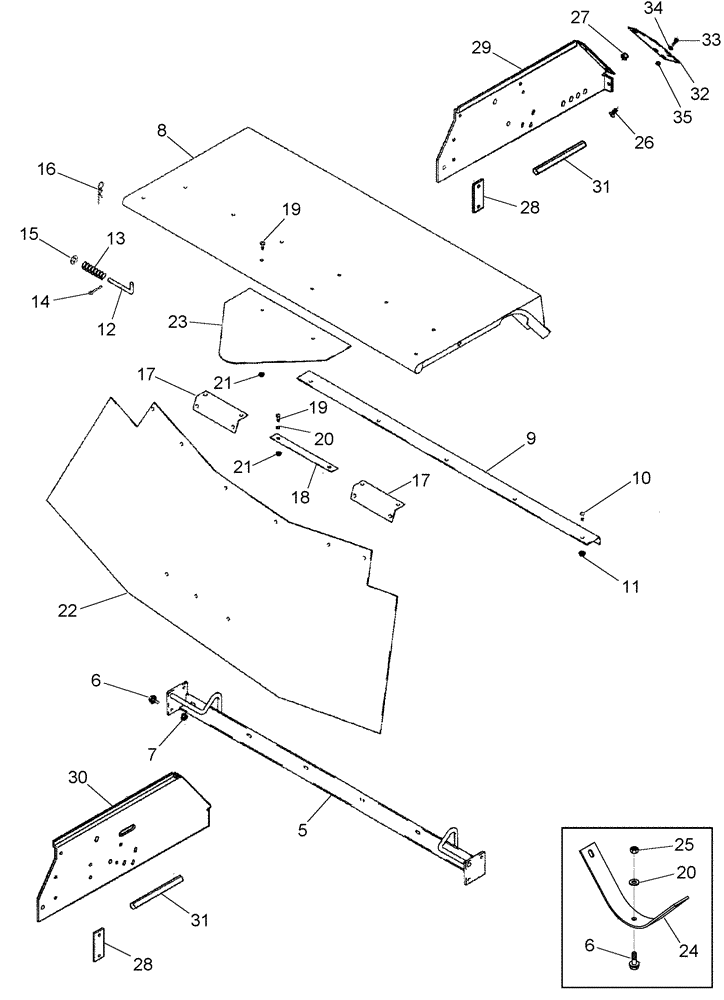

Схема запчастей Case IH 2377 - (09D-12) - CLEANING SHOE DOOR - SHIELD - MODELS WITH STRAW AND CHAFF SPREADER (16) - GRAIN ELEVATORS & AUGERS
11
13
20
10
7
35
19
31
25
14
5
26
12
24
27
6
6
18
16
29
8
31
19
17
22
34
33
28
20
21
23
15
32
17
21
28
9
30

Артикул

Название

Примечание

Количество

5

126091A1

SUPPORT

1шт.

6

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4-7шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

8

87485973

DOOR

1шт.

9

126094A2

SUPPORT

1шт.

10

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

6шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

12

186736C3

ROD

2шт.

13

540815R2

SPRING

2шт.

14

432-612

COTTER PIN,3/32" x 3/4"

2шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

16

586591R1

COTTER PIN

1/8

2шт.

17

137480A1

SUPPORT

2шт.

18

137527A2

SUPPORT

1шт.

19

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

10шт.

20

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

8-11шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

22

87301089

SHIELD,571mm W x 1680.1mm L

Rubber

1шт.

23

190692A2

DEFLECTOR

1шт.

24

87300945

STRAP

1шт.

25

231-5345

FLANGE NUT,Flg, 5/16"-18

3шт.

26

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

4шт.

26

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

4шт.

27

231-5146

FLANGE NUT,3/8"-16

4шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

28

1325376C1

PLATE

Hood Extension

2шт.

29

87307501

PLATE

Hood Extension, Right Hand

1шт.

With Straw Chopper

1шт.

30

87307502

PLATE

Hood Extension, Left Hand

1шт.

With Straw and Chaff Spreader

1шт.

31

1968976C1

SEALING STRIP

2шт.

32

316715A1

SEAL

Rubber, Hood Extension

2шт.

Used with 1322478C6

1шт.

33

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

34

495-21044

WASHER,3/8"

2шт.

35

231-4146

NUT,3/8"-16, GB

2шт.
