Запчасти Case IH 2377 (09D-11) - TAILINGS AUGER TROUGH PANEL AND GATE (16) - GRAIN ELEVATORS & AUGERS

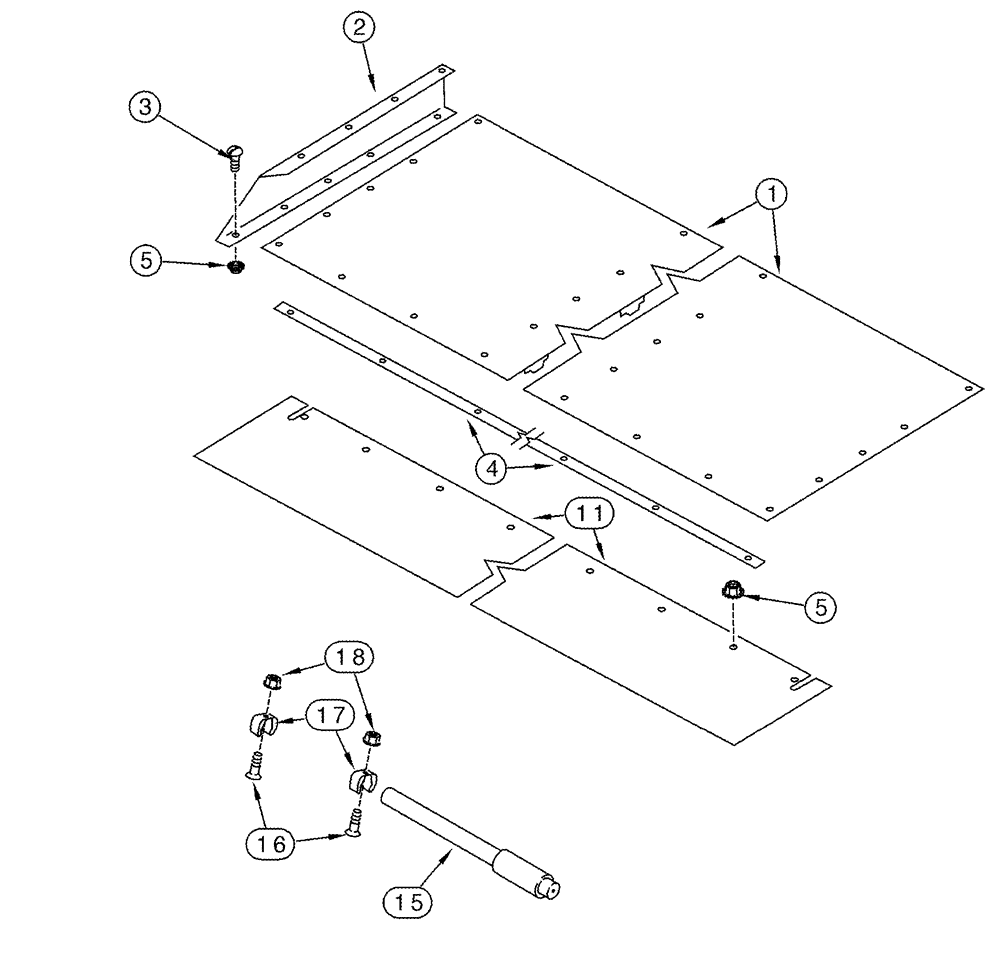

Схема запчастей Case IH 2377 - (09D-11) - TAILINGS AUGER TROUGH PANEL AND GATE (16) - GRAIN ELEVATORS & AUGERS
4
11
5
16
1
3
18
15
17
2
5

Артикул

Название

Примечание

Количество

1

1970423C1

SHEET

1шт.

2

1346963C1

SUPPORT

2шт.

3

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

8шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

3

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

2шт.

4

122851A1

STRAP

1шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

11

1979194C2

SEAL

1шт.

15

106743A1

HANDLE

1шт.

Note: Item 15 is Used to Adjust Shoe Sieves On Figure 09B-23

1шт.

16

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

No. 10 x 1/2

2шт.

17

106744A1

CLIP

2шт.

18

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

Выбрано товаров: 13
