Запчасти Case IH 2377 (09D-10) - TAILINGS AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS

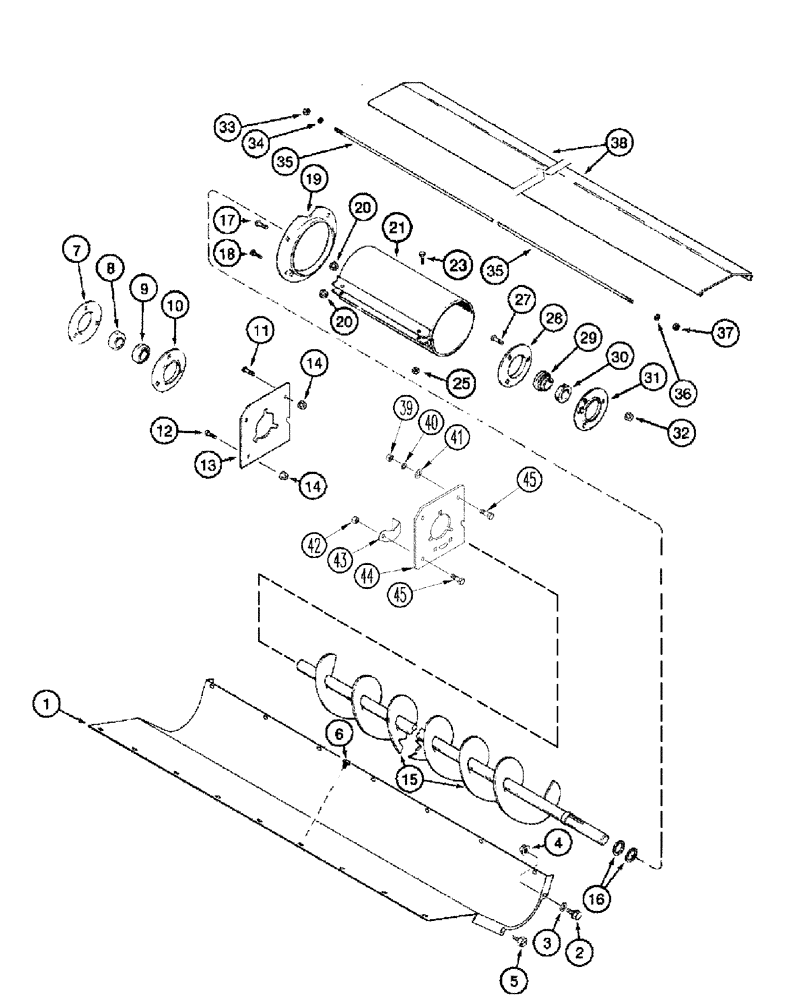

Схема запчастей Case IH 2377 - (09D-10) - TAILINGS AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS
33
31
45
10
34
1
2
23
43
18
20
42
25
44
3
29
20
36
6
14
14
39
12
13
8
7
27
30
37
38
17
16
32
9
15
41
4
5
11
35
35
28
45
21
19
40

Артикул

Название

Примечание

Количество

1

1346938C2

TROUGH

1шт.

2

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

3

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

4

231-5345

FLANGE NUT,Flg, 5/16"-18

5/16

1шт.

5

138558A1

SELF-TAP SCREW,Hex Flg, 5/16" - 18 x 13/16", HDN

5/16 x 13/16

8шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

7

87430514

FLANGE

With Fitting

1шт.

8

38767

COLLAR,Lock, 31.9mm ID x 44mm OD 15.9mm Thk

With Set Screw

1шт.

9

156011C92

BALL BEARING

1шт.

10

86636169

FLANGED BEARING

1шт.

11

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

1шт.

12

138558A1

SELF-TAP SCREW,Hex Flg, 5/16" - 18 x 13/16", HDN

5/16 x 13/16

1шт.

13

183158C1

COVER

1шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

15

144028A2

AUGER

1шт.

16

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

1-9/32 x 1-3/4 x 1/16

1шт.

17

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

1шт.

18

138558A1

SELF-TAP SCREW,Hex Flg, 5/16" - 18 x 13/16", HDN

5/16 x 13/16

1шт.

19

199665A2

FLANGE

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

21

199700A3

TUBE

Non-perforated

1шт.

21

240811A2

TUBE

Perforated, Not Illustrated

1шт.

23

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

23

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

25

231-4115

NUT,5/16"-18, GB

3шт.

25

425-285

FLANGE NUT,Flg, 5/16"-18, G5

5/16

1шт.

27

477-73832

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 2"

3/8 x 2

1шт.

27

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4

3шт.

27

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

2шт.

28

86636169

FLANGED BEARING

Grooved, Right Hand

2шт.

29

156011C92

BALL BEARING

2шт.

30

38767

COLLAR,Lock, 31.9mm ID x 44mm OD 15.9mm Thk

With Set Screw

2шт.

31

87430514

FLANGE

With Fitting

2шт.

32

231-5146

FLANGE NUT,3/8"-16

9шт.

33

231-5345

FLANGE NUT,Flg, 5/16"-18

5/16

1шт.

34

492-11031

LOCK WASHER,5/16"

1шт.

35

185197C1

ROD

1шт.

36

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

37

425-105

NUT,5/16"-18, G5

1шт.

38

185196C1

DOOR

1шт.

39

129-409

WING NUT,1/4"-20

1шт.

40

492-11025

LOCK WASHER,1/4"

1шт.

41

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

1шт.

42

231-5344

FLANGE NUT,Flg, 1/4"-20

1шт.

43

429985A2

COVER

Plate, Grain Cleanout

1шт.

44

430002A1

PLATE

Cover

1шт.

45

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4 x 3/4

2шт.

46

446246A1

STRAP

Not Illustrated

2шт.

Выбрано товаров: 48
