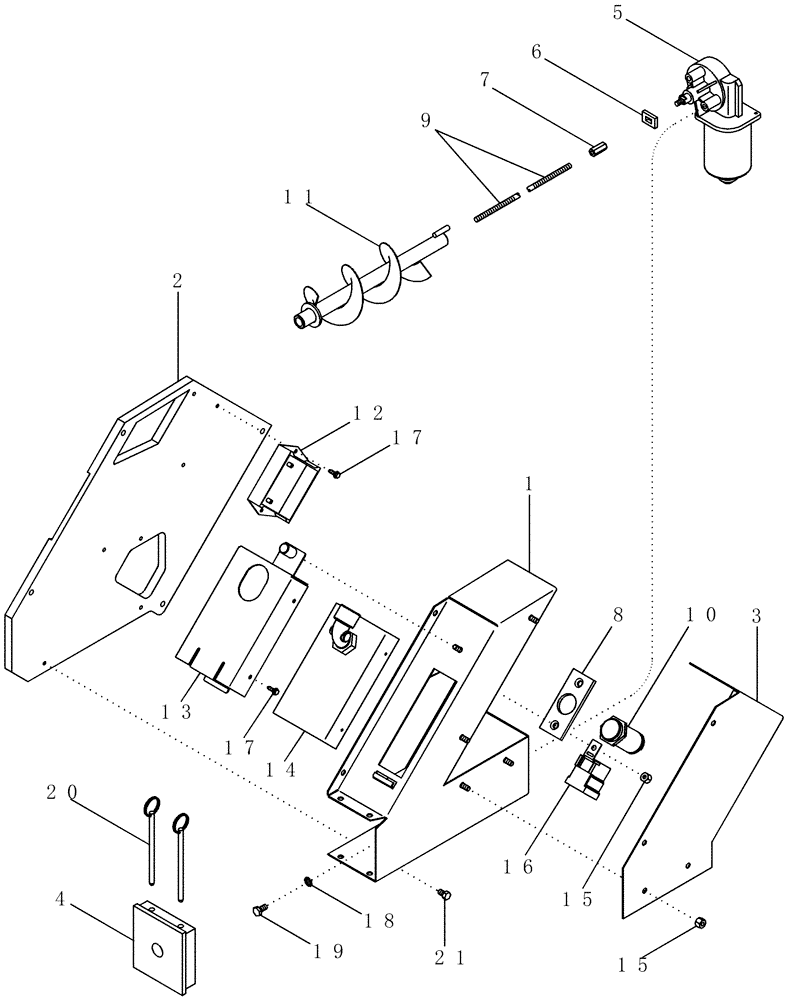

Запчасти Case IH 2377 (09D-05) - GRAIN ELEVATOR HEAD, INCLINED - AFS MOISTURE SENSOR (16) - GRAIN ELEVATORS & AUGERS

1

333033A1

HOUSING

Outer Moisture Sensor

1шт.

2

363860A1

SUPPORT

1шт.

3

361020A1

COVER

Moisture Sensor

1шт.

4

363154A1

BLOCK

1шт.

5

364837A1

MOTOR, ELECTRIC

By-pass Moisture Sensor

1шт.

364837A1R

REMAN-ELECTRIC MOTOR

2377 BTW HAJ292001 & HAJ300000

1шт.

364837A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

6

364845A1

GUIDE

Auger Driving

1шт.

7

368947A1

COUPLING,1/4" - 20

1/4 x 7/8

1шт.

8

368948A1

PLATE

Proximity Mounting

1шт.

9

364843A1

MOUNTING ROD

Guide

1шт.

10

364838A1

SWITCH

Moisture Sensor Proximity

1шт.

11

364194A1

AUGER

1шт.

12

364842A2

CONTROL UNIT

Automatic Cleanout

1шт.

13

364195A1

COVER

1шт.

14

368950A1

SENSOR

Moisture Monitor

1шт.

15

231-1404

LOCK NUT,1/4"-20, GB

1/4

6шт.

16

293256A2

RELAY,12V

40 AMP

1шт.

17

280-2448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

No. 8 x 1/2

10шт.

18

493-41026

LOCK WASHER,Ext Tooth, 1/4"

3шт.

19

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

20

373712A1

PIN

Quick Release

2шт.

21

275-1478

SELF-TAP SCREW,1/4" - 14 x 1/2"

1/4 x 1/2

5шт.
