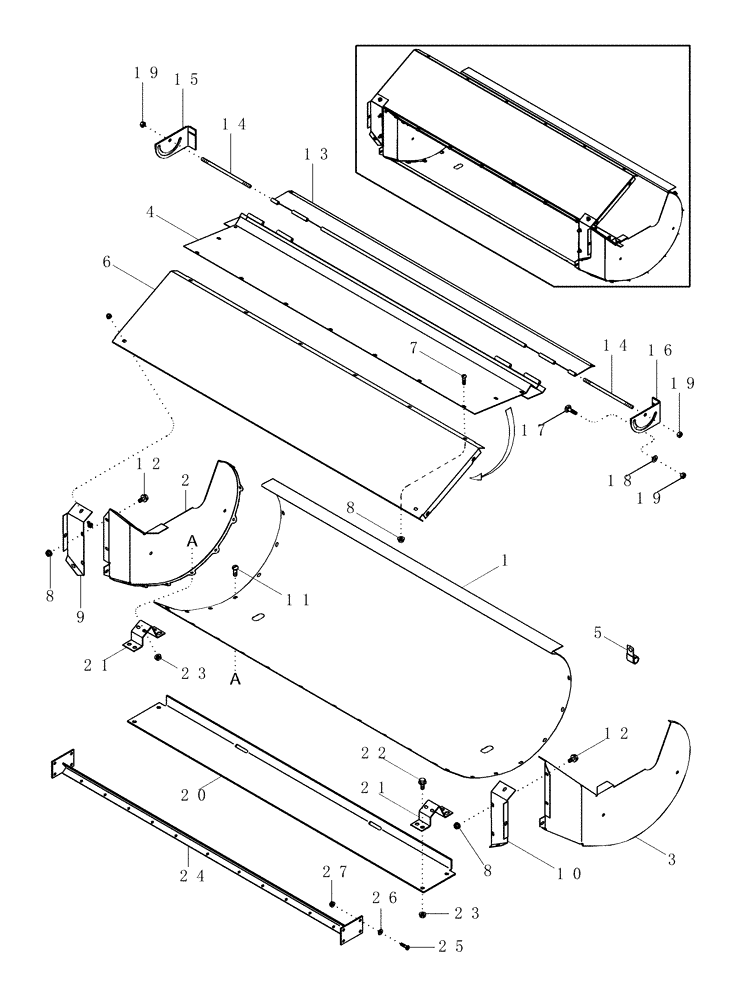

Запчасти Case IH 2377 (09C-04) - CLEANING FAN - HOUSING (15) - BEATER & CLEANING FANS

1

1347466C1

HOUSING

1шт.

2

1347012C2

PLATE

Left Hand

1шт.

3

1347013C2

PLATE

Right Hand

1шт.

4

1541547C1

PLATE

Upper

1шт.

5

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

12.7 mm

1шт.

6

1989340C1

PLATE

1шт.

7

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

7шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

29шт.

9

1541928C1

SUPPORT

Filler Left Hand

1шт.

10

1541929C1

SUPPORT

Filler Right Hand

1шт.

11

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

12шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

10шт.

13

1347030C1

HOOD

1шт.

14

185197C1

ROD

1шт.

15

1989693C2

PLATE

Left Hand

1шт.

16

1989694C2

PLATE

Right Hand

1шт.

17

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

18

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

11/32 x 1 x 3/64

2шт.

19

231-5345

FLANGE NUT,Flg, 5/16"-18

5/16

2шт.

20

1989627C2

SUPPORT

Front

1шт.

21

1541543C1

BRACKET

Front

2шт.

22

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

23

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

24

191928C1

SUPPORT

Rear

1шт.

25

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

6шт.

26

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

4шт.

27

231-5146

FLANGE NUT,3/8"-16

6шт.
