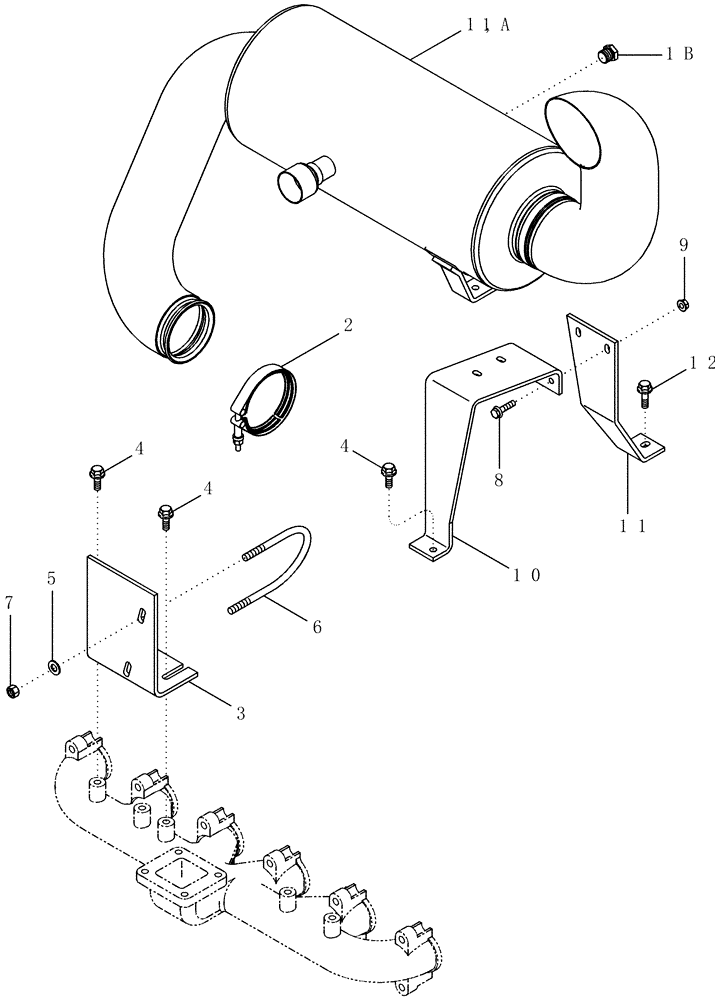

Запчасти Case IH 2377 (02-13) - EXHAUST SYSTEM - MUFFLER - BSN HAJ0295001 (01) - ENGINE

1

416716A1

MUFFLER

1шт.

1a

416717A1

MUFFLER

With Spark Arrester, Inc. 1B

1шт.

1b

217-409

PLUG,Hex Hd, 1/2" - 14 NPT

1шт.

2

A170807

CLAMP,102mm ID

1шт.

3

430386A2

SUPPORT

Rear

1шт.

4

857-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.

5

495-81140

WASHER,13/32" x 1 1/4" x .060"

4шт.

6

430388A1

U-BOLT

BOLT "U" 4"

1шт.

7

231-4116

NUT,3/8"-16, GB

3/8

2шт.

8

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

5/16 x 1-1/4

2шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

10

87433615

SUPPORT

Muffler

1шт.

11

430016A2

BRACKET

Engine Muffler

1шт.

12

87028324

HEX SOC SCREW,BTN HD, M10 x 1.5 x 20mm, Cl 8.8

M10 x 30

1шт.
