(09B-32[02]) - KIT EXTENDED WEAR VANES WITH HARDWARE

Запчасти Case IH 2377 (09B-32[02]) - KIT EXTENDED WEAR VANES WITH HARDWARE (14) - ROTOR, CONCANVES & SIEVE

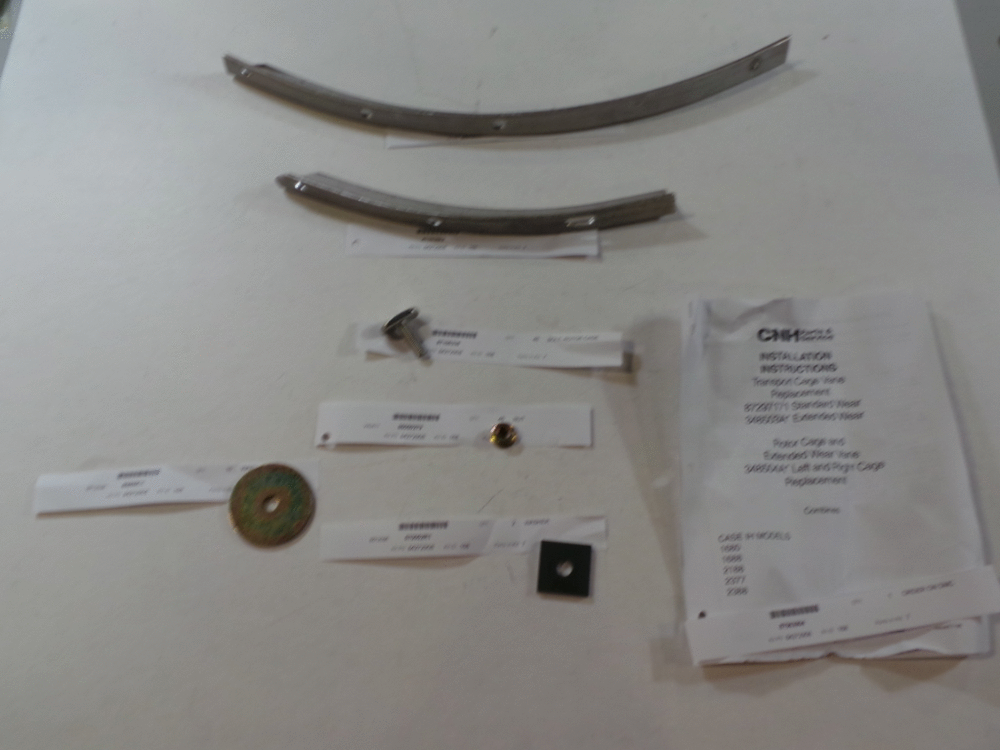

Схема запчастей Case IH 2377 - (09B-32[02]) - KIT EXTENDED WEAR VANES WITH HARDWARE (14) - ROTOR, CONCANVES & SIEVE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84272908

SERVICE KIT

Incl 2 - 8

1шт.

2

87563904

INSTRUCTION

1шт.

3

570052R1

SQ HOLE WASHER,11mm ID x 38mm OD x 4.8mm Thk

2шт.

4

55805C1

WASHER,11.13mm ID x 63.5mm OD x 4.55mm Thk

10шт.

5

86050279

FLANGE NUT,M10 x 1.5, Cl 10

46шт.

6

87106338

BOLT

46шт.

7

411518A2

VANE

Extended Wear Short Transport

3шт.

8

347917A1

VANE

Extended Wear Transport

13шт.
