Запчасти Case IH 2377 (02-12) - AIR CLEANER - AIR INDUCTION SYSTEM (01) - ENGINE

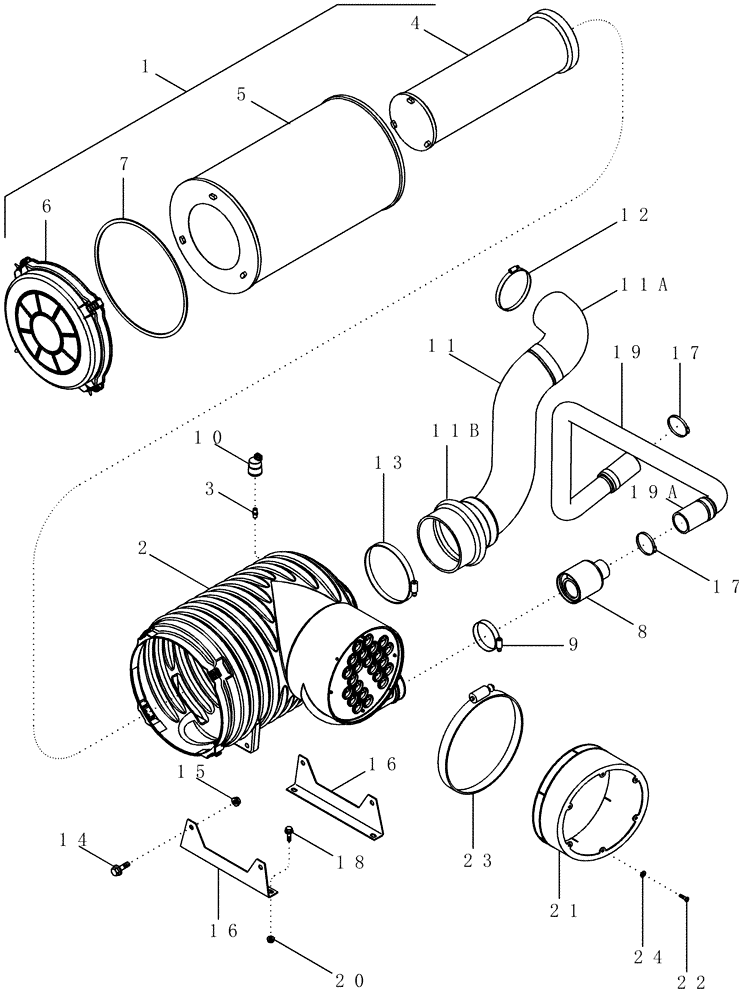

Схема запчастей Case IH 2377 - (02-12) - AIR CLEANER - AIR INDUCTION SYSTEM (01) - ENGINE
17
18
12
10
8
13
22
7
1
16
4
19a
11b
6
2
5
24
14
9
17
21
20
15
19
16
3
23
11a
11

Артикул

Название

Примечание

Количество

1

414188A3

AIR CLEANER

Includes 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

86976679

ADAPTER

1шт.

4

86998332

AIR FILTER,Secondary, 133.1mm ID x 175.1mm OD x 541.7mm L, Pleatloc

Secondary

1шт.

5

86998333

AIR FILTER,Primary, 172.3mm ID x 332.4mm OD x 555.2mm L, Pleatloc

Primary

1шт.

6

87414982

COVER

Includes 7

1шт.

7

87414805

GASKET,336.8mm ID x 347.4mm OD x 11mm Thk

1шт.

8

86983468

CHECK VALVE

Check Valve

1шт.

9

214-3264

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm, W/ Liner

1шт.

10

279492A1

RESTRICTION SWITCH

Air Restriction

1шт.

11

446432A2

AIR INTAKE TUBE

Air Inlet

1шт.

11a

86984234

ELBOW,101.6mm ID x 282.439mm L

Inlet

1шт.

11b

446434A1

TUBE

1шт.

12

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

1шт.

13

214-32112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm, W/ Liner

1шт.

14

409-7632

BOLT,Hex Flg, 3/8" - 16 x 2", Spcl

3/8 x 2

4шт.

15

231-5346

FLANGE NUT,Flg, 3/8"-16

4шт.

16

87414123

SUPPORT

2шт.

17

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

2шт.

18

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

19

87408778

TUBE

1шт.

19a

87402766

HOSE

2шт.

20

131-137

SPRING NUT,Ret, 5/16"-18

4шт.

21

451775A1

DUCT

1шт.

22

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

1/4 x 3/4

6шт.

23

87012918

HOSE CLAMP,64mm - 317.5mm

1шт.

24

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

6шт.

25

231-1444

NUT,1/4"-20, GB

Not Illustrated

6шт.

Выбрано товаров: 28
