Запчасти Case IH 2377 (09B-24) - CHAFFER - SIEVE (14) - ROTOR, CONCANVES & SIEVE

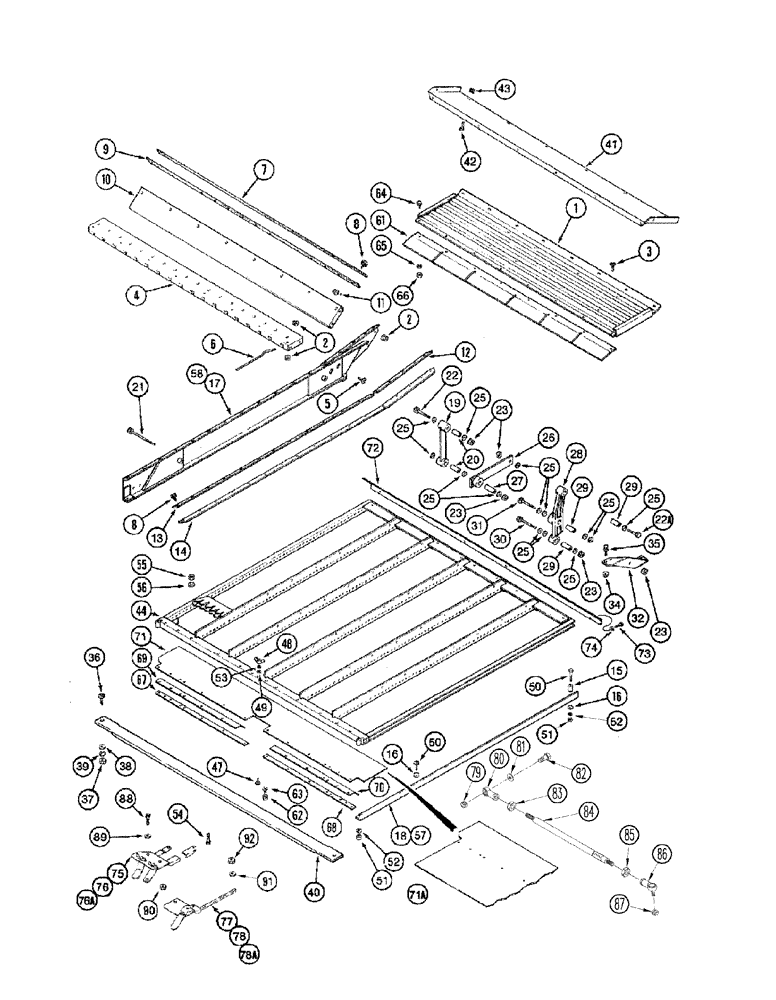

Схема запчастей Case IH 2377 - (09B-24) - CHAFFER - SIEVE (14) - ROTOR, CONCANVES & SIEVE
43
16
56
92
77
65
89
6
18
13
82
2
28
71
68
23
73
11
69
48
50
52
25
70
17
4
25
37
80
79
81
23
14
21
53
8
40
74
25
2
62
16
12
58
44
76
63
67
31
50
84
52
39
75
64
19
32
42
88
78
66
7
41
3
27
15
57
38
47
90
29
34
36
25
20
49
61
91
51
76a
1
23
22a
55
30
35
8
86
25
72
78a
54
9
25
25
5
51
23
10
67
83
29
26
85
71a
22
29
25

Артикул

Название

Примечание

Количество

1

1312938C1

GRAIN PAN

GRAINPAN

1шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

1шт.

4

1312969C1

SUPPORT

1шт.

5

460-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16 x 3/4; 8

4шт.

6

175114C1

FINGER,Formed, 1 Prong, 264mm L

Short

27шт.

6

1312476C1

FINGER,Formed, 1 Prong, 495.5mm L

Long

27шт.

7

192050C2

BAR

1шт.

8

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

1/4 x 1/2

1шт.

9

192049C1

SEALING STRIP

1шт.

10

192045C1

SUPPORT

1шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

12

192052C3

BAR

Short

2шт.

13

1325332C2

BAR

Long

2шт.

14

1325331C1

SEALING STRIP

2шт.

15

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

3/8 ID x 1

2шт.

16

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

13/32 x 1 x 11/64

2шт.

17

1322452C2

RAIL

1шт.

18

1325333C3

SUPPORT

Left Hand

1шт.

19

1957455C1

ARM

Inc. 20

2шт.

20

1330324C1

BUSHING

2шт.

21

426-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 8

5/8 x 7-1/2; 8

2шт.

22

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

2шт.

22a

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

2шт.

23

232-41110

NUT,5/8"-11, GC

10шт.

23

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8

1шт.

25

496-11066

WASHER,21/32" x 1 5/16" x .095", HDN

26шт.

25

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

29/32 x 1-1/2 x 7/64

4шт.

26

1330357C1

ARM

Inc. 27

2шт.

27

1330324C1

BUSHING

1шт.

28

1957460C2

LEVER

Inc. 29

2шт.

29

1330323C2

BUSHING

5/8 x 1-1/2 x 2-57/64

3шт.

30

426-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

5/8 x 6; 8

2шт.

31

433-1080

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

5/8 x 5

2шт.

32

1968827C1

SUPPORT

Left Hand

1шт.

33

1968828C1

SUPPORT

Right Hand, Not Illustrated

1шт.

34

231-5146

FLANGE NUT,3/8"-16

8шт.

35

409-7612

BOLT,3/8"-16 x 1.09" OAL

8шт.

36

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

1шт.

37

425-105

NUT,5/16"-18, G5

1шт.

38

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

11/32 x 1 x 1/16

1шт.

39

492-11031

LOCK WASHER,5/16"

1шт.

40

1322458C3

SUPPORT

1шт.

41

192065C1

SUPPORT

1шт.

42

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

14шт.

42

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

5/16 x 1-1/4

8шт.

42

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

2шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

14шт.

44

1322673C6

GRAIN SIEVE

1-5/8, Closz Slat Chaffer, Inc 76, 77, 88 - 93

1шт.

44

374476A1

GRAIN SIEVE

1-5/8, Closz Slat Chaffer, Inc. 76A, 78A, 88 - 93

1шт.

44

1322659C6

GRAIN SIEVE

1-5/8, Corn Slat Chaffer, Inc. (1 each) 47, 48, 53, 64, 76, 77, 78C

1шт.

44

1347372C7

GRAIN SIEVE

Petersen Chaffer, Inc. (1 each) 47 - 48A, 53, 64, 75, 78, 78C; (2 each) 48A

1шт.

44

1322467C6

GRAIN SIEVE

1-1/8, Closz Slat, Adjustable Chaffer, Inc. (1 each) 47 - 48A, 53, 64; (2 each) 49, 75, If Used

1шт.

44

387443A1

GRAIN SIEVE

1-1/8, Closz Slat, Adjustable Chaffer, Inc. (1 each) 48, 64, 76A, 78A, 88; (2 each) 89, 91, 92; (3 each) 48, 53, 78B, 90, 93, If Used (Shown)

1шт.

47

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2

1шт.

48

129-409

WING NUT,1/4"-20

(3 each) Used with 387443A1, 374476A1

1-3шт.

48

231-4144

NUT,1/4"-20, GB

1шт.

48a

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16"), Used With 1322673C6, 1322659C6, 1347372C7

2шт.

49

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16, (2 each) Used with 1322467C6; (3 each) Used with 387443A1, 374476A1

2-3шт.

50

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

51

429-106

NUT,3/8"-16, G8

3/8; 8

4шт.

52

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

53

492-11025

LOCK WASHER,1/4"

(3 each) Used with 387443A1, 374476A1

1-3шт.

54

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

7шт.

54

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

55

232-4115

LOCK NUT,5/16"-18, GC

14шт.

56

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

11/32 x 1-1/4 x 1/16

14шт.

57

1325334C3

SUPPORT

Right Hand

1шт.

58

1322453C2

RAIL

Right Hand

1шт.

61

1994858C1

COVER

1шт.

62

1327799C2

FLANGE BOLT,Hex, 3/8" - 16 x 1.25", Gr 5, Coated

2шт.

63

492-11038

LOCK WASHER,3/8"

2шт.

64

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

65

492-11025

LOCK WASHER,1/4"

8шт.

66

425-104

NUT,1/4"-20, Cl 5

8шт.

67

1338345C2

RETAINER

Left Hand

1шт.

68

1338346C1

RETAINER

Right Hand

1шт.

69

1322698C3

ANGLE

Left Hand Rear

1шт.

70

1322699C3

ANGLE

Right Hand Rear

1шт.

71

1979332C4

SEAL,3.05mm Thk

1шт.

With Straw Spreader

1шт.

71a

124004A2

SEAL

1шт.

With Straw and Chaff Spreader

1шт.

72

120001A1

DEFLECTOR

Used With 1347372C7

1шт.

73

281-5458

SELF-TAP SCREW,Hex Washer, 0.19" - 24 x 1/2"

No. 10 st x 1/2

6шт.

74

495-31022

WASHER,#10

6шт.

75

280367A2

LEVER

Rear, Used With 1322467C6, 1347372C7

1шт.

76

280369A2

LEVER

Rear, Used With 1322659C6, 1322673C6

1шт.

76a

418798A1

LEVER

Rear, Used With 387443A1, 374476A1

1шт.

77

280365A2

LEVER

Front, Used With 1322659C6, 1322673C6

1шт.

78

280375A1

LEVER

Front, Used With 1347372C7

1шт.

78a

418799A1

LEVER

Front, Used With 387443A1, 374476A1

1шт.

78b

418797A1

BUSHING,10.5mm ID x 16mm OD x 7mm L

Used With 387443A1, 374476A1

3шт.

78c

120667A1

PLATE

Indicator, Double Adjustment Lever, Used With 1322467C6, 1347372ZC7, 1322659C6, 1322673C6Not Illustrated

1шт.

79

231-4146

NUT,3/8"-16, GB

1шт.

80

427179A1

BALL JOINT HEAD,3/8" - 24

End

1шт.

81

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

82

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

83

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

84

407139A2

ADJUSTMENT ROD

Adjustment, Upper Chaffer Sieve

1шт.

85

129-289

JAM NUT,Jam, 3/8"-24, G5, LH

1шт.

86

403123A1

BALL JOINT,3/8" - 24

End, Studded

1шт.

87

232-4646

LOCK NUT,3/8"-24, GC

1шт.

88

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

Used with 387443A1, 374476A1

1шт.

88

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

Used with 387443A1, 374476A1

1шт.

88

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

Used with 387443A1, 374476A1

1шт.

89

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm, Used with 387443A1, 374476A1

2шт.

90

832-10410

NUT,M10 x 1.5, Cl 8

Used with 387443A1, 374476A1

3шт.

91

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Used With 387443A1, 374476A1

2шт.

92

832-10408

NUT,M8 x 1.25, Cl 8.8

Used with 387443A1, 374476A1

2шт.

93

433-412

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5

(5), Used with 387443A1, 374476A1

3шт.

Выбрано товаров: 111
