Запчасти Case IH 2377 (09B-18) - CONCAVES - ANCHOR SUPPORTS (14) - ROTOR, CONCANVES & SIEVE

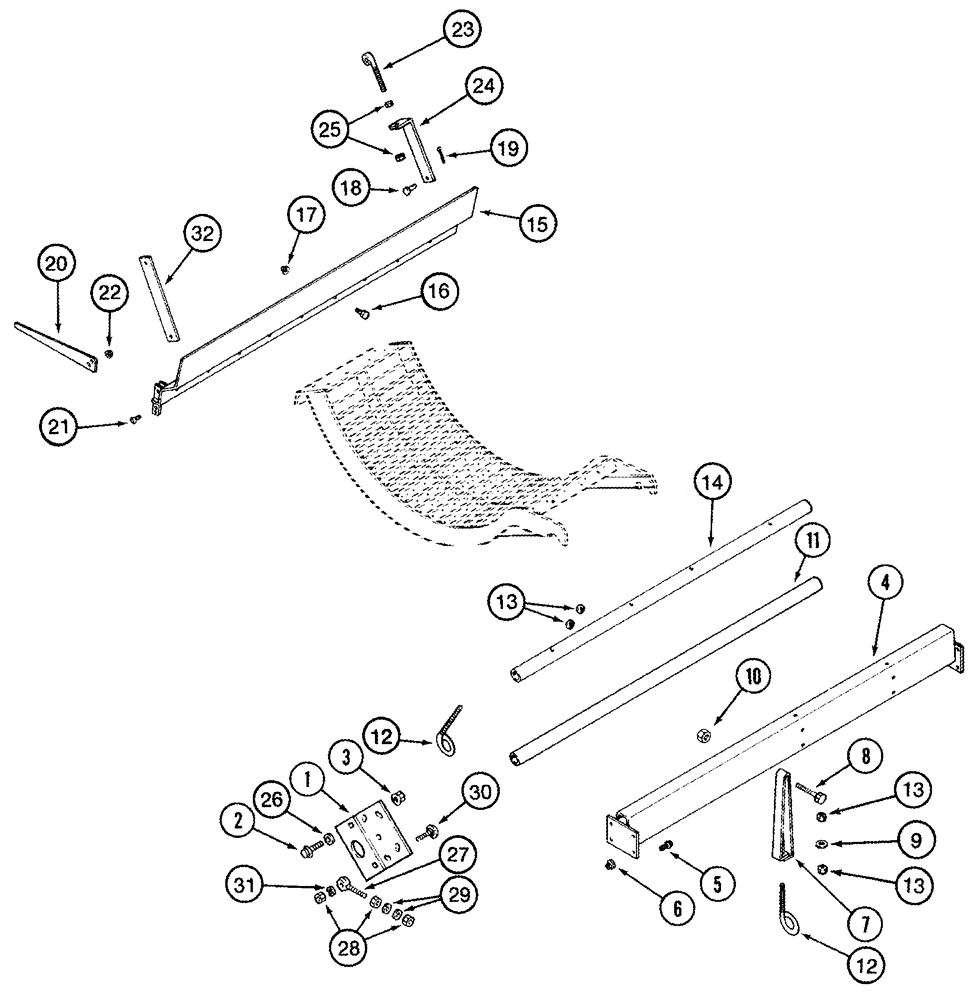

Схема запчастей Case IH 2377 - (09B-18) - CONCAVES - ANCHOR SUPPORTS (14) - ROTOR, CONCANVES & SIEVE
16
7
1
24
13
2
28
10
20
17
4
26
13
14
31
15
27
19
13
12
30
23
32
6
18
5
9
8
3
11
25
29
22
12
21

Артикул

Название

Примечание

Количество

1

1338041C2

SUPPORT

2шт.

2

1338052C1

SCREW,Hex, 5/8" - 11 x 1 1/2", W/ Scotch Grip

5/8 x 1-1/2

5шт.

3

87301493

SERRATED NUT,Flg, USR, 5/8"-11, G8

5/8; 8

5шт.

3

1338079C1

FLANGE NUT

5/8

5шт.

4

1317229C1

SUPPORT

RH

1шт.

5

1302142C1

BOLT,Flng, 1/2" - 13 x 1-1/4"

1/2 x 1-1/4

6шт.

6

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

6шт.

7

1317233C1

SUPPORT

2шт.

8

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

9

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

10

232-4118

NUT,1/2"-13, GC

2шт.

11

282766A1

SHAFT

1шт.

12

279088A1

EYEBOLT

BOLT, EYE

6шт.

13

425-108

NUT,1/2" - 13, Gr 5

12шт.

14

279086A1

SHAFT

1шт.

15

1318433C3

SUPPORT

1шт.

16

410-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8

3/8 x 1; 8

15шт.

17

231-5146

FLANGE NUT,3/8"-16

15шт.

18

439-1823

HEADED PIN,12.7mm OD x 22.23mm L

1/2 x 1-7/16; 2

2шт.

19

432-1216

COTTER PIN,3/16" x 1"

2шт.

20

1318880C1

SUPPORT

1шт.

21

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

1/4 x 3/4

2шт.

22

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

23

1317348C1

BOLT,1/2" - 13 x 114mm, Cl 5, Full Thd

1шт.

24

1318894C2

SUPPORT

1шт.

25

425-108

NUT,1/2" - 13, Gr 5

2шт.

26

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

10шт.

27

177662C2

EYEBOLT

Eye

2шт.

28

425-108

NUT,1/2" - 13, Gr 5

6шт.

29

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

30

412-824

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2", Gr 2

1/2 x 1-1/2; 2

2шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

32

1318893C2

BAR

1шт.

Выбрано товаров: 33
