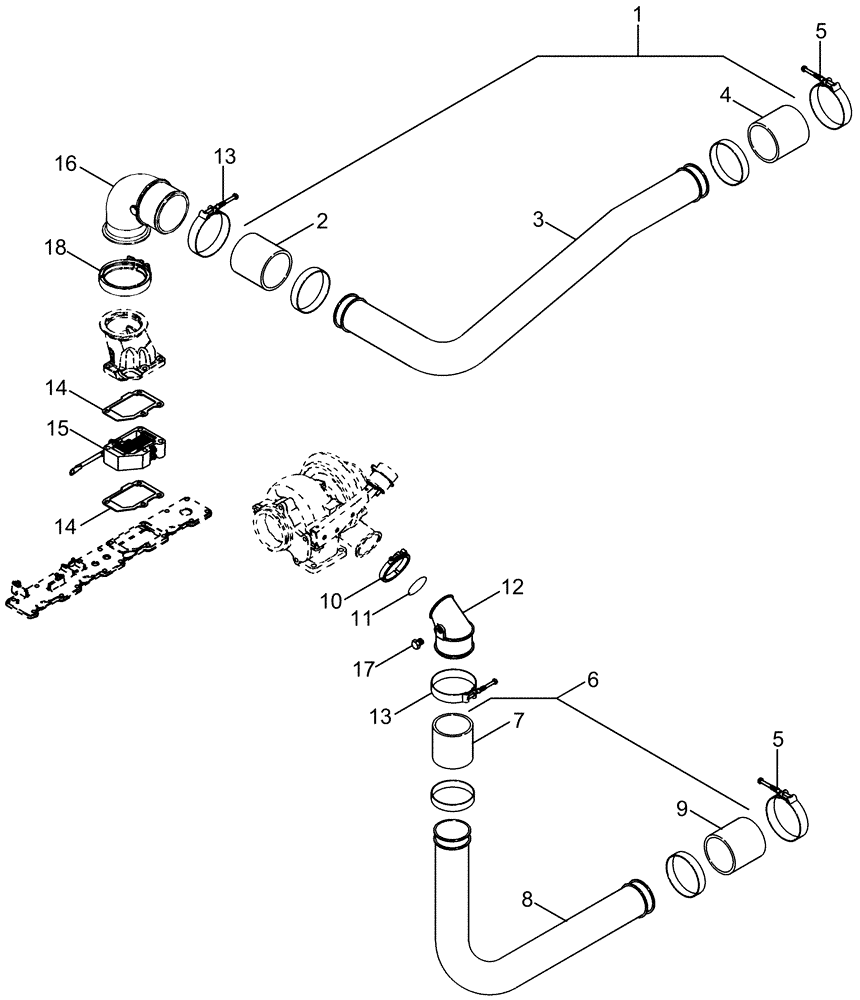

Запчасти Case IH 2377 (02-11) - INTAKE SYSTEM, CHARGE AIR COOLER - ASN HAJ0295001 (01) - ENGINE

1

87302166

TUBE

Charge Air Cooler, Cold Side, Inc. 2 - 4

1шт.

2

87402764

HOSE

3"

1шт.

3

NSS

NOT SOLD SEPARAT

Tube

1шт.

4

87402762

HOSE

4"

1шт.

5

87420676

HOSE CLAMP,108mm - 115.8mm

4 inch

2шт.

6

87302164

TUBE

Charge Air Cooler, Hot Side, Inc. 7 - 9

1шт.

7

87402763

HOSE

3"

1шт.

8

NSS

NOT SOLD SEPARAT

Tube

1шт.

9

87402761

HOSE

4"

1шт.

10

J069053

CLAMP,66.54mm ID

CLAMP, Turbo Outlet

1шт.

11

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

12

87301923

ELBOW

Turbo Outlet

1шт.

13

87421230

CLAMP,82.55mm - 90.42mm

2шт.

14

87335272

GASKET

1шт.

15

87335271

HEATER

Air Intake

1шт.

16

87350416

ELBOW

Engine Intake Manifold

1шт.

17

217-84

PLUG,Hex Hd, 1/8"-27, Brass

2шт.

18

J067979

CLAMP

1шт.
