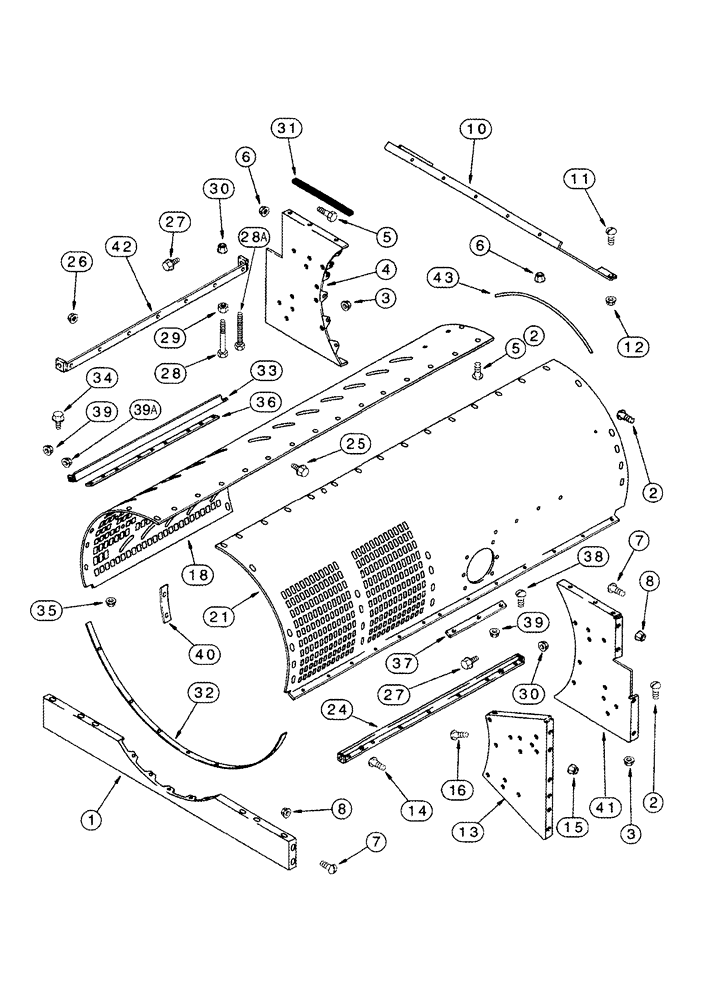

Запчасти Case IH 2377 (09B-15) - CAGE - FRONT (14) - ROTOR, CONCANVES & SIEVE

1

192385C1

SUPPORT

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

20шт.

2

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

14шт.

3

231-5146

FLANGE NUT,3/8"-16

34шт.

4

1338053C3

SUPPORT

Left Hand Front

1шт.

5

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

(5)

4шт.

5

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

8шт.

5

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

2шт.

6

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

7

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

10шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

10

176200A2

SHEET

Front

1шт.

11

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

8шт.

11

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

1шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

9шт.

13

1338042C1

SUPPORT

Right Hand, Intermediate, Adjusting, Inc. 13A

1шт.

13a

1338057C1

SUPPORT

Right Hand, Intermediate

2шт.

13b

1338052C1

SCREW,Hex, 5/8" - 11 x 1 1/2", W/ Scotch Grip

5/8 x 1-1/2

5шт.

14

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

11шт.

15

231-5146

FLANGE NUT,3/8"-16

17шт.

16

410-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4; 8

6шт.

18

1318729C5

CAGE

Rotor, Left Hand

1шт.

21

1321661C3

CAGE

Rotor, Right Hand

1шт.

24

188333C1

SUPPORT

Right Hand

1шт.

25

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

8шт.

25

139727A1

SERRATED SCREW,Truss HD, 3/8" x 1"

3/8 x 1

6шт.

25

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

26

231-5146

FLANGE NUT,3/8"-16

14шт.

27

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

1/2 x 1

2шт.

28

931008R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5, Full Thd

1/2 x 3-1/2

2шт.

28a

820430C1

BOLT,Hex, 1/2" - 13 x 5 1/2", Full Thd

1/2 x 5-1/2, If Used

2шт.

29

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

30

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

31

NSS

NOT SOLD SEPARAT

Seal, Cut From 73220C1

2шт.

32

186750C1

SUPPORT

1шт.

33

185386C1

SUPPORT

Left Hand

1шт.

34

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

3/8 x 1

15шт.

35

231-5146

FLANGE NUT,3/8"-16

1шт.

36

183323C1

STRAP

1шт.

37

186785C2

REINFORCEMENT

Front, Right Hand

1шт.

38

186917C1

SCREW

3/8 x 3/4

5шт.

39

231-5146

FLANGE NUT,3/8"-16

5шт.

39a

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

40

1318900C1

SUPPORT

Left Hand Front

1шт.

41

1338043C4

SUPPORT

Right Hand Front

1шт.

42

1309191C2

SUPPORT

Left Hand

1шт.

43

1309111C1

SEAL,19mm W x 725mm L

725 mm (28-9/16 in)

1шт.
