Запчасти Case IH 2377 (09B-14) - VANE - AFX WITH EXTENDED WEAR (14) - ROTOR, CONCANVES & SIEVE

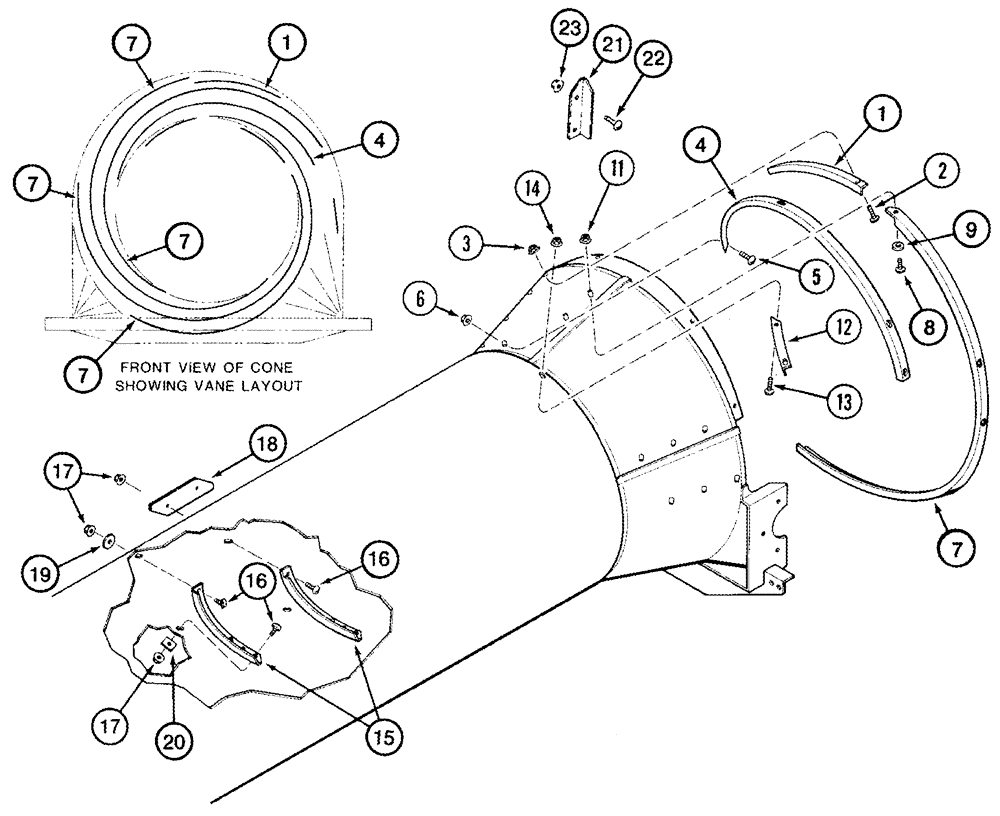

Схема запчастей Case IH 2377 - (09B-14) - VANE - AFX WITH EXTENDED WEAR (14) - ROTOR, CONCANVES & SIEVE
9
16
16
11
1
20
6
7
7
18
23
21
7
17
7
2
1
8
4
4
15
14
7
5
13
3
17
12
22
19

Артикул

Название

Примечание

Количество

1

428281A1

STIFFENER

VANE, Cone Extension

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

4

428280A2

STIFFENER

VANE, Cone Short

1шт.

5

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4-5шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4-5шт.

7

428279A2

STIFFENER

VANE, Cone Front

4шт.

8

433734A1

BOLT

1-1/8

23шт.

9

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

11/32 x 1 x 3/64

1шт.

11

231-5346

FLANGE NUT,Flg, 3/8"-16

Flange, 3/4

52шт.

12

411517A2

STIFFENER

VANE, Transport Extension

3шт.

13

139727A1

SERRATED SCREW,Truss HD, 3/8" x 1"

3/8 x 1

3шт.

14

231-5146

FLANGE NUT,3/8"-16

Transport

3шт.

15

186075C2

SUPPORT TUBE

VANE, Transport

13шт.

16

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

39шт.

17

231-5146

FLANGE NUT,3/8"-16

39шт.

18

1318581C1

PLATE

6шт.

19

55805C1

WASHER,11.13mm ID x 63.5mm OD x 4.55mm Thk

13/32 x 2-1/2 x 5/32

11шт.

20

570052R1

SQ HOLE WASHER,11mm ID x 38mm OD x 4.8mm Thk

13/32 x 1-1/2 x 3/16

2шт.

21

428282A1

STIFFENER

VANE, Pocket

1шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

437319A1

KIT

AFX Cone Vanes, 3/16, Inc. 1, 4, 7, 8, 11, 21

1шт.

Выбрано товаров: 23
