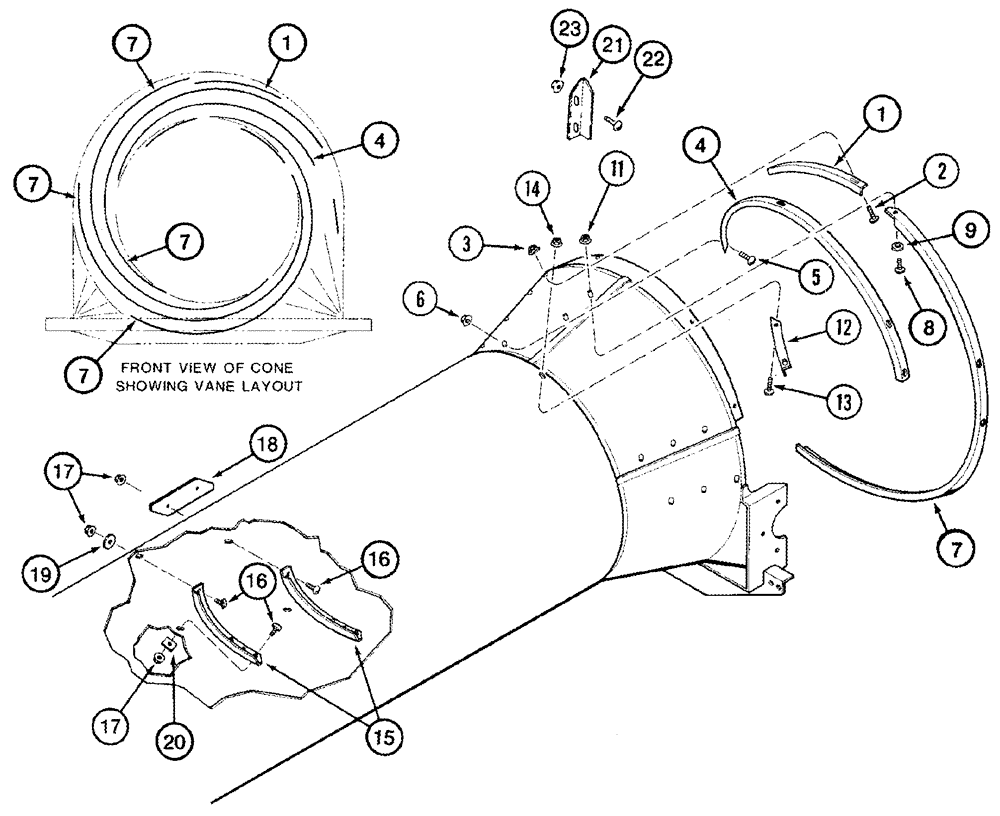

Запчасти Case IH 2377 (09B-13) - VANE - EXTENDED WEAR (14) - ROTOR, CONCANVES & SIEVE

1

347913A1

VANE

VANE, Cone Extension

1шт.

2

433734A1

BOLT

T-Type

2шт.

3

231-5346

FLANGE NUT,Flg, 3/8"-16

2шт.

4

418655A2

STIFFENER

VANE, Cone Short

1шт.

5

433734A1

BOLT

T-Type

8шт.

6

231-5346

FLANGE NUT,Flg, 3/8"-16

8шт.

7

418654A2

VANE

VANE, Cone Front

4шт.

8

433734A1

BOLT

T-Type

40-52шт.

9

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

11/32 x 1 x 3/64

1шт.

11

231-5346

FLANGE NUT,Flg, 3/8"-16

40-52шт.

12

411518A2

VANE

VANE, Transport Short Extension

3шт.

13

139727A1

SERRATED SCREW,Truss HD, 3/8" x 1"

3/8 x 1

10шт.

14

231-5146

FLANGE NUT,3/8"-16

6шт.

15

347917A1

VANE

VANE, Transport

13шт.

16

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

Tee

39шт.

17

231-5146

FLANGE NUT,3/8"-16

39шт.

18

1318581C1

PLATE

6шт.

19

55805C1

WASHER,11.13mm ID x 63.5mm OD x 4.55mm Thk

13/32 x 2-1/2 x 5/32

11шт.

20

570052R1

SQ HOLE WASHER,11mm ID x 38mm OD x 4.8mm Thk

13/32 x 1-1/2 x 3/16

2шт.

21

347918A1

STIFFENER

Vane, Cone Pocket

1шт.

22

433734A1

BOLT

2шт.

23

231-5346

FLANGE NUT,Flg, 3/8"-16

2шт.
