Запчасти Case IH 2377 (09B-11) - ROTOR INSTALLATION PARTS (14) - ROTOR, CONCANVES & SIEVE

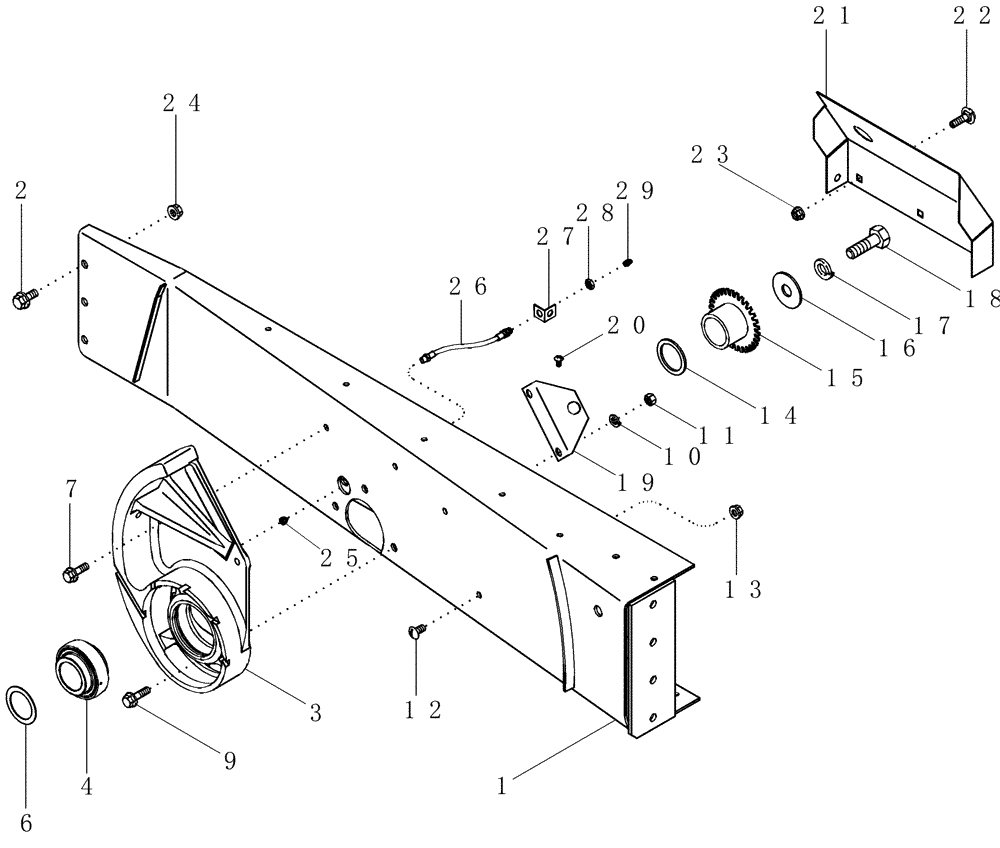

Схема запчастей Case IH 2377 - (09B-11) - ROTOR INSTALLATION PARTS (14) - ROTOR, CONCANVES & SIEVE
9
12
1
4
17
22
20
28
14
3
2
24
13
18
7
15
10
6
25
27
21
29
11
26
16
19
23

Артикул

Название

Примечание

Количество

1

193384C8

SUPPORT

Front Bearing, Standard Wear

1шт.

1

249247A1

SUPPORT

Front Bearing, Extended Wear

1шт.

2

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

(5)

4шт.

293431A3

BEARING HOUSING

Front Bearing, Inc. 3 - 5

1шт.

3

253439A3

BEARING HOUSING

Rotor Front Bearing

1шт.

4

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

1шт.

5

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Not Shown)

2шт.

6

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

2 x 2-3/4 x 1/32

1шт.

7

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4

2шт.

9

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

11

425-108

NUT,1/2" - 13, Gr 5

3шт.

12

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

2шт.

13

231-5146

FLANGE NUT,3/8"-16

(5)

4шт.

14

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

25/32 x 2-1/2 x 1/4

1шт.

15

1979965C1

ROTOR

Magnetic Speed Pickup

1шт.

16

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

2-1/32 x 2-3/4 x 1/16

5шт.

17

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

18

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

3/4 x 1-3/4; 2

1шт.

19

1301239C1

BRACKET

Cylinder Tachometer

1шт.

20

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

2шт.

21

182845C5

SHIELD

RPM Sensor

1шт.

22

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

23

131-872

SPRING NUT,Ret, 3/8"-16

3/8

3шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1/2

8шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

Hose

1шт.

26

937781R92

HOSE,3.02mm ID x 686mm L

1шт.

27

419744A1

BRACKET

1шт.

28

F53473

LOCK NUT,1/8-27 NPSM

1/8

1шт.

29

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

Выбрано товаров: 30
