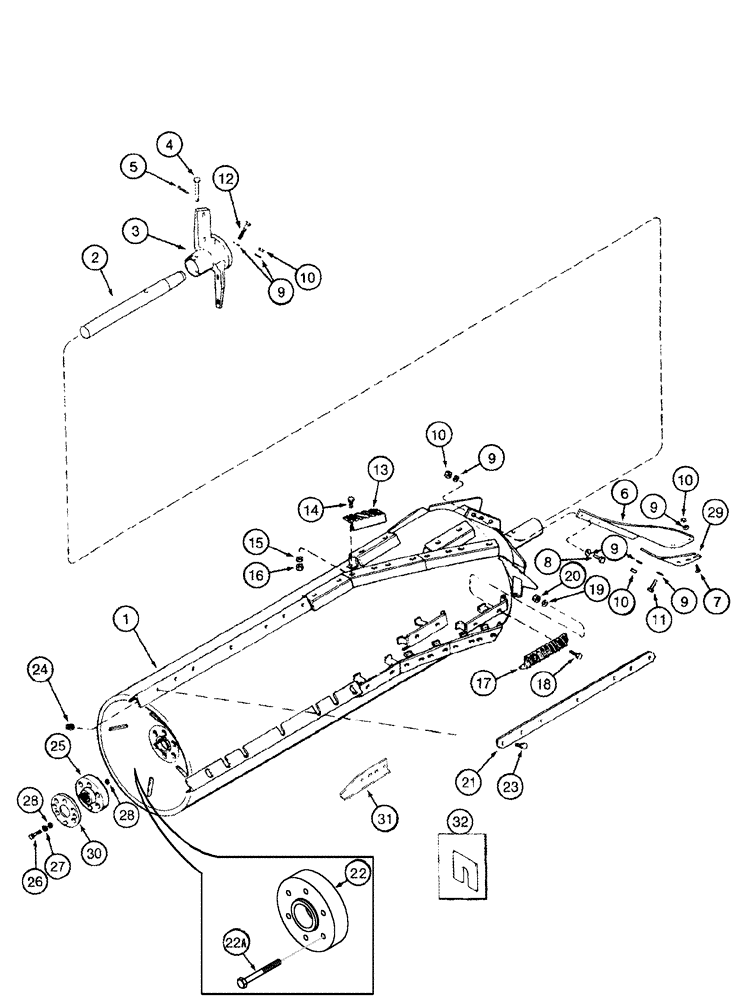

Запчасти Case IH 2377 (09B-08) - ROTOR ASSY - CORN AND GRAIN (14) - ROTOR, CONCANVES & SIEVE

256608A1

ROTOR

Standard Grain, Inc. 1 - 21, 23 - 30

1шт.

Without Chrome Bars

1шт.

256614A1

ROTOR

Standard Grain, With Chrome Bars, Inc. 1 - 21, 23 - 30

1шт.

With Chrome Bars

1шт.

1

NSS

NOT SOLD SEPARAT

Rotor

1шт.

2

191545C2

SHAFT

1шт.

3

184460C1

IMPELLER

1шт.

4

439-51272

HEADED PIN,3/4" x 4 1/2", G5

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

1957445C3

SET OF BLADES

Rotor Blade, Inc. 6 - 12

1шт.

6

1309114C2

BLADE

Rotor

2шт.

7

87301496

HEX SOC SCREW,Flat Hd, CSK, 1/2" - 13 x 1 1/2"

1/2 x 1-1/2

6шт.

8

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

6шт.

9

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

17/32 x 1-1/4 x 3/16

26шт.

10

199528A1

NUT

1/2; 8

16шт.

11

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

2шт.

12

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

13

1308830C2

RASP BAR

Rasp

16шт.

Used with 256608A1

1шт.

13

1324581C3

RASP BAR

Rasp, Chrome

16шт.

Used with 256614A1

1шт.

13

1994892C1

RASP BAR

Rasp, Smooth, Helical

16шт.

14

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

32шт.

15

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

13/32 x 1-1/8 x 1/8

32шт.

16

232-4146

NUT,3/8"-16, GC

32шт.

17

1308668C1

RASP BAR

Rasp, Straight

12шт.

Used with 256608A1

1шт.

17

1324582C2

RASP BAR

Rasp, Straight, Chrome

12шт.

Used with 256614A1

1шт.

17

1994890C1

RASP BAR

Rasp, Smooth, Straight

4шт.

18

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

24шт.

19

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

13/32 x 1-1/8 x 1/8

24шт.

20

232-4146

NUT,3/8"-16, GC

24шт.

21

1303038C2

BAR

Rear, Straight

4шт.

Used with 256608A1

1шт.

21

1324580C2

BAR

Rear, Straight, Chrome

4шт.

Used with 256614A1

1шт.

86990684

KIT

Kit, Rotor Drive Spacer, Inc. 22, 22A

1шт.

22

443256A1

SPACER

1шт.

22a

326-880

BOLT,Hex, 1/2" - 13 x 5", Gr 8

6шт.

23

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

28шт.

24

231-5146

FLANGE NUT,3/8"-16

28шт.

25

1345307C1

COUPLING

Inc. 25A

1шт.

25

87406731

COUPLING

Inc.25A

1шт.

25a

1345453C1

RUBBER INSULATOR

6шт.

26

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

6шт.

27

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

17/32 x 1-1/4 x 3/16

6шт.

28

195-81030

WASHER

17/32 x 1-1/2 x 3/16

6шт.

29

1309186C3

SUPPORT

Wear

2шт.

30

221189A1

SPACER

1шт.

31

183335C3

SUPPORT

Extension, Rotor Rear Bar

4шт.

1324208C1

SHIM KIT

Inc. 32

1шт.

32

NSS

NOT SOLD SEPARAT

Shim, 0.254 mm (0.010 in)

28шт.

32

NSS

NOT SOLD SEPARAT

Shim, 0.762 mm (0.030 in)

28шт.

32

NSS

NOT SOLD SEPARAT

Shim, 1.346 mm (0.053 in)

28шт.

32

NSS

NOT SOLD SEPARAT

Shim, 2.362 mm (0.093 in)

28шт.
