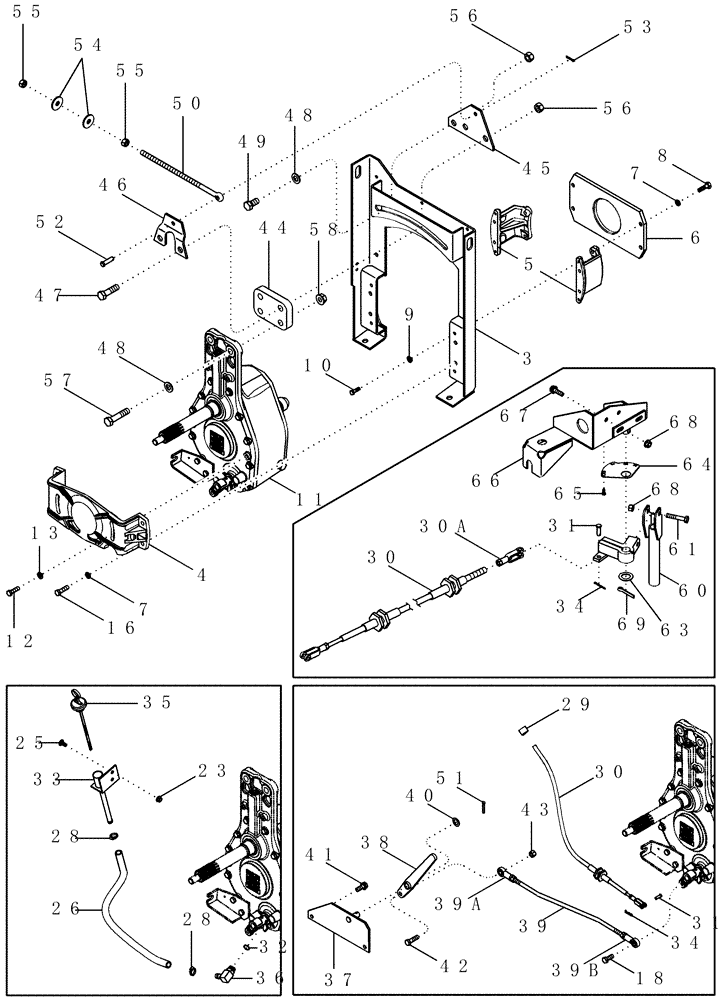

Запчасти Case IH 2377 (09B-01) - ROTOR DRIVE - GEARBOX MOUNTING - BSN HAJ0295001 (14) - ROTOR, CONCANVES & SIEVE

3

86992365

SUPPORT

Rotor Gearbox

1шт.

4

194058C1

SUPPORT

Rear

1шт.

5

181314C2

BLOCK

Front

2шт.

6

181315C1

PLATE

Front Support

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

9

492-11038

LOCK WASHER,3/8"

4шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

11

87401155

GEARBOX

1шт.

See Figure 09B-05

1шт.

12

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

13

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

16

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

25

135270

SERRATED SCREW,5/16" - 18 x 3/4"

2шт.

26

194043C1

HYDRAULIC HOSE,12.70 mm ID x 483.00 mm

1шт.

27

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

1шт.

28

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

2шт.

29

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

30

236859A2

CABLE,3810mm L

Shift, Inc. 30A

1шт.

30a

213-325

CLEVIS,5/16"

5/16 NF

2шт.

31

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

33

193946C1

TUBE,12.7 mm OD

1шт.

34

432-612

COTTER PIN,3/32" x 3/4"

2шт.

35

194066C91

DIPSTICK

Inc. 35A

1шт.

35a

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3/4 x 1

2шт.

36

188272C1

ELBOW

90 deg

1шт.

37

87400381

GUIDE

Shift Handle

1шт.

38

86991655

HANDLE

1шт.

39

86991658

ROD

Inc. 39A, 39B

1шт.

39a

86582884

BALL JOINT

2шт.

39b

280963

NUT,Nut, 1/2-20 GR 5 ZND

2шт.

40

495-81037

WASHER,25/32" x 1 1/4" x .060"

1шт.

41

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

42

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

43

232-4118

NUT,1/2"-13, GC

1шт.

44

86991660

PLATE

Gearbox Spacer

1шт.

45

276078A2

PLATE

1шт.

46

282906A1

STRAP

1шт.

47

426-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

2шт.

48

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

3шт.

49

426-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

3/4 x 1-1/2; 8

1шт.

50

188143C1

EYEBOLT

Eyebolt

1шт.

51

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

52

439-5832

HEADED PIN,12.7mm OD x 50.8mm L

1/2 x 2

1шт.

53

432-1216

COTTER PIN,3/16" x 1"

1шт.

54

495-81030

WASHER,21/32" x 2" x .179"

21/32 x 2 x 3/16

2шт.

55

425-1010

NUT,5/8"-11, G5

2шт.

56

429-1012

NUT,3/4"-10, G8

3шт.

57

426-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

3/4 x 3-1/2; 8

2шт.

58

232-53112

FLANGE NUT,Flg, 3/4"-10

2шт.

59

254982A2

SHAFT

3 Speed Gearbox

1шт.

60

276073A2

HANDLE

3 Speed Rotor Shift

1шт.

61

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

62

280736

NUT,5/16"-18, GC

1шт.

63

495-81039

WASHER,25/32" x 1 1/4" x .120"

25/32 x 1-1/4 x 1/8

1шт.

64

255651A5

PLATE

Shift Indicator

1шт.

65

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

1шт.

66

253851A3

SUPPORT

Front Shift

1шт.

67

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

68

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

69

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.
