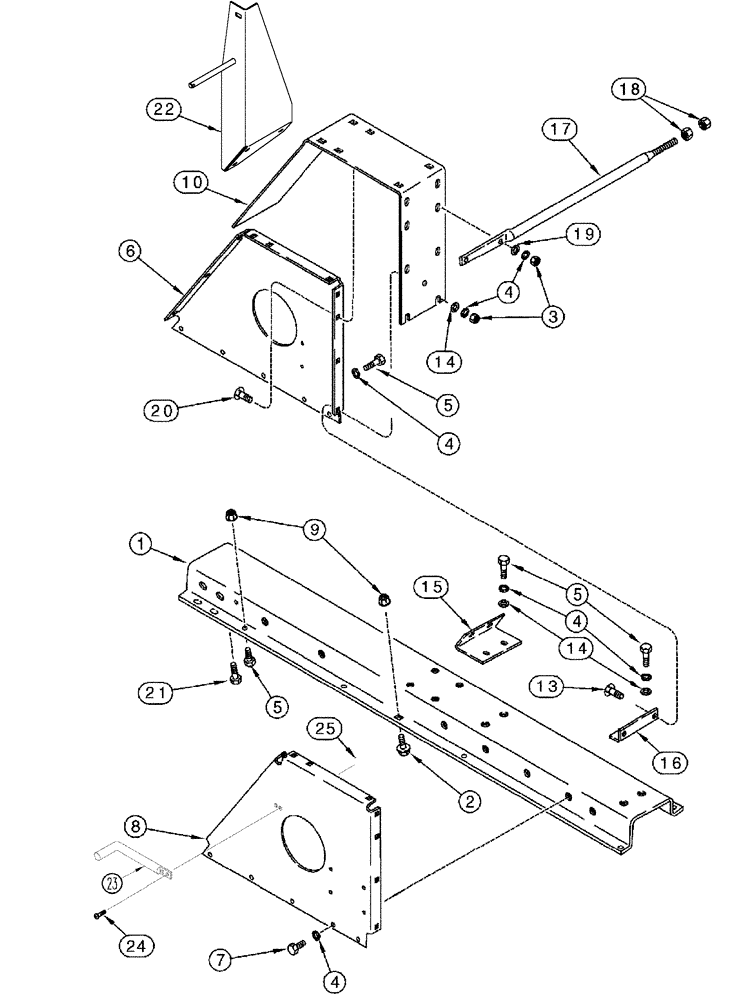

Запчасти Case IH 2377 (09A-05) - SEPARATOR - JACKSHAFT SUPPORT (13) - FEEDER

1

112454A5

SUPPORT

Jackshaft and Auxiliary Pump

1шт.

2

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

1/2 x 1

4шт.

3

425-108

NUT,1/2" - 13, Gr 5

14шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

18шт.

5

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

12шт.

6

181175C2

SUPPORT

LH

1шт.

7

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

5шт.

8

181176C2

SUPPORT

RH

1шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

7шт.

10

181177C2

SUPPORT

Upper

1шт.

13

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

12шт.

14

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

17/32 x 1-1/4 x 7/64

4шт.

15

181178C1

SUPPORT

1шт.

16

181172C1

SUPPORT

Rear

1шт.

17

443257A1

THREADED ROD

Jackshaft Support

1шт.

18

425-1110

NUT,5/8"-18, G5

2шт.

19

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

17/32 x 1-1/4 x 7/64

2шт.

20

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2

2шт.

21

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

22

398584A1

SUPPORT

Separator Drive Clutched

1шт.

23

194901C1

ROD

Separator Guide

1шт.

24

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

2шт.

25

231-5146

FLANGE NUT,3/8"-16

2шт.
