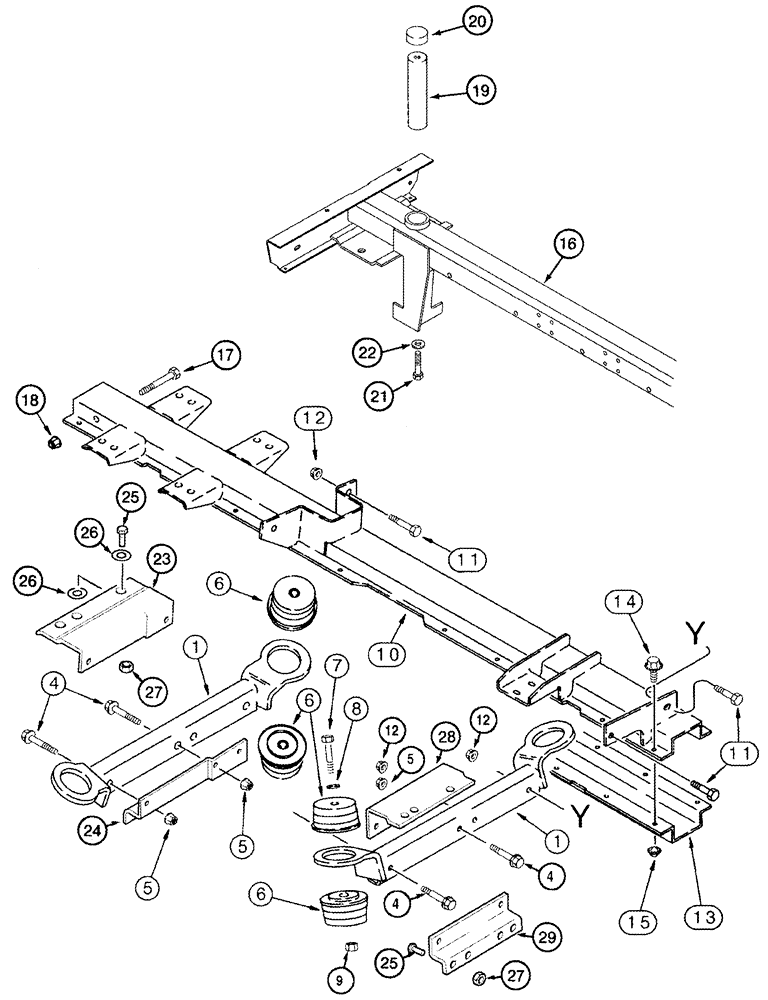

Запчасти Case IH 2377 (09H-15) - PLATFORM SUPPORT - LADDER PIVOT (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
112052A1
SUPPORT
2шт.
5
829-2412
FLANGE NUT,M12 x 1.75, Flg, Cl 10
4шт.
6
123566A1
ISOLATOR
8шт.
8
CASD35009
WASHER,16.67mm ID x 63.5mm OD
4шт.
9
232-41110
NUT,5/8"-11, GC
4шт.
10
143520A2
SUPPORT
Left Hand
1шт.
11
857-12080
BOLT,Hvy Hex, M12 x 80mm, Cl 10.9
3шт.
12
829-2412
FLANGE NUT,M12 x 1.75, Flg, Cl 10
3шт.
13
182648A1
SUPPORT
Left Hand
1шт.
14
409-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
23шт.
15
231-5146
FLANGE NUT,3/8"-16
23шт.
16
324547A1
BEAM
Left Hand, Inc. 16A
1шт.
16a
191129A1
WARNING DECAL
Not Illustrated
1шт.
See Figure 09H-19, REF 13
1шт.
17
413-880
BOLT,Hex, 1/2" - 13 x 5", Gr 5
1/2 x 5
1шт.
18
231-5348
FLANGE NUT,Flg, 1/2"-13
1шт.
19
320946A1
PIN,50.81mm OD x 311.2mm L
1шт.
20
324464A1
PLUG
1шт.
21
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
1шт.
22
495-21044
WASHER,3/8"
(7/16 x 1 x 5/64)
1шт.
23
236272A3
BRACKET
Left Hand, Upper
1шт.
23
236272A3
BRACKET
Left Hand, Upper, Serial Range: -HAJ0295001
1шт.
23
87378783
BRACKET
PLATE Left Hand, Upper, Start Serial: HAJ0295001
1шт.
24
233243A3
SUPPORT
Left Hand, Lower, Serial Range: -HAJ0295001
1шт.
24
87379086
SUPPORT
PLATE Left Hand, Lower, Start Serial: HAJ0295001
1шт.
24
233243A3
SUPPORT
Left Hand, Lower
1шт.
25
627-12040
BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd
4шт.
25
627-12035
BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd
6шт.
26
496-21053
WASHER,17/32" x 1 1/16" x .134"
12шт.
27
829-2412
FLANGE NUT,M12 x 1.75, Flg, Cl 10
10шт.
28
236274A2
BRACKET
Right Hand, Upper, Serial Range: -HAJ0295001
1шт.
28
87378782
BRACKET
PLATE, LARGE Right Hand, Upper, Start Serial: HAJ0295001
1шт.
29
233246A3
SUPPORT
Right Hand, Lower, Serial Range: -HAJ0295001
1шт.
29
87379086
SUPPORT
SUPPORT Right Hand, Lower, Start Serial: HAJ0295001
1шт.
Выбрано товаров: 36
