Запчасти Case IH 2377 (09H-07) - DOOR - SHIELDS - LEFT HAND (12) - CHASSIS

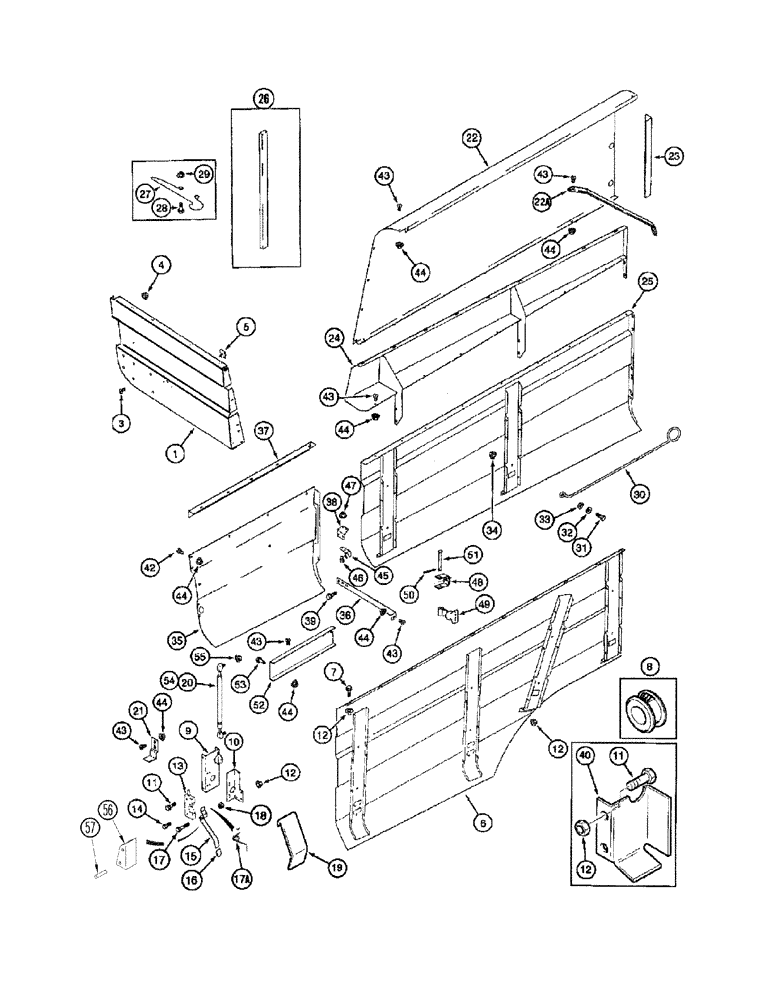

Схема запчастей Case IH 2377 - (09H-07) - DOOR - SHIELDS - LEFT HAND (12) - CHASSIS
43
44
44
34
22a
15
30
3
31
51
35
52
46
39
19
44
9
24
43
1
12
10
17a
37
44
14
12
32
12
13
57
54
44
26
48
7
36
38
5
11
6
11
16
27
43
29
8
18
49
20
43
47
44
45
53
17
12
40
22
33
23
43
44
21
28
50
42
43
25
56
55
4

Артикул

Название

Примечание

Количество

1

403280A1

SUPPORT

Tail Lamp, Inc. Decal 1546335C1

1шт.

See Figure 09H-19, REF 16

1шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

5шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

5

488837C1

SPRING NUT

5/16

3шт.

6

139774A5

DOOR

Left Hand

1шт.

7

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

9шт.

8

353-462

BUSHING,12.7mm ID x 15.88mm OD x mm L

Australia Only

1шт.

9

175605A2

SUPPORT

Lower

1шт.

10

139680A3

SUPPORT

Lower Left Hand

1шт.

11

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

13

141224A1

LATCH

1шт.

14

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

15

182204A1

LEVER

1шт.

16

176203A2

PROTECTOR

1шт.

17

185856C1

ADJUSTMENT SCREW

5/16 x 2

3шт.

17a

284171A1

SPRING

1шт.

18

425-145

JAM NUT,Jam, 5/16"-18, G5

3шт.

19

182582A2

LEVER

Australia Only

1шт.

20

140311A3

GAS STRUT

1шт.

21

143442A3

SUPPORT

Front

1шт.

22

140369A3

SHIELD

Rear, Upper Left Hand

1шт.

22a

223711A2

SUPPORT

Rear, Upper Left Hand

1шт.

23

140514A1

SUPPORT

Upper Left Hand

1шт.

24

140339A4

SHIELD

Rear, Upper Left Hand

1шт.

25

140840A3

SHIELD

Rear, Lower Left Hand

1шт.

26

187885C1

SEALING STRIP

660 mm (26 in), Cut From 87281C1

3шт.

26

187884C1

SEALING STRIP,50mm L

51 mm (2"), Cut from 187885C1

1шт.

27

176438A1

STEM

1шт.

28

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

29

231-5146

FLANGE NUT,3/8"-16

2шт.

30

176953A3

PROP

Left Hand Rear

1шт.

31

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

32

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

2шт.

33

495-81143

WASHER,13/32" x 1 1/2" x .120"

2шт.

34

231-5146

FLANGE NUT,3/8"-16

2шт.

35

398203A1

SHIELD

Left Hand Rear

1шт.

36

129694A1

SUPPORT

Lower Left Hand, Rear

1шт.

37

183368A2

SUPPORT

Left Hand Rear

1шт.

38

130184A2

BRACKET

1шт.

39

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

7шт.

40

183475A1

COVER

Australia Only

1шт.

42

190553A1

SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

5/16 x 3/4

9шт.

43

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

44

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

45

L105124

LATCH HOOK

1шт.

46

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

47

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

48

188103C2

BRACKET

4шт.

49

494307C1

LATCH

4шт.

50

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

50a

439-1412

HEADED PIN,1/4" x 3/4"

1/4 x 3/4; 2, Not Illustrated

4шт.

51

439-1424

HEADED PIN,6.35mm OD x 38.1mm L

4шт.

52

1319563C1

SUPPORT

1шт.

53

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

54

87025782

STUD

2шт.

55

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

56

432278A1

LEVER

Latch Release

1шт.

57

432307A1

PIN,11.11mm OD x 43mm L

1шт.

58

51-13112

STUD

5/16 x 3/4, Not Illustrated

1шт.

59

229578A1

PLUG

Not Illustrated

1шт.

Выбрано товаров: 62
